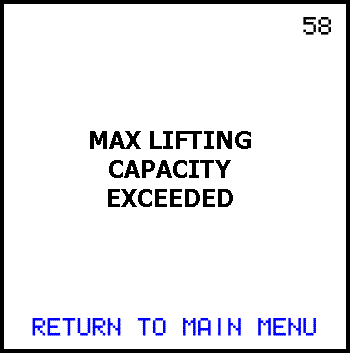

Screen Image

Explanation

This controls the maximum lifting capacity allowed.The message is displayed if the operator attempts to lift a load that is greater than the maximum allowed load.

Causes

• The operator has attempted to lift a load heavier than the allowed load
• The maximum rated load has been set too low
• The load pressure sensor is faulty

Operator Actions

• Lift a lighter load
• Use override code to continue operation
• Request service

Service Tasks

• Pressure sensor may be faulty.
• Angle sensors not calibrated.
