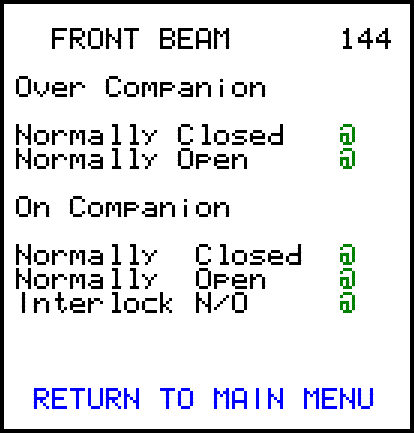

Screen Image
144 = FRONT CRANE
145 = REAR CRANE
Explanation
Diagnostic display of Bridge Leg sensors.
Causes
Operator has selected this screen
Operator Actions
Use the information displayed to diagnose problems
Service Tasks
None
