Valid modes are, in clockwise order from OFF position:
Off
Traverse
Stabiliser
Arm
Off-Side Stabiliser
Bending / Quattro Leg
Top Lift Frame
Causes
Faulty switch
Operator Actions
It is not possible to the override code to continue operation. Only the manual override button can be used to manually complete any crane movements.
Request service
Service Tasks

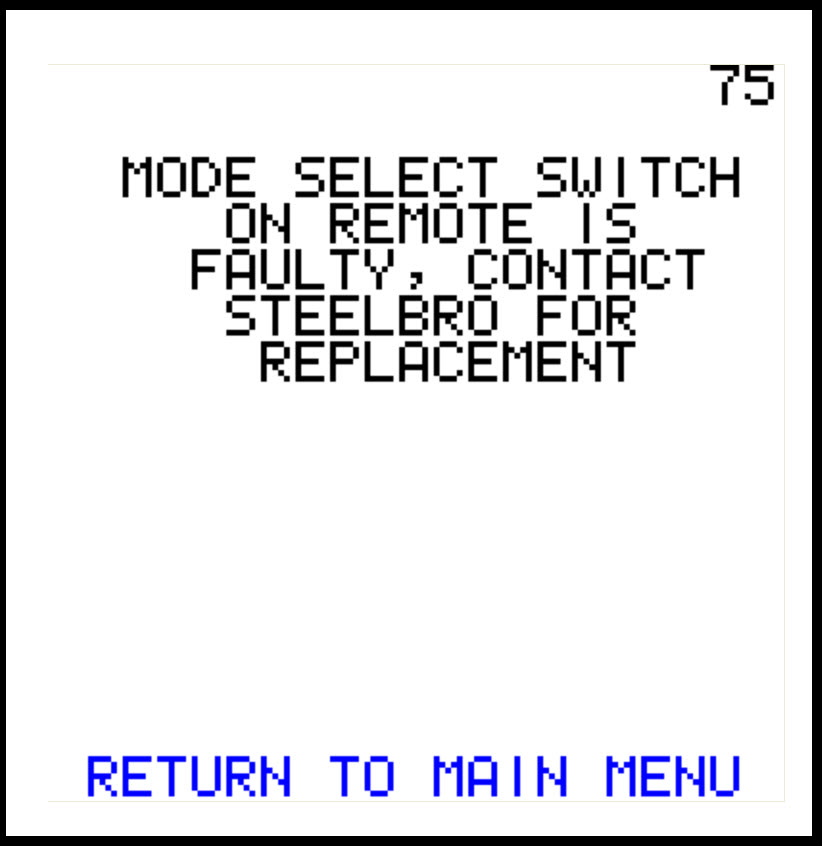

Go to VIEW JOYSTICKS on the Main Menu and check the mode changes as the mode switch on the remote is rotated. The switch has a stop pin that prevents unused modes being selected
If the modes displayed are not in the order listed above then the switch is faulty and should be replaced
