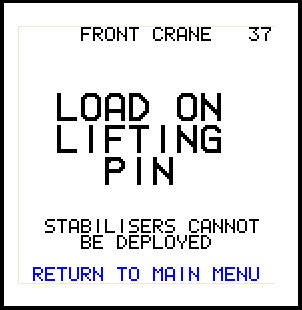

Screen Image

37 = FRONT CRANE

38 = REAR CRANE

Explanation

Stabiliser mode has been entered while there is still load on the lifting pin (G-Pin).

Causes

• The load has not been fully released from the arms
• The top arm pressure sensor is faulty

Operator Actions

• Check that the load has been released from the arms and retry stabiliser mode.
• Use override code to continue operation
• Request service

Service Tasks

• Check the top arm pressure sensor value by going to VIEW SENSOR VALUES then FRONT or REAR ANGLE SENSORS. At the bottom of the page the pressure in the top arm cylinder will be displayed. With no load on the G-Pin the pressure should be less than 20bar
• If the reading is more than 20bar regardless of any loading on the G-Pin then replace the pressure sensor
• When replacing the sensor make sure that the top arm is fully folded down and that all hydraulic pressure in the cylinder is released by using the manual lever on the Danfoss PVG valve. Wear eye protection.
