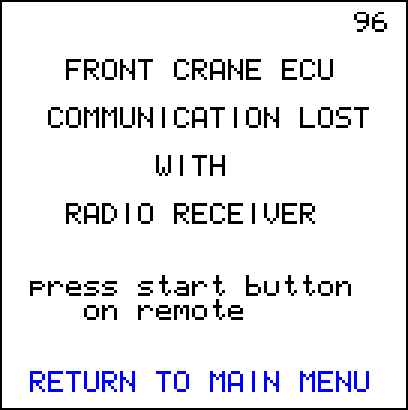

Screen Image

96 = FRONT ECU

97 = REAR ECU

Explanation

The front or rear crane ECU is not receiving any joystick data from the radio receiver via the CANbus

Causes

• Faulty radio remote transmitter
• Faulty CANbus
• Faulty radio receiver

Operator Actions

• Press the Start button on the remote to try to restart data transmission.
• If data transmission is not restarted, it is not possible to the override code to continue operation. Only the manual override button can be used to manually complete any crane movements.
• Request service

Service Tasks

• Go to VIEW JOYSTICKS to confirm that there is no communication
• Check the integrity of the CANbus
• Check the state of the LED indicators inside the radio receiver
