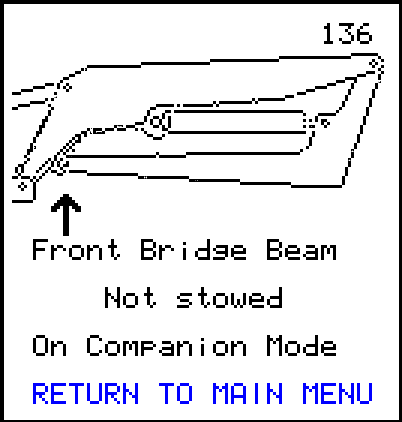

Screen Image

136 = FRONT CRANE

137 = REAR CRANE

Explanation

The Outer Leg of the Bridge Leg Stabiliser is not stowed properly while the Bridge Leg is being used in On Companion mode.

Causes

• Outer Leg not fully stowed when On Companion sensor indicates Outer Leg pressure plate is in contact with companion vehicle
• Bridge Beam base sensor is faulty or requires adjustment if Outer Leg appears fully stowed against Bridge Beam base
• Outer Leg pressure plate sensor is faulty if Outer Leg is NOT resting on deck of companion vehicle
• Wiring fault

Operator Actions

• Ensure leg is fully stowed and use override code if the Outer Leg is stowed properly
• Request service

Service Tasks

• If alarm is present when On Companion sensor is NOT in contact with the deck of the companion vehicle, ensure On Companion sensor plate is not stuck down and that the On Companion sensor is working properly
• The Bridge Beam base sensor may need adjustment or the Outer Leg foot may be damaged and preventing contact with the sensor
• If adjustment does not clear the fault then replace the sensor switch.
