Bottom Arm Angle Sensor Error F19 R20

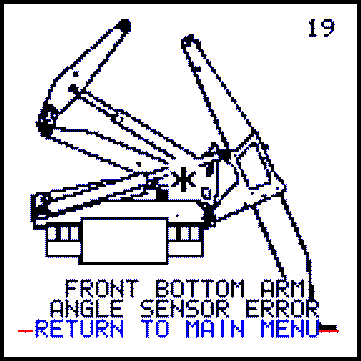

Screen Image



19 = FRONT CRANE

20 = REAR CRANE

19 Automatic Fault Detection

Explanation

Fault detected between Crane Junction Box and Bottom Arm Angle Sensor

The Bottom Arm Angle Sensor measures the angle of the bottom arm.

Causes
  • Damaged sensor cable or connector plug
  • Moisture in sensor connecting plug
  • Faulty sensor

Operator Actions
  • Check connector plug firmly seated and not damaged
  • Use override code to continue operation
  • Request service

Service Tasks
  • Check sensor cable and connector plug.
  • Replace the sensor. The orientation of the sensor is important and the cable should point upwards. Recalibrate using procedure SL0005.
  • Check the calibration by hanging a plumb bob from the D-Pin and position the bottom arm in the vertical position so that the D-Pin is vertical to the A-Pin.
  • With the diesel engine not running but SMARTlift switched on, go to Manufacturers Area – View Pin Distances-View Front or Rear Pin Distances-View Horizontal Distance AD. The distance should be zero +/- 10mm.
  • Remember, all angle sensors are the same component so it is possible to swap sensors in order to help diagnose faulty wiring or a faulty sensor. Just remember to recalibrate any sensor that is moved!
