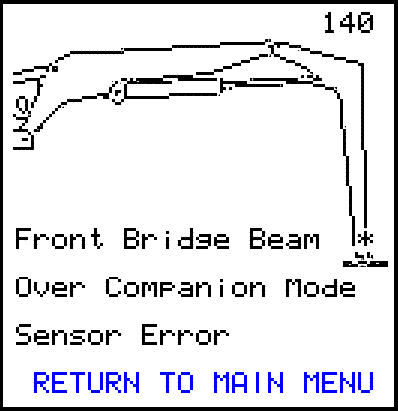

Screen Image
140 = FRONT CRANE
141 = REAR CRANE
|
|
Explanation
|
The Outer Leg sensor at the foot may be faulty or requires adjustment or replacement.
|
Causes
|
- Outer Leg sensor at the foot is faulty or requires adjustment
- Wiring fault
|
Operator Actions
|
- Use override code to continue operation if Outer Leg foot is in contact with ground and the Outer Leg angle to the vertical is within plus or minus 10 degrees
- Request service
|
Service Tasks
|
- Inspect and if necessary, adjust Outer Leg foot sensor.
- If the sensor is damaged or adjustment does not clear the fault then replace the sensor switch.
|
