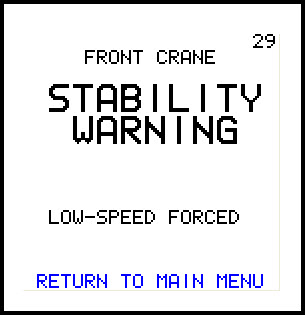

Screen Image

29 = FRONT CRANE

32 = REAR CRANE

Explanation

The arms have been extended within 250mm of the edge of the safe working envelope on the Stabiliser side of the Sidelifter.

• If high speed mode is selected then low speed is automatically activated
• High speed can be re-entered only if the arm extension is reduced and both joysticks are in the neutral position

Causes

• Arm extension to great for safe working
• Stabiliser magnetic counter error
• Top arm pressure sensor error

Operator Actions

• Use low speed mode if safe to do so.
• Reduce arm extension
• Check sensor has not come loose
• Use override code to continue operation
• Request service

Service Tasks

• Check that the Stabiliser Extension measurement is operating correctly
• Check the calibration of the Stabiliser, Bottom and Top Arm Angle Sensors. Do this by hanging a plumb bob between pins A&D, D&G and H&L as described in the calibration procedure SL0005 and then go to the MANUFACTURERS AREA then VIEW PIN DISTANCES and check that the HORIZONTAL DISTANCES, AD, DG and HL should be zero mm (±10mm) when the plumb bob is lined up
