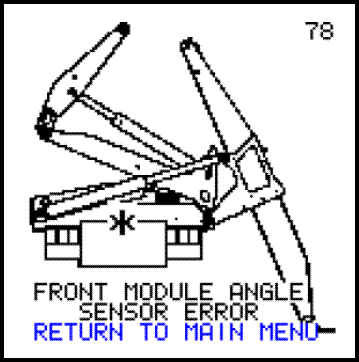

Screen Image

78 = FRONT CRANE

79 = REAR CRANE

Explanation

Fault detected between Crane Junction Box and a module angle sensor

The module angle sensor measures the elevation and camber of the trailer.

Causes

• Damaged sensor cable or connector plug
• Moisture in sensor connecting plug
• Faulty sensor

Operator Actions

• Check connector plug firmly seated and not damaged
• Use override code to continue operation
• Request service

Service Tasks

• Check sensor cable and connector plug.
• Replace the sensor. The orientation of the sensor is important and the cable should point upwards. Recalibrate using procedure SL0005.
• With the trailer parked on level ground the elevation should be 0° and the camber should be 0°. These values can be seen at View Sensor Values
• Remember, all angle sensors are the same component so it is possible to swap sensors in order to help diagnose faulty wiring or a faulty sensor. Just remember to recalibrate any sensor that is moved!
