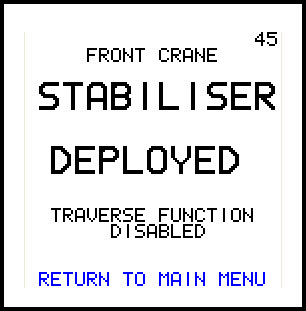

Screen Image

45 = FRONT CRANE

44 = REAR CRANE

Explanation

Operator has entered traverse mode without the stabiliser first being fully retracted

Causes

• Stabiliser not fully retracted
• Faulty foot down microswitch sensor or connection

Operator Actions

• Fully retract the stabiliser then retry entering traverse mode
• Use override code to continue operation
• Request service

Service Tasks

• On the LCD screen go to VIEW SENSOR VALUES, then FRONT (or REAR) STABILISER EXTENSION SENSORS. Check that the foot down micro switch values change when the foot is placed on the ground and lifted off the ground as shown in the table below.

• If the stabiliser is fully folded and retracted, but the microswitch indicates that the foot is on the ground, check and if necessary adjust the microswitch on the stabiliser housing.
• If the microswitch is correctly adjusted but still gives incorrect readings then replace the microswitch.
• Check that the magnet located on the side of the stabiliser extension near the foot end is in place
• Check that the stabiliser counts in and out correctly by looking at the LCD screen during operation of the stabiliser. During retraction the counter should reach zero mm by the end of the magnetic strip. During extension the counter will only start when the first magnet of the magnetic strip is reached
• Go to VIEW SENSOR VALUES then FRONT or REAR STABILISER EXTENSION SENSORS. With the stabiliser extension fully retracted the values displayed should show the values below
