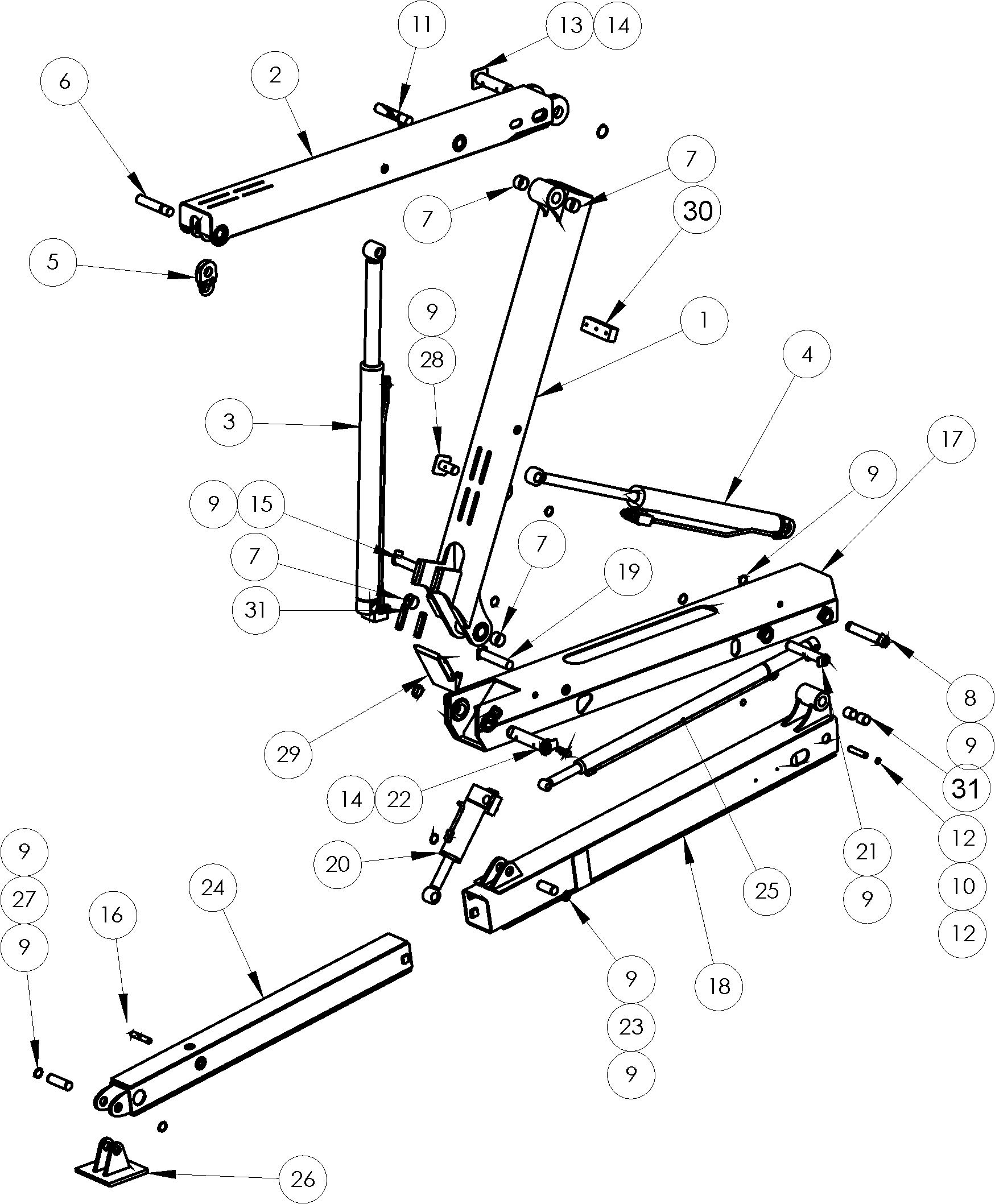

Item

Part Number

Description

Qty

1

S2-32407

Bottom Arm

1

2

S2-32425

Top Arm

1

3

HC-32445

Assy Cylinder Hyd Top Lift

1

4

HC-32447

Assy Cylinder Hyd Low Btm Lift

1

5

LF-38564

Hanger G Pin (Mid Crane)

1

LF-38283

Hanger Assy Bent G Pin (Rear Crane)

1

6

PN-32440

Pin G

1

7

BE-29011

Bearing Glacier 60 ID x 40 long

4

8

PN-32571

Pin H Assy Low

1

9

FA-28923

Circlip External M45

9

10

PN-32530

Pin J Low

1

11

PN-32582

Pin F Assy

1

12

FA-28922

Circlip External M25

4

13

PN-32583

Pin D Assy

1

14

FA-28935

Circlip External M60 ZP

2

15

PN-32525

Pin E Assy

1

16

PN-32533

Pin K Low

1

17

S2-32366

Crane Base Low

1

18

S2-32469

Stabiliser Housing Low

1

19

PN-32572

Pin I Assy Low

1

20

HC-32449

Assy Cyl Hyd Low Stab Tilt

1

21

PN-32569

Pin B Assy Low

1

22

PN-32570

Pin A Assy Low

1

23

PN-32531

Pin L Low

1

24

S2-32482

Stabiliser Extension Low

1

25

HC-32453

Assy Cyl Hyd Low Stab Extend

1

26

S2-32513

Foot Low

1

27

PN-32534

Pin M Low

1

28

PN-39219

Pin C Assy

1

29

S2-32597

Bash Plate

1

30

S2-32946

Pad Bottom Arm

1

31

BE-32468

Bearing Glacier 45 ID x 50 long

2
