Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.

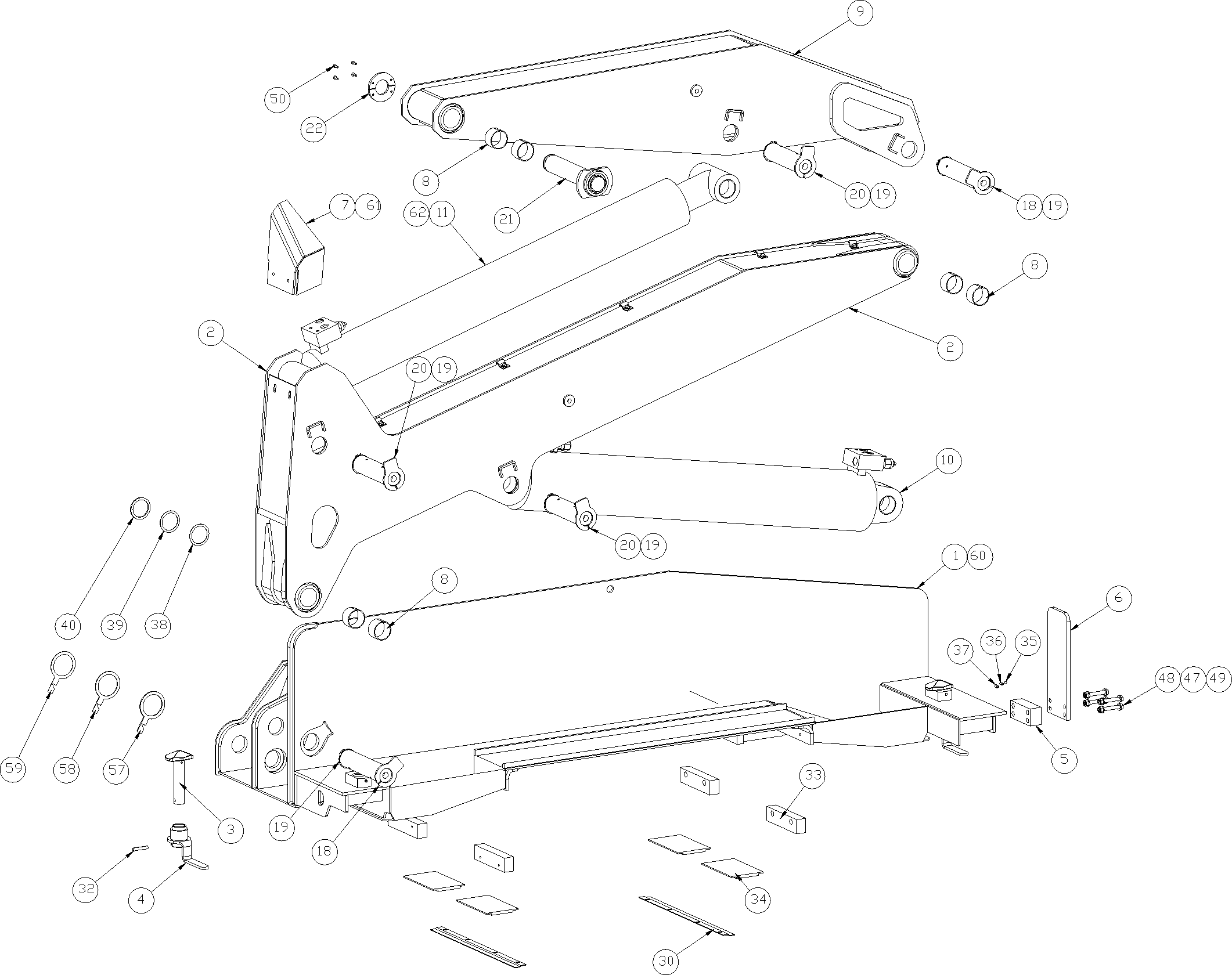

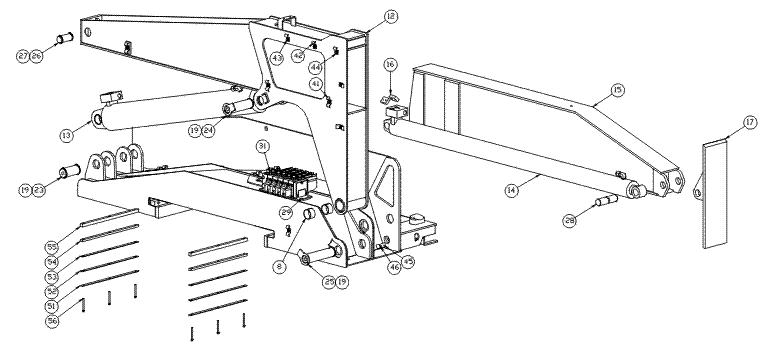

Item |
Part Number |
Description (SB300) |
Qty |
---|---|---|---|
1 |
S3-25980 |
Crane Base L/H SB330 |
1 |
2 |
S3-25928 |
Arm Bottom SB330 |
1 |
3 |
S3-26034 |
Centre Twistlock Crane Base SB330 |
2 |
4 |
S3-26040 |
Handle Twistlock Crane Base SB330 |
2 |
5 |
S3-26044 |
Block Spring Offside Bash Plate SB330 |
1 |
6 |
S3-26048 |
Plate Bash Offside Crane Base SB330 |
1 |
7 |
S3-25963 |
Plate Bash Bottom Arm L/H SB330 |
1 |
8 |
BE-29011 |
Bearing Glacier 60 ID x 40 long |
8 |
9 |
S3-25938 |
Arm Top SB330 |
1 |
10 |
HC-30051 |
Kit Cylinder Hyd Bottom Lift SB300 |
1 |
11 |
HC-26059 |
Kit Cylinder Hyd Top Lift L/H SB300 |
1 |
12 |
S3-21705 |
Stabiliser Housing SB300 |
1 |
13 |
HC-26057 |
Kit Cylinder Hyd Stab Tilt SB300/SB330 |
1 |
14 |
HC-26056 |
Kit Cylinder Hyd Stab Ext SB360/SB300 |
1 |
15 |
S3-21657 |
Stabiliser Extension SB300 |
1 |
16 |
S1-18365 |
Support Lower Stabiliser Leg Cyl SB360 |
2 |
17 |
S3-21833 |
Foot SB300 |
1 |
18 |
PN-21819 |
Pin A & D SB300 Ø60 |
2 |
19 |
FA-28935 |
Circlip 60mm |
11 |
20 |
PN-21821 |
Pin C E & F SB300 Ø60 |
3 |
21 |
PN-21822 |
Pin G SB300 Ø60 |
1 |
22 |
S3-21824 |
Plate Keeper Pin G SB300 |
2 |
23 |
PN-21812 |
Pin B & I SB300 |
2 |
24 |
PN-21826 |
Pin L SB300 Ø60 |
1 |
25 |
PN-21823 |
Pin H SB300 Ø60 |
1 |
26 |
PN-18322 |
Pin J SB360 SB300 Ø45 |
1 |
27 |
FA-28923 |
Circlip External M45 |
2 |
28 |
PN-21817 |
Pin K SB300 Ø45 |
1 |
29 |
S1-21933 |
Bracket Control Valve |
1 |
30 |
S3-31484 |
Retainer Wear Pad Crane Base SB330 |
2 |
31 |
HC-26090 |
Danfoss valve PVEM |
1 |
32 |
FA-27891 |
Pin Roll M10 X 55 |
2 |
33 |
S1-20829 |
Wear Pad Side Crane Base SB360 |
4 |
34 |
S3-26092 |
Wear Pad Crane Base 10mm SB330 |
4 |
35 |
TP-22361 |
Ball Steel |
2 |
36 |
TP-22382 |
Spring Twistlock Centre |
2 |
37 |
FA-28750 |
Screw Grub M10 X 012 |
2 |
38 |
S1-22507 |
Shim 60 I.D. X 75 O.D. X 1mm SB300 |
1 |
39 |
S1-22508 |
Shim 60 I.D. X 75 O.D. X 2mm SB300 |
1 |
40 |
S1-22509 |
Shim 60 I.D. X 75 O.D. X 5mm SB300 |
1 |
41 |
HC-20674 |
Clamp Double 16mm Pipe |
5 |
42 |
HC-18602 |
Clamp Single 16mm Pipe |
13 |
43 |
FA-28604 |
Screw Set Hex Gr 8.8 M8X20 ZP |
18 |
44 |
FA-28827 |
Washer Flat M8X19 ZP |
28 |
45 |
HC-25811 |
Clamp Double 1/2 Hose Plastic Dipped |
10 |
46 |
FA-29759 |
Screw Socket Cap Gr 12.9 M8X20 ZP |
10 |
47 |
FA-28838 |
Washer Flat M12X28.5 ZP |
8 |
48 |
FA-28647 |
Bolt Hex Gr 8.8 M12X80 ZP |
4 |
49 |
FA-28772 |
Nut Nyloc M12 ZP |
4 |
50 |
FA-28730 |
Screw Socket Flat Head Gr 12.9 M6X20 ZP |
4 |
51 |
S3-26156 |
Shim Load Transfer Foot 3mm SB300/SB330 |
2 |
52 |
S3-26155 |
Shim Load Transfer Foot 2mm SB300/SB330 |
2 |
53 |
S3-26154 |
Shim Load Transfer Foot 1mm SB300/SB330 |
2 |
54 |
S3-22162 |
Block Load Transfer 12mm Flange SB30 |
2 |
55 |
S3-22161 |
Block Load Transfer 20mm Flange SB300 |
2 |
56 |
FA-28711 |
Screw Socket Cap Gr 12.9 M8X80 Blk |
6 |
57 |
S6-20471 |
Spacer Washer SB360 A&H Pin 4mm |
1 |
58 |
S6-25959 |
Spacer Washer SB360 A&H Pin 2mm |
1 |
59 |
S6-25958 |
Spacer Washer SB360 A&H Pin 1mm |
1 |
60 |
S3-25981 |
Crane Base R/H SB330 |
1 |
61 |
S3-25967 |
Plate Bash Bottom Arm R/H SB330 |
1 |
62 |
HC-26058 |
Kit Cylinder Hyd Top Lift R/H SB300/SB330 |
1 |
