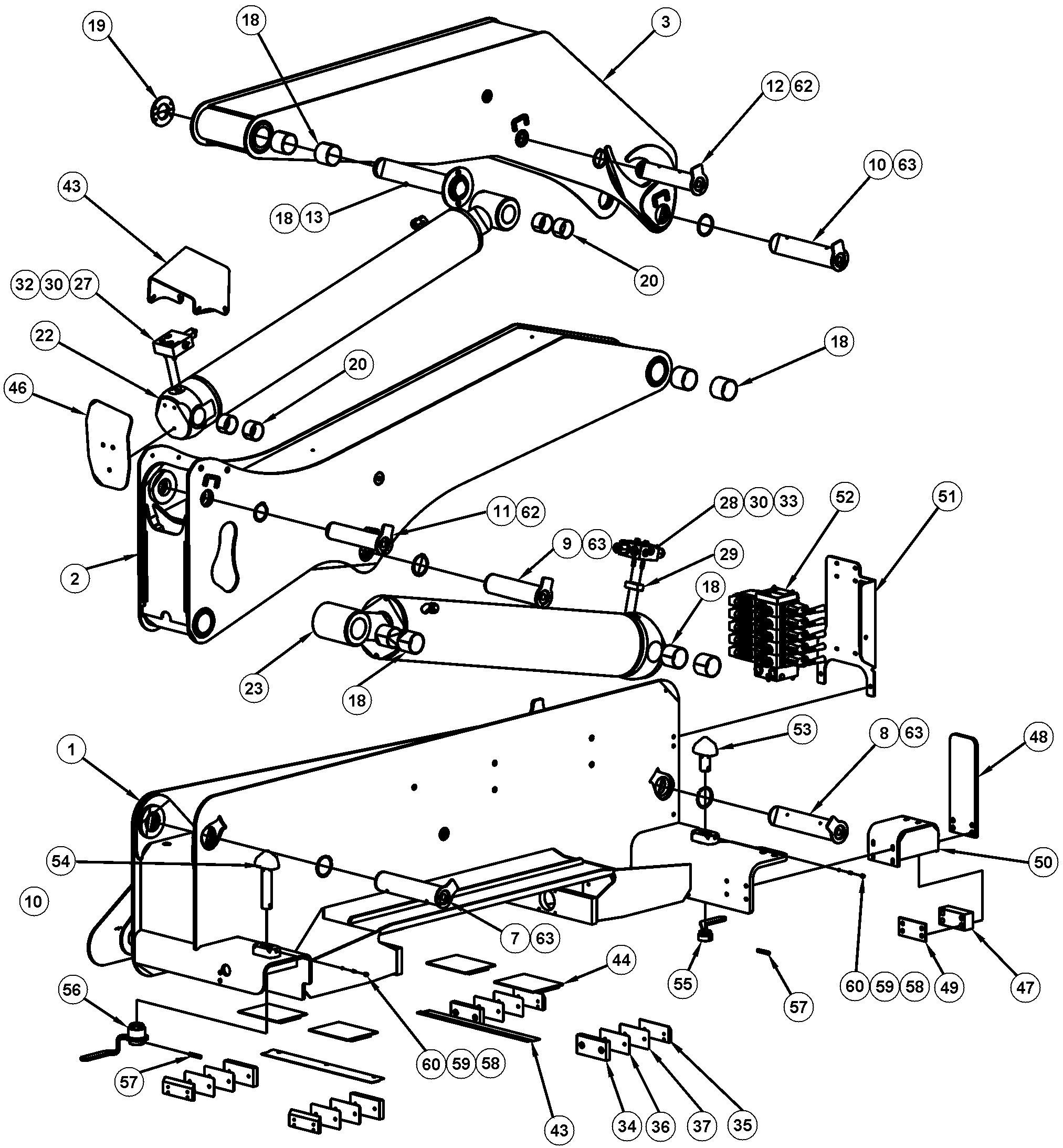

Item

Part Number

Description

Qty

1

S8-37431

Crane Base LH SE402

1

S8-37432

Crane Base RH SE402

1

2

S8-32240

Arm Bottom SB401

1

3

S8-36976

Arm Top SE401

1

4a

S8-37059

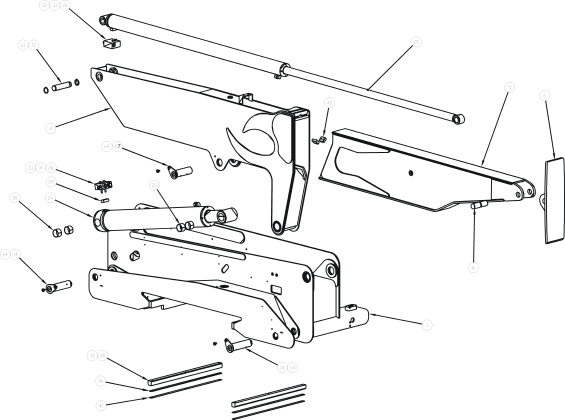

Stabiliser Housing SB401

1

5

S8-36980

Stabiliser Extension SE402

1

6

S8-36978

Foot Stabiliser SE402

1

7

PN-34235

Pin A SB401

1

8

PN-33248

Pin B SB401

1

9

PN-33252

Pin C SB401

1

10

PN-33254

Pin D SB401

1

11

PN-33256

Pin E SB401

1

12

PN-33258

Pin F SB401

1

13

PN-18319

Pin G SB360 Ø70

1

14

PN-33250

Pin H & I SB401

2

15

PN-37120

Pin J Stabiliser 07 SB401

16

PN-21817

Pin K SB330 SB401 Ø45

17

PN-35349

Pin L SB401 Teardrop Keeper

18

PN-37001

Anti-Theft Ring

19

S1-00907

Keeper G-Pin

2

20

BE-29011

Bearing Glacier 60 ID x 40 long

8

21

BE-29013

Bearing Glacier 70 ID x 60 long

8

22

HC-36902

Cylinder Hyd Top Lift SE402

1

23

HC-36901

Cylinder Hyd Bottom Lift SE402

1

24

HC-36939

Cylinder Hyd Stabiliser Tilt SE402

1

25

HC-36944

Cylinder Hyd Stabiliser Extend SE402

1

HC-37151

Kit Seal Top Lift SE402

HC-37150

Kit Seal Bottom Lift SE402

HC-37153

Kit Seal Stabiliser Extension SE402

HC-37152

Kit Seal Stabiliser Tilt SE402

1

HC-36304

Traverse Cylinder

1

HC-37154

Kit Seal Traverse Cylinder

1

26

HC-23366

Block Cartridge Double Port

1

27

HC-32293

Block Cartridge Low Height Single Port

1

28

HC-32294

Block Cartridge Low Height Double Port

2

29

HC-32295

Block Riser Cartridge

2

30

HC-25754

Cartridge Overcentre Non Vented

3

31

HC-25143

Cartridge Pilot Check

4

32

FA-28719

Screw Socket Cap Gr 12.9 M10X60 Blk

4

33

FA-32715

Screw Socket Cap Gr 12.9 M10X90 Blk

4

34

S1-33280

Wear Pad Side SB361/SB401

4

35

S1-33281

Plate Backing Wear Side SB361/SB401

4

36

S1-33282

Shim 2mm Wear Pad Side SB361/SB401

4

37

S1-33283

Shim 1mm Wear Pad Side SB361/SB401

4

38

S8-33305

Block Load Transfer 38mm SB361/SB401 (Rear crane)

2

39

S8-33306

Block Load Transfer 32mm SB361/SB401 (Front crane)

2

40

S8-33307

Shim Load Transfer 1mm SB361/SB401

2

41

S8-33308

Shim Load Transfer 2mm SB361/SB401

2

42

S1-18365

Support Lower Stabiliser Leg Cyl SB360

2

43

S1-31484

Retainer Long Wear Pad Crane Base Bolted

2

44

S3-31068

Wear Pad Crane Base 10mm SB330

4

45

S8-32256

Bash Cover LH Bottom Arm SB361/SB401

1

S8-32258

Bash Cover RH Bottom Arm SB361/SB401

1

46

S8-32251

Bash Plate LH Bottom Arm SB361/SB401

1

S8-32257

Bash Plate RH Bottom Arm SB361/SB401

1

47

S3-26044

Block Spring Offside Bash Plate SBSS

1

48

S3-26048

Plate Bash Offside Crane Base SB330

1

49

S3-31032

Washer Spring Block Offside Bash SB330

1

50

S8-33340

Mount Offside Bash Plate SB401

1

51

S8-33633

Plate Mounting Danfoss Bank LH

1

S8-33620

Plate Mounting Danfoss Bank RH

1

52

HC-33658

Valve Danfoss PVG32 No Coil SB401 Ram LHC

1

HC-33659

Valve Danfoss PVG32 No Coil SB401 Ram RHC

1

53

S8-33070

Bolt Anvil Machined TL Offside SB361/SB401

1

54

4S3-26034

Centre Twistlock Crane Base SB330

1

55

S8-33290

Handle Twistlock Offside LH SB361/SB401

1

S8-33069

Handle Twistlock Offside RH SB361/SB401

1

56

S8-33288

Handle Twistlock Liftside LH SB361/SB401

1

S8-33028

Handle Twistlock Liftside RH SB361/SB401

1

57

FA-27891

Pin Roll M10 X 55

2

58

TP-22361

Ball Steel

2

59

TP-22382

Spring Twistlock Centre

2

60

FA-28750

Screw Grub M10 X 012

2

61

FA-28923

Circlip External M45

2

62

FA-28935

Circlip External M60 ZP

2

63

FA-31071

Circlip External M70

4

64

FA-34402

Screw Socket Head Shouldered Retainer

3
