Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.

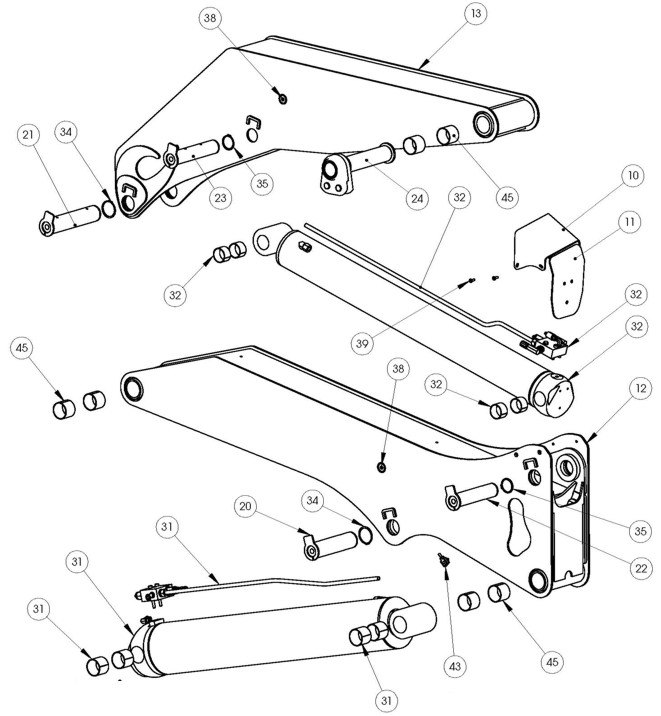

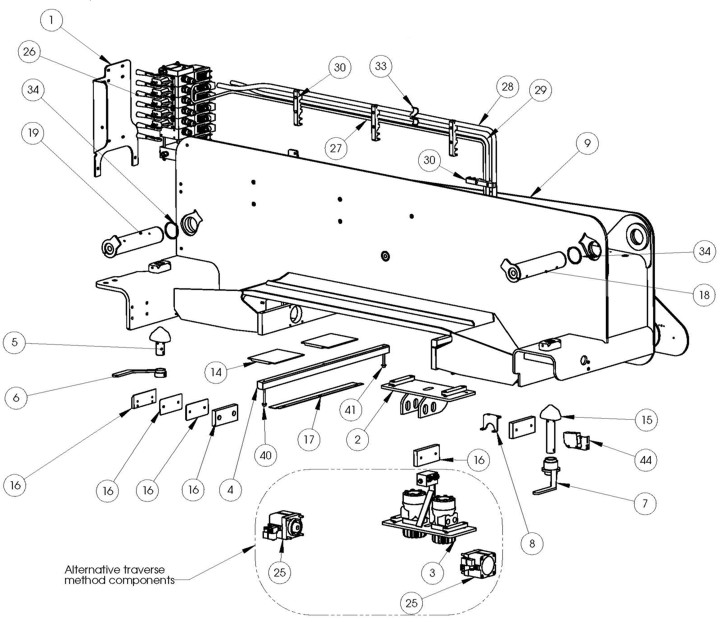

Item |
Part Number |
Description (SB401 Quattro) |
Qty |
1 |
S8-33620 |
Plate Mounting RH Danfoss Bank SB361/401 |
1 |
2 |
S8-33316 |
Assy Cylinder Traverse SB361/401 |
1 |
3 |
S8-33311 |
Assy Centre Drive Traverse SB361/401/450. Refer also to Crane Centre Traverse Details |
1 |
4 |
S8-33306 |
Block Load Transfer 32mm SB361/401 |
2 |
5 |
S8-33070 |
Bolt Anvil Machined TL Offside SB361/401 |
1 |
6 |
S8-33069 S8-33290 |
Handle Twistlock Offside RH SB361/401 Handle Twistlock Offside LH SB361/401 |
1 |
7 |
S8-33028 S8-33288 |
Handle Twistlock Liftside RH SB361/401 Handle Twistlock Liftside LH SB361/401 |
1 |
8 |
S8-33022 |
Plate Mount Plug Base SB361/401 |
1 |
9 |
S8-39541 (S8-39933) |
Crane Base SB401 Quattro RH (Crane Base SB401 Quattro LH) |
1 |
10 |
S8-32258 |
Bash Cover R/H Bottom Arm SB361/401 |
1 |
11 |
S8-32257 |
Bash Plate R/H Bottom Arm SB361/401 |
1 |
12 |
S8-32240 |
Arm Bottom SB361/401 |
1 |
13 |
S8-32300 S8-32211 |
Arm Top SB361 Arm Top SB401 |
1 |
14 |
S3-31068 |
Wear Pad Crane Base 10mm SB330 |
4 |
15 |
S3-26034 |
Centre Twistlock Crane Base SB330 |
1 |
16 |
S1-33275 |
Assy Wear Pad Side SB361/401 |
4 |
17 |
S1-31484 |
Retainer Long Wear Pad Crane Base Bolted |
2 |
18 |
PN-34235 |
Pin A SB401/SB361 |
1 |
19 |
PN-33248 |
Pin B SB401/SB361 |
1 |
20 |
PN-33252 |
Pin C SB401/SB361 |
1 |
21 |
PN-33248 |
Pin D SB401/SB361 |
1 |
22 |
PN-33256 |
Pin E SB401/SB361 |
1 |
23 |
PN-33258 |
Pin F SB401/SB361 |
1 |
24 |
PN-33285 |
Pin G SB401/SB361 |
1 |
25 |
PM-33302 |
Assy Lock Crane Base SB401/SB361 |
2 |
26 |
HC-33658 |
Valve Danfoss 4 Slice |
1 |
27 |
HC-33643 |
Tube 10mm LS RH Crane Base SB401/SB361 |
1 |
28 |
HC-33642 |
Tube 20mm Tank RH Crane Base SB401/SB361 |
1 |
29 |
HC-33641 |
Tube 16mm Pressure RH Crane Base SB401/SB361 |
1 |
30 |
HC-33614 |
Clamp Hyd Tube SB401 Crane Base |
4 |
31 |
HC-32284 |
Assy Cylinder Hyd Bottom Lift SB361/SB401 RH |
1 |
HC-33800 |
Assy Cylinder Hyd Bottom Lift SB361/SB401 LH |
|
|
32 |
HC-32280 |
Assy Cylinder Hyd Top Lift SB361 |
1 |
HC-32282 |
Assy Cylinder Hyd Top Lift SB401 |
1 |
|
33 |
HC-25811 |
Clamp Double 1/2 Hose Plastic Dipped |
1 |
34 |
FA-31071 |
Circlip External M70 |
4 |
35 |
FA-28935 |
Circlip External M60 ZP |
2 |
36 |
FA-28827 |
Washer Flat M8X19 ZP |
18 |
37 |
FA-28770 |
Nut Nyloc M8 ZP |
4 |
38 |
FA-28755 |
Screw Socket Grub M16X16 ZP |
4 |
39 |
FA-28733 |
Screw Socket Flat Head Gr 12.9 M8X25 Blk |
4 |
40 |
FA-35375 |
Screw Socket Cap Gr 12.9 M8X90 Blk |
4 |
41 |
FA-28710 |
Screw Socket Cap Gr 12.9 M8X70 Blk |
2 |
42 |
FA-28605 |
Screw Set Hex Class 8.8 M8X25 ZP |
8 |
43 |
EL-34171 |
Sensor Inclinometer VTI 2-Axis M12 Plug |
2 |
44 |
EL-22723 |
Switch Photo Sensor Sick WT260S280 |
1 |
45 |
BE-29013 |
Bearing Glacier 70 ID x 60 long |
6 |
Note: Please provide the Serial Number of the sidelifter with all spare parts orders.
Item |
Part Number |
Description (SB401 Quattro) |
Qty |
Notes |
|---|---|---|---|---|
1 |
S8-39541 (S8-39933) |
Crane Base SB401 Quattro RH (Crane Base SB401 Quattro LH) |
1 |
|
2 |
S1-39533 |
Stabiliser Beam |
1 |
|
3 |
S1-39546 |
Link Long |
2 |
|
4 |
S1-39740 |
Link Short |
2 |
|
5 |
S1-39534 |
Stabiliser Extension |
1 |
|
6 |
S1-39535 |
Lower Leg |
1 |
|
7 |
S1-39748 |
Foot Lower Leg |
1 |
|
8 |
HC-41263 |
Assembly Cylinder Hyd Stab Tilt |
1 |
|
9 |
HC-39538 |
Assembly Cylinder Hyd Stab Lower Leg |
1 |
|
10 |
HC-41262 |
Assembly Cylinder Hyd Stabiliser Extend |
1 |
|
11 |
PN-39699 |
Stub Pin |
2 |
|
12 |
S1-39548 |
Foot Stabiliser Extend |
1 |
|
13 |
PN-39756 |
Pin I |
1 |
|
14 |
PN-39753 |
Pin H |
1 |
|
15 |
PN-39765 |
Pin L |
1 |
|
16 |
PN-39767 |
Pin K |
1 |
|
17 |
PN-39764 |
Pin R |
1 |
|
18 |
PN-39770 |
Pin P |
1 |
|
19 |
PN39769 |
Pin Q |
1 |
|
20 |
PN-41253 |
Pin J |
1 |
|
21 |
PN-39768 |
Pin T |
1 |
|
