S6-29497

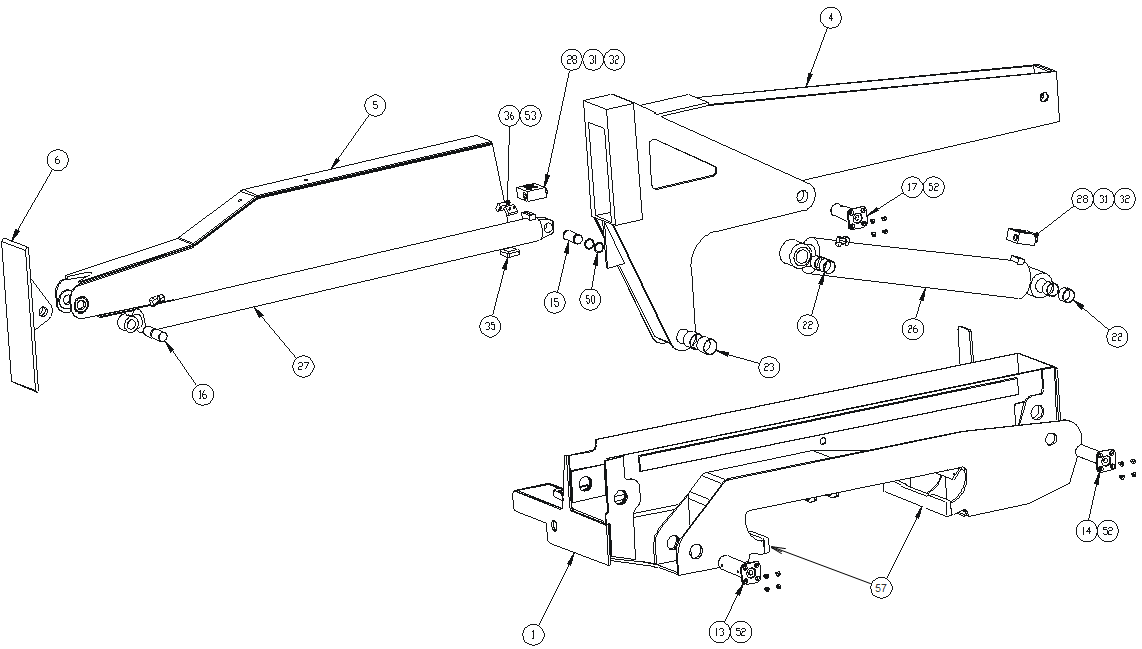

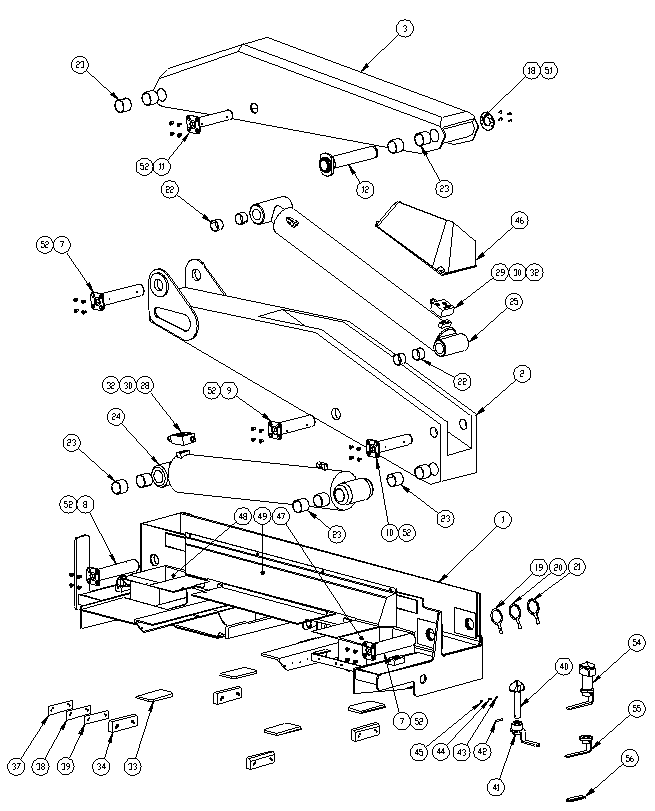

Crane Assy SB360 RH Standard Arm (Shown)

1

S6-29496

Crane Assy SB360 LH Standard Arm

1

S6-22129

Crane Base R/H SB360

1

S6-22130

Crane Base L/H SB360

S6-29276

Crane Base R/H Trombone Front

S6-29277

Crane Base L/H Trombone Front

2

S6-18200

Arm Bottom SB360

1

3

S6-18202

Arm Top SB360 (Obsolete rep by S6-22387) (EC1349)

1

S6-22387

Arm Top SB360 Extended Reach

4

S6-18075

Stabiliser Housing SB360

1

5

S6-25513

Stabiliser Extension SB360

1

6

S6-18076

Foot SB360 Sidelifter

1

7

PN-19710

Pin A & D SB360 Ø70

2

8

PN-19711

Pin B SB360 Ø70

1

9

PN-19712

Pin C SB360 Ø70

1

10

PN-19714

Pin E SB360 Ø60

1

11

PN-19715

Pin F SB360 Ø60

1

12

PN-18319

Pin G SB360 Ø70

1

13

PN-19716

Pin H SB360 Ø70

1

14

PN-19717

Pin I SB360 Ø60

1

15

PN-18322

Pin J SB360 SB300 Ø45

1

16

PN-18323

Pin K SB360 Ø45

1

17

PN-19719

Pin L SB360 Ø60

1

18

S1-00907

Keeper Pin G SB360 (Half Circle)

2

19

S6-25958

Spacer Washer SB360 A&H Pin 1mm

20

S6-25959

Spacer Washer SB360 A&H Pin 2mm

21

S6-20471

Spacer Washer SB360 A&H Pin 4mm

22

BE-29011

Bearing Glacier 60 ID x 40 long

8

23

BE-29013

Bearing Glacier 70 ID x 60 long

12

24

HC-31628

Cylinder Hyd Bottom Lift SB360 Type 2

1

HC-25801

Cylinder Hyd Bottom Lift SB360 (Metric Type 1)

HC-18203

Cylinder Hyd Bottom Lift SB360 (Imperial)

1

25

HC-25802

Cylinder Hyd Top Lift SB360

1

HC-18275

Cylinder Hyd Top Lift SB360 (Imperial)

1

HC-25803

Cylinder Hyd Top Lift Extended Reach SB360

26

HC-25804

Cylinder Hyd Stabiliser Tilt SB360

1

HC-18081

Cylinder Hyd Stabiliser Tilt SB360 (Imperial)

1

HC-27087

Kit Seal Stabiliser Tilt SB360

HC-37445

Kit Seal Stabiliser Tilt SB360 (DAS)

27

HC-25805

Cylinder Hyd Stabiliser Extension SB360 SB300/SB330

1

HC-18273

Cylinder Hyd Stabiliser Extension SB360 (Imperial)

1

HC-27101

Kit Seal Bottom Lift SB360

HC-37446

Kit Seal Bottom Lift SB360 (DAS)

HC-27100

Kit Seal Top Lift SB360

HC-37445

Kit Seal Top Lift SB360 (DAS)

HC-27089

Kit Seal Stabiliser Extension SB360

HC-33836

Kit Seal Stabiliser Extension SB360 (DAS)

28

HC-23366

Block Cartridge Double Port

3

29

HC-25753

Block Cartridge Single Port

1

30

HC-25754

Cartridge Overcentre Non Vented

3

31

HC-25143

Cartridge Pilot Check

4

32

HF-40479

Plug 1/4" BSPP (replaces HF-VST11/4A3C)

7

33

S6-20657

Wear Pad 13mm Crane Base

4

S6-18900

Wear Pad Top Flange 10mm Crane Base SB360

1

34

S1-31066

Wear Pad Side Flange C/Base 35mm

4

3

S1-31067

Wear Pad Side Flange C/Base 10mm

3

S1-20829

Wear Pad Side Crane Base 36mm SB360

1

S6-18725

Wear Pad Side Flange 10mm Crane Base SB360

1

35

S6-20695

Support Stabiliser Leg Cylinder SB360

1

36

S1-18365

Support Lower Stabiliser Leg Cyl SB360

2

37

S1-21161

Shim 200 X 060 X 01.5mm

1

38

S1-21162

Shim 200 X 060 X 02mm

1

39

S1-21163

Shim 200 X 060 X 03mm

1

40

S6-31037

Centre Twistlock Crane Base SB360

2

41

S3-26040

Handle Twistlock Crane Base SB330

2

42

FA-27891

Pin Roll M10 X 55

1

43

TP-22361

Ball Steel

1

44

TP-22382

Spring Twistlock Centre

1

45

FA-28750

Screw Grub M10 X 012

1

46

S6-18559

Plate Bash Bottom Arm RH SB360

1

S6-18562

Plate Bash Bottom Arm LH SB360

47

S6-21586

Chain Box R/H SB360

1

S6-21585

Chain Box Small R/H SB360

5

48

S6-21587

Chain Box L/H SB360

1

S6-21584

Chain Box Small L/H SB360

6

49

S6-21590

Plate Bash Crane Base SB360

1

50

FA-28923

Circlip External M45

2

51

FA-28730

Screw Socket Flat Head Gr 12.9 M10X25 ZP

4

52

FA-28736

Screw Socket Flat Head Gr 12.9 M10X25 ZP

36

53

FA-29755

Screw Socket Cap Gr 12.9 M6X20 ZP

4

54

TP-39893

Centre Twistlock C/W Shear Pin

1

2,8

55

CP-18000

Handle Twistlock Single Extended

1

2

56

TP-25850

Grip Handle Twistlock

1

57

S6-18302

Plate Load Transfer

2

HC-20674

Clamp Double 16mm Pipe

6

7

HC-18602

Clamp Single 16mm Pipe

10

7

HC-25811

Clamp Double 1/2" Hose Plastic Dipped

1

7

HC-31535

Clamp Pipe Pressed 20mm Single

2

7

S1-20507

Spacer Pipe Clamp Stabilizer Leg C/Base

1

7

S6-29543

Bracket Pipe Clamp Crane base Mk6

1

7

FA-28719

Screw Socket Cap Gr 12.9 M10x60 Blk

8

7

S6-26118

Bracket Pipe Crane Base Mk6

1

7

EL-27434

Gland Cable 16mm

1

7

EL-27697

Enclosure Remote S3 C/W Cut Lid

1

7

EL-27694

Locknut PVC 32mm

6

7

EL-27709

Nipple Screwed PVC 32mm.

3

7

TP-25606

Twistlock Body SBSK339D (Machined)

2

7

HC-29503

Valve Danfoss PVG32 No Coils SB360 Ram R

1

7

HC-29504

Valve Danfoss PVG32 No Coils SB300 LHC

1

7

HC-27073

Coil Danfoss 12V PVEM 157B4116

5

7

HC-27074

Coil Danfoss 24V PVEM 157B4128

5

7
