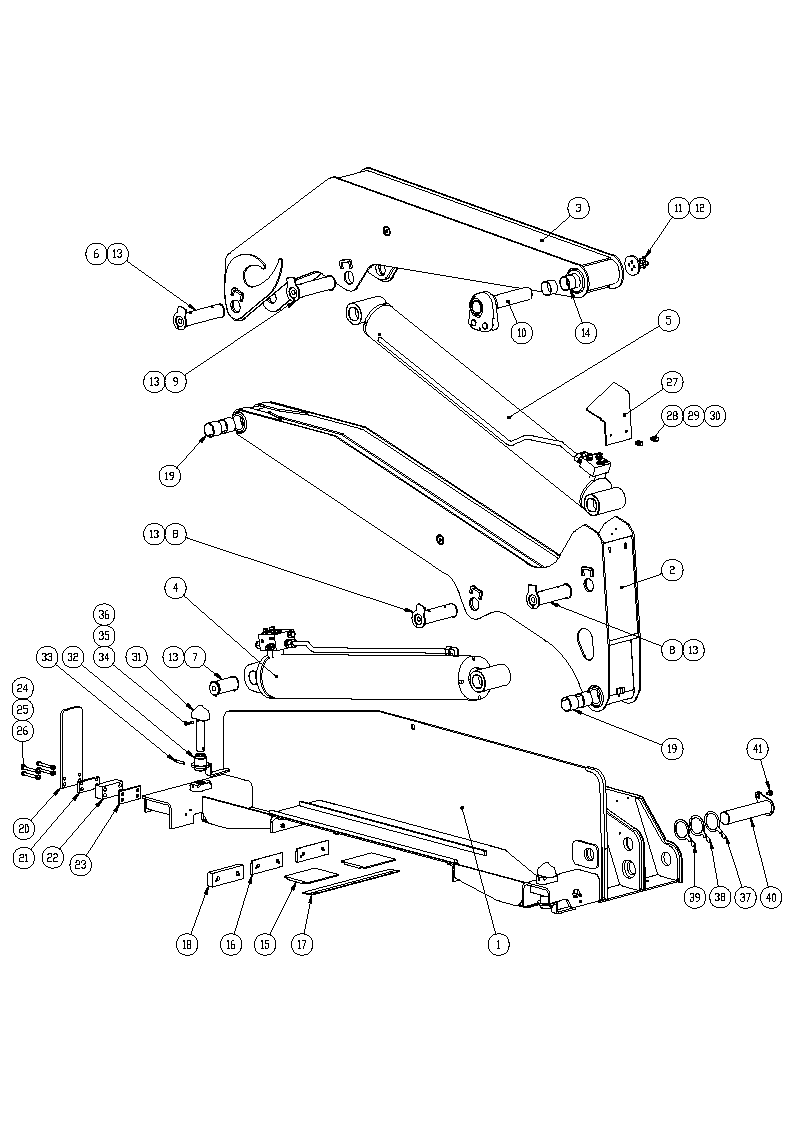

Item

Part Number

Description (SB362)

Qty

1

S3-25981

(S3-25980)

Crane Base RH

(Crane Base LH)

1

2

S3-25928R

(S3-25928L)

Bottom Arm RH

(Bottom Arm LH)

1

3

CR-41161R

(CR-41161L)

Top Arm RH

(Top Arm LH)

1

4

HC-41424

Assembly Cylinder Hyd Bottom Lift

1

5

HC-26058

(HC-26059)

Assembly Cylinder Hyd Top Lift RH

(Assembly Cylinder Hyd Top Lift LH)

1

6

PN-21819

Pin D

1

7

PN-21812

Pin B & I

1

8

PN-41248

Pin C & E

2

9

PN-41245

Pin F

1

10

PN-41241

Pin G (Clevis type)

1

11

PN-33853

Retainer Plate Pin G Clevis

1

12

FA-28737

Screw Socket Flat Head Gr12.9 M10x25 ZP

4

13

FA-28935

Circlip Ext M60 ZP

6

14

BE-29011

Bearing Glacier 60 ID x 40 long

2

15

S3-31068

Wear Pad Crane Base 10mm

4

16

S3-31067

Wear Pad Side Flange 10mm (Standard chassis)

4

17

S1-31484

Retainer Wear Pad

2

18

S1-31066

Wear Pad Side Flange 35mm (Narrow chassis)

19

BE-42814

Bearing Glacier 60 ID x 50 long

4

20

S3-26048

Bash Plate Offside Crane Base

1

21

S3-31031

Spacer Bash Plate Offside

1

22

S3-26044

Spring Block Bash Plate Offside

1

23

S3-31032

Washer Spring Block Bash Plate Offside

1

24

FA-28772

Nut Nyloc M12 ZP

4

25

FA-28827

Washer Flat M8x19 ZP

4

26

FA-28649

Bolt Hex Class 8.8 M12x100 ZP

4

27

CR-40446R

(CR-40446L)

Bash Plate Bottom Arm RH

(Bash Plate Bottom Arm RH)

1

28

FA-28832

Washer Flat M10x21 ZP

4

29

FA-28623

Set Screw Hex Class 8.8 M10x30 ZP

2

30

FA-28771

Nut Nyloc M10 ZP

2

31

S3-26034

Twistlock Centre Crane Base

2

32

S3-26040

Twistlock Handle Crane Base

2

33

FA-27891

Roll Pin M10 x 55

2

34

FA-28750

Grub Screw M10 x 12

2

35

TP-22382

Spring Twistlock

2

36

TP-22361

Ball Steel

2

37

S6-25958

Spacer Washer A&H Pin 1mm

38

S6-25959

Spacer Washer A&H Pin 2mm

39

S6-20471

Spacer Washer A&H Pin 4mm

40

PN-42801

Pin A

1

41

FA-34402

Screw Socket Head Shouldered

1

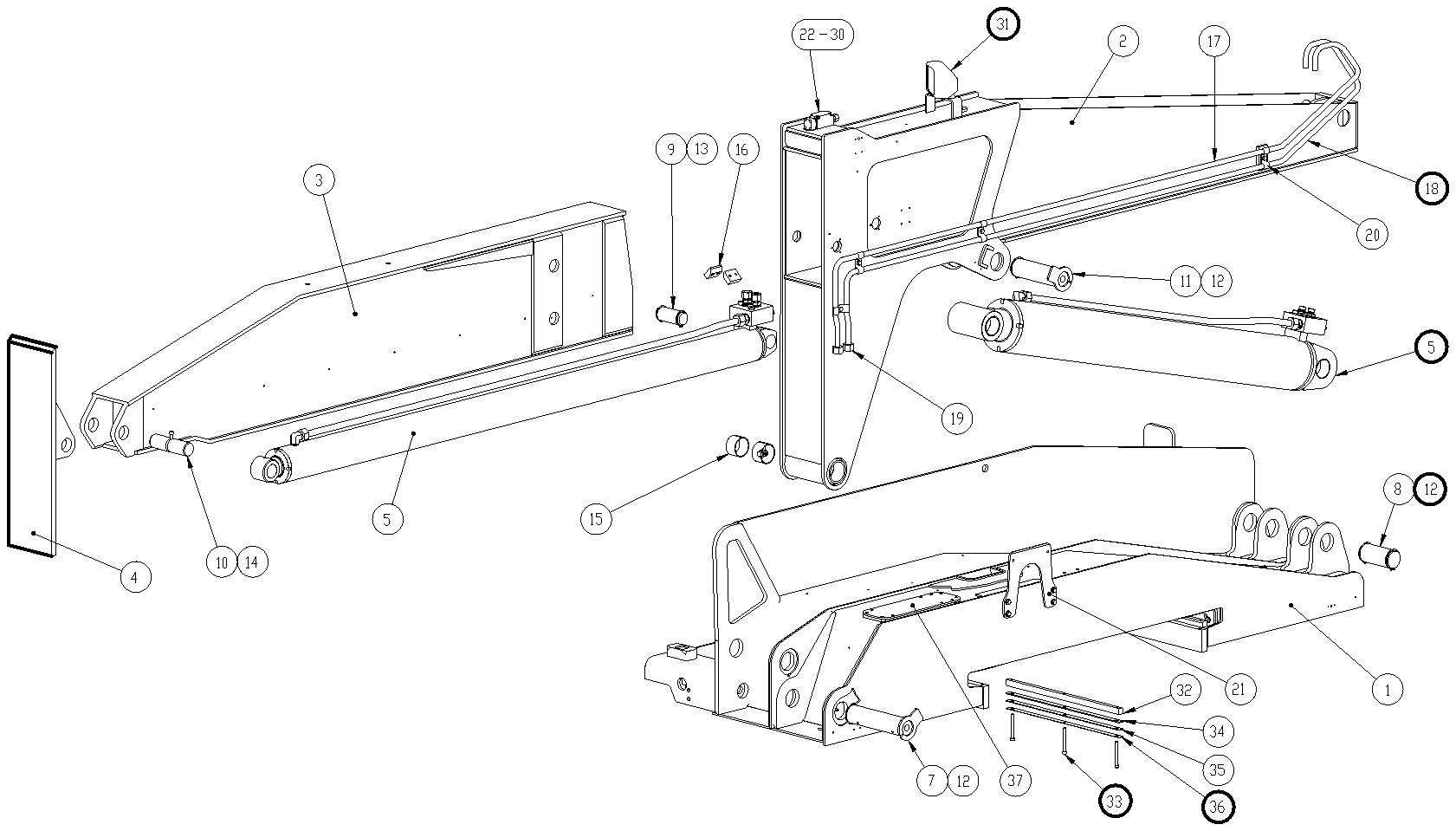

Item

Part Number

Description (SB362)

Qty

1

S3-25981

(S3-25980)

Crane Base RH

(Crane Base LH)

1

2

S3-39214R

(S3-29214L)

Stabiliser Housing RH

(Stabiliser Housing LH)

1

3

S3-39208R

(S3-39208L)

Stabiliser Extension RH

(Stabiliser Extension LH)

1

4

S3-21833

Foot

1

5

HC-26057

Assembly Cylinder Hyd Stabiliser Tilt

1

6

HC-26056

Assembly Cylinder Hyd Stabiliser Ext

1

7

PN-21823

Pin H

1

8

PN-21812

Pin B & I

1

9

PN-18322

Pin J

1

10

PN-21817

Pin K

1

11

PN-21826

Pin L

1

12

FA-28935

Circlip Ext M60 ZP

4

13

FA-28923

Circlip Ext M45 ZP

2

14

FA-29761

Screw Socket Cap Gr12.9 M8x30 ZP

1

15

BE-29011

Bearing Glacier 60 ID x 40 long

2

16

S1-18365

Support Lower Stabiliser Leg Cyl

2

17

HC-31692

(HC-31691)

Pipe Stabiliser Ext Cyl A RH

(Pipe Stabiliser Ext Cyl A LH)

1

18

HC-31694

(HC-31693)

Pipe Stabiliser Ext Cyl B RH

(Pipe Stabiliser Ext Cyl A LH)

1

19

HF-41228

Nut EO2 16mm Tube

2

20

HC-20674

Clamp Double 16mm Tube

4

21

S3-34590

Mount Plate Energy Chain

1

22

EL-27734

Body Limit Switch

1

23

EL-33684

Plunger Head End

1

24

S1-26119

Spring Plunger Stabiliser Deployed

1

25

EL-26088

Switch Plunger Stabiliser Deployed

1

26

KU-04811-00200

O-Ring

1

27

EL-27679

Reducer 20mm-16mm

1

28

EL-27434

Cable Gland 16mm

1

29

FA-28701

Screw Socket Cap Gr12.9 M6x40 ZP

2

30

FA-28825

Washer Spring M6 ZP

2

31

EL-33298

Work Lamp

1

32

S3-22161

Block Load Transfer 20mm

2

33

FA-28711

Screw Socket Cap Gr12.9 M8x80 Blk

6

34

S3-26154

Shim Load Transfer Foot 1mm

35

S3-26155

Shim Load Transfer Foot 2mm

36

S3-26156

Shim Load Transfer Foot 3mm

37

S1-21933

Bracket Control Valve

1
