Chain Sling and Lugs - SB121

Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.

Item

Description

Part Number

Qty

Notes

1

Lug Lifting Casting 13mm Chain

LF-38282

1

per Lug

2

Pin Lifting Hook 13mm Chain

LF-38283

1

per Lug

3

Pin Roll M4x50 Blk

FA-25658

1

per Lug

4

Pin Roll M8x40 Blk

FA-25659

1

per Lug

5

Pin Roll M5x40 Blk

FA-30059

1

per Lug

6

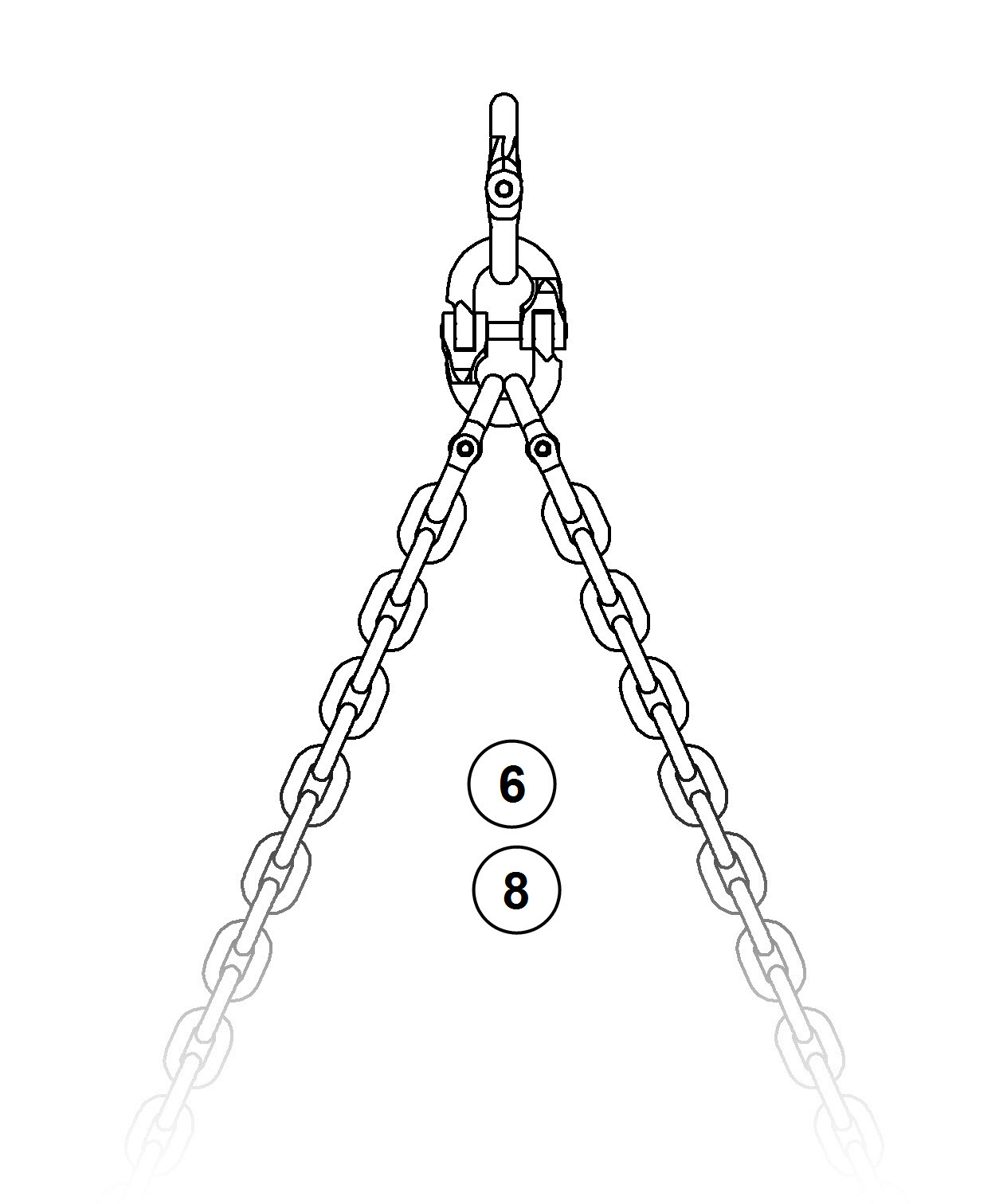

Chain Lifting Front Crane (76 links)

LF-38324

1

per Crane

7

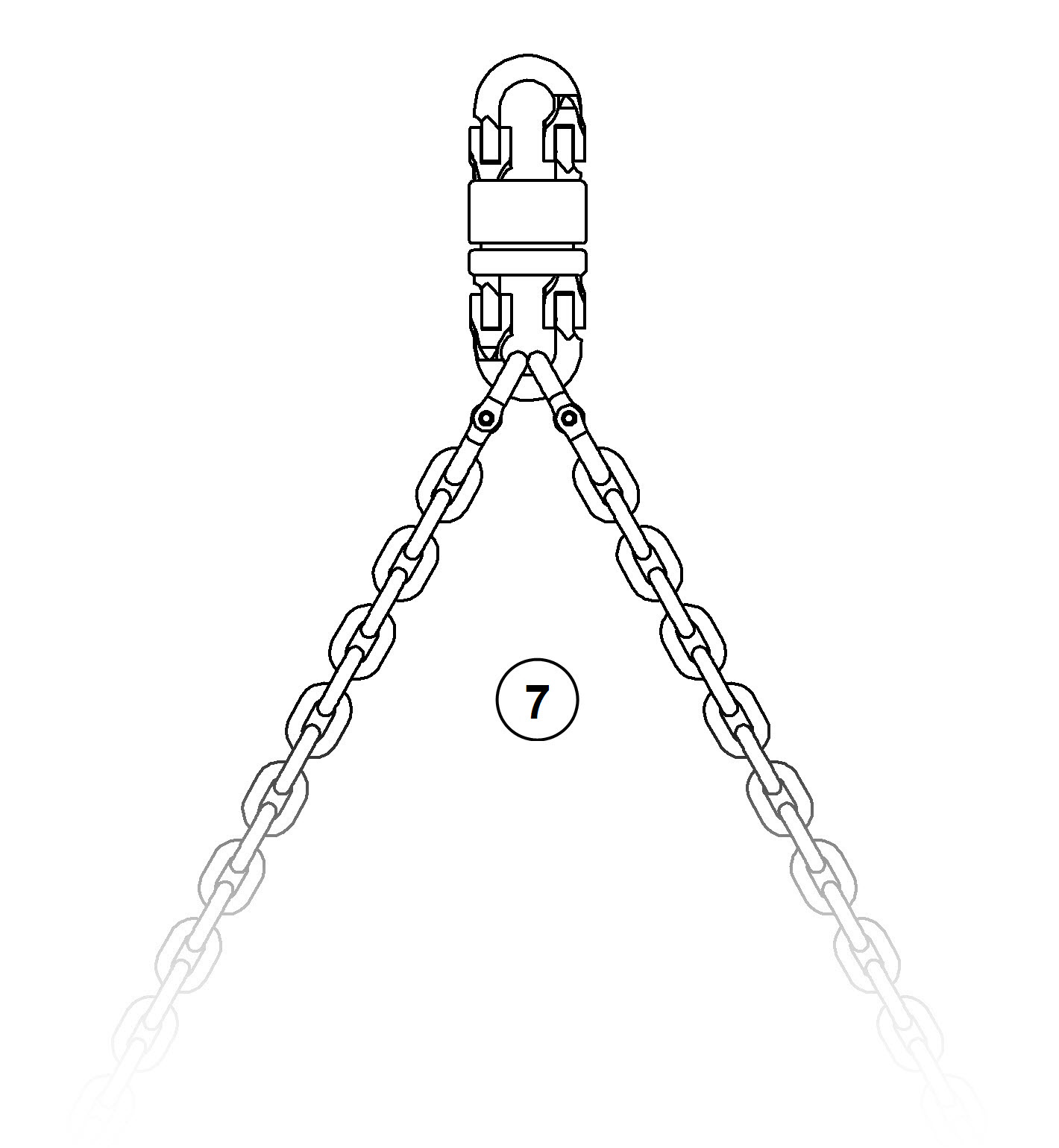

Chain Lifting Mid Crane

LF-38325

1

per Crane

8

Chain Lifting Rear Crane (64 links)

LF-38326

1

per Crane
