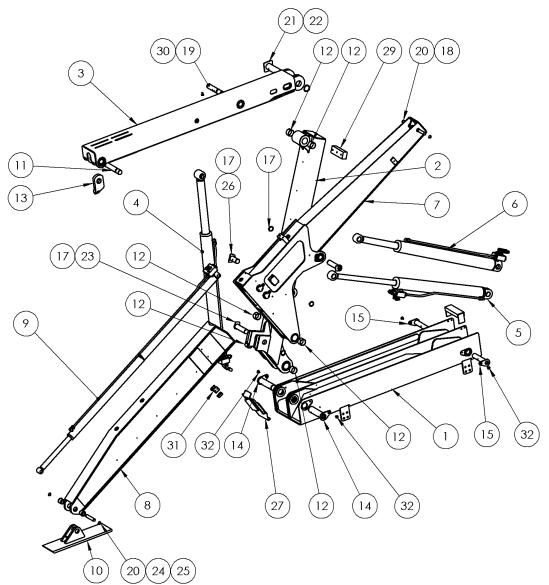

Item

Part no.

Description

Qty

1

S2-32518

Crane Base RH High

1

S2-32491

Crane Base LH High

1

2

S2-32407

Bottom Arm

1

3

S2-32425

Top Arm

1

4

HC-33421

Assy Cylinder Hyd Top Lift

1

5

HC-32601

Assy Cylinder Hyd High Btm Lift

1

6

HC-32451

Assy Cyl Hyd High Stab Tilt

1

7

S2-32541

Stabiliser Housing High

1

8

S2-32559

Stabiliser Extension High

1

9

HC-32455

Assy Cyl Hyd High Stab Extend

1

10

S2-32573

Foot Stabiliser High

1

11

PN-32440

Pin G

1

12

BE-29011

Bearing Glacier 60 ID x 40 long

6

13

LF-38283

Hanger Assy Bent G Pin

1

14

PN-32581

Pin A/H Assy High

2

15

PN-32580

Pin B/I Assy High

2

16

PN-32579

Pin L Assy High

1

17

FA-28923

Circlip External M45

3

18

PN-32538

Pin J High

1

19

PN-32582

Pin F Assy

1

20

FA-28922

Circlip External M25

4

21

PN-32583

Pin D Assy

1

22

FA-28935

Circlip External M60 ZP

1

23

PN-32525

Pin E Assy

1

24

PN-32558

Bush K Pin High

2

25

PN-32557

Pin K High

1

26

PN-39219

Pin C Assy

1

27

S2-32807

Bash Plate High Base

1

28

S2-32937

Retainer Pad Stop Top Arm

1

29

S2-32946

Pad Bottom Arm 50mm

1

30

S2-33055

Bolt Locating M12

1

31

S1-18365

Support Lower Stabiliser Leg Cyl SB360

3

32

FA-34402

Screw Socket Head Shouldered Retainer

4
