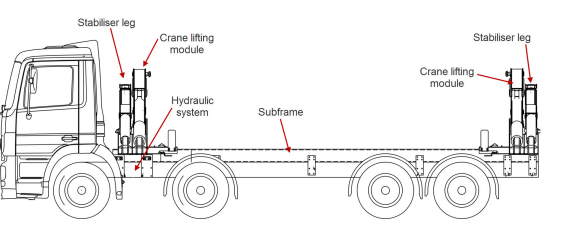

Main Components Truck Mounted Models

The main components of the truck mounted Sidelifter are:

• Stabiliser legs
• Crane lifting modules
• Lifting accessories (not shown)
• Electrical system (not shown)
• Hydraulic system (position may vary)
• Subframe

Truck mounted Sidelifters are fixed to a subframe and can carry one 20 foot container.

Truck mounted Sidelifters run on a Power Take Off (PTO) system, and require the truck to have a compatible PTO unit, pump and hydraulic coupling.
