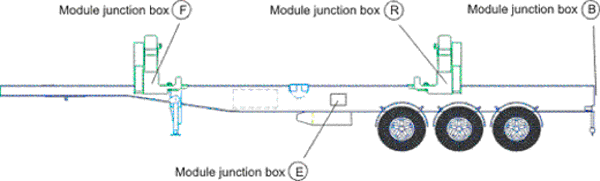

The figure below shows the location of the electrical junction boxes on the Sidelifter. The state of the LEDs in the E box, and the F and R boxes (SB361 and SB401 only) can be used for initial fault finding.
In This Section
Junction Box E
Junction Box B
Junction Boxes F and R
