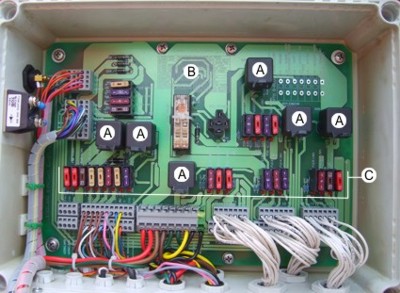

This is the main junction box and controls engine functions. It contains most of the fuses and relays.
Key: |
|
A |
Relay switches. A lit green LED signifies that the relay is energised. |
B |
Table showing fuse layout. |
C |
Fuses. A lit red LED indicates that the fuse is blown. |
