The stone guard is designed for centre mounted power pack engines to prevent stones entering the fan and causing damage to the radiator core.
Item |
Description |
Part Number |
Qty |
Notes |
|---|---|---|---|---|

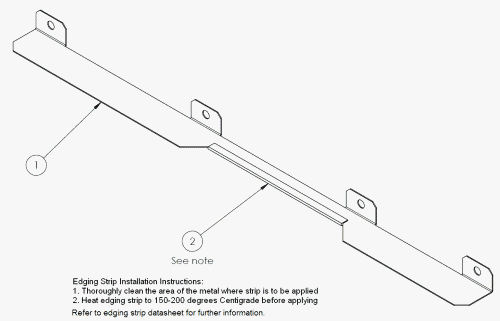

1 |
Shroud Fan V2403 Eng |
PP-12146 |
1 |
|
2 |
Edging Strip Rubber Rayrim NR-8 Cut @ 180 lg |
EL-41696 |
1 |
|
Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.

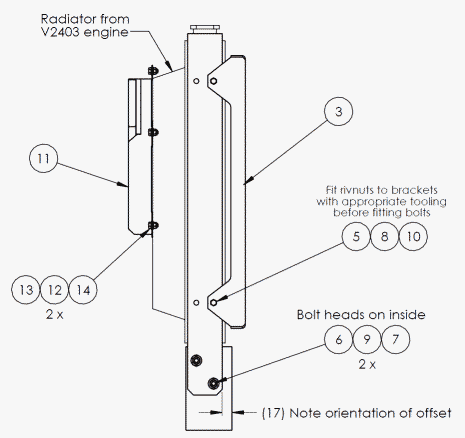

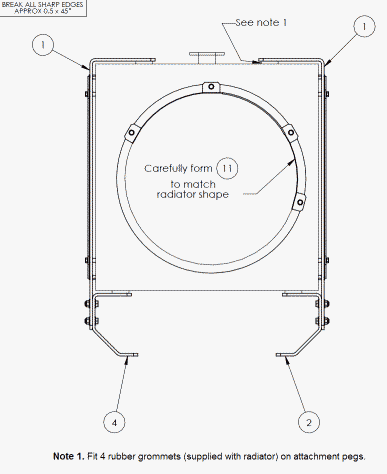

Item |
Description |
Part Number |
Qty |
Notes |
|---|---|---|---|---|
1 |
Bracket Upper Rad V2403-M |
S1-37972 |
2 |
|
2 |
Bracket Lower Radiator V2403-M LH |
S1-37973 |
1 |
|
3 |
Screen Radiator V2403-M |
S1-37974 |
1 |
|
4 |
Bracket Lower Radiator V2403-M RH |
S1-38013 |
1 |
|
5 |
Screw Set Hex Class 8.8 M6x25 ZP |
FA-28590 |
4 |
|
6 |
Screw Set Hex Class 8.8 M8x25 ZP |
FA-28605 |
4 |
|
7 |
Nut Nyloc M8 ZP |
FA-28770 |
4 |
|
8 |
Washer Spring M6 ZP |
FA-28825 |
4 |
|
9 |
Washer Flat M8x19 ZP |
FA-28827 |
8 |
|
10 |
Rivnut M6 Large Flange 4.5-6mm Thk Matl |
FA-38115 |
4 |
|
11 |
Shroud Assy Fan V2403 Eng |
PP-42147 |
1 |
|
12 |
Washer Flat M6x16 ZP |
FA-28824 |
8 |
|
13 |
Nut Nyloc M6 ZP |
FA-28769 |
4 |
|
14 |
Screw Set Hex Class 8.8 M6x12 ZP |
FA-28587 |
4 |
|
