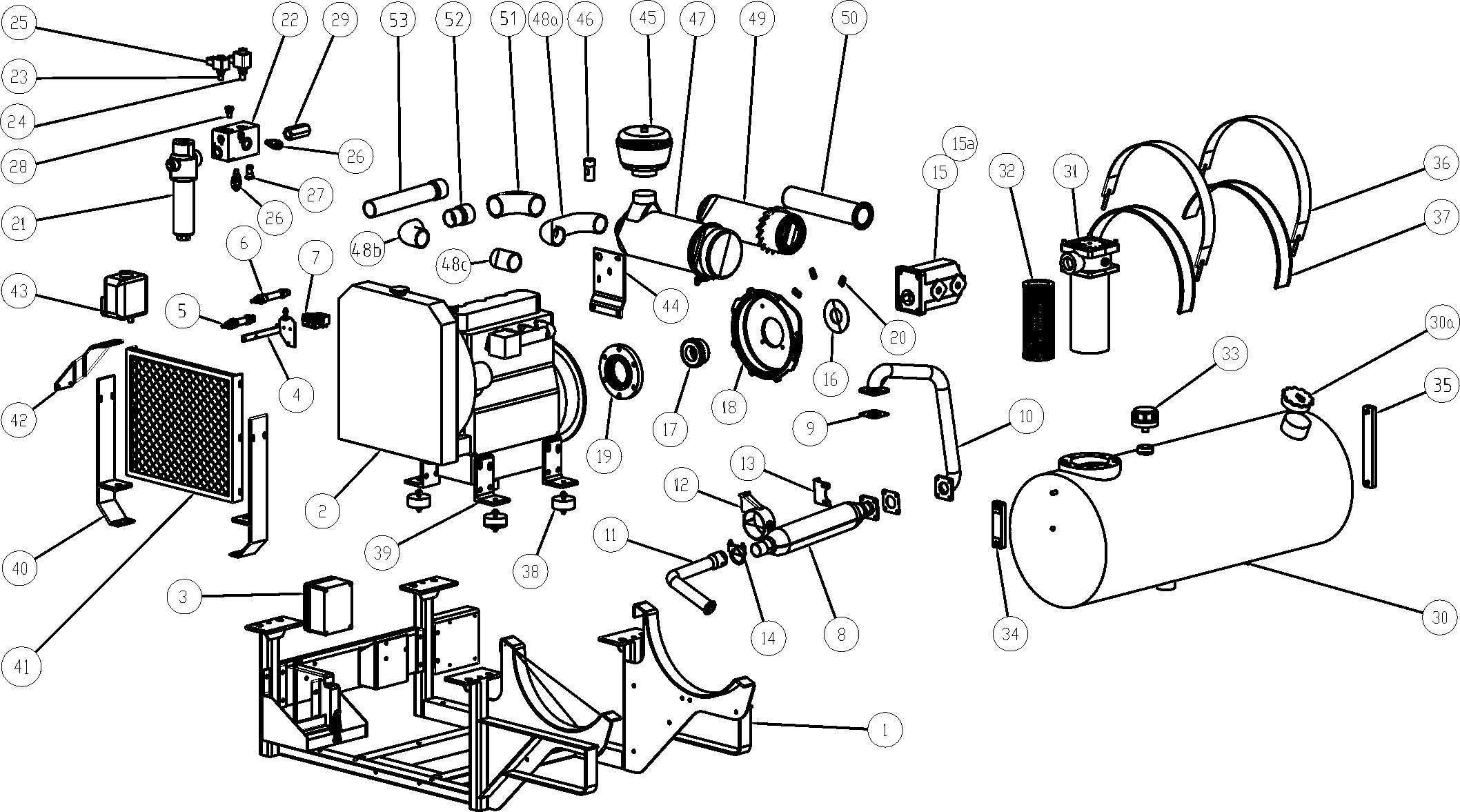

Engine Kubota V2203 Assy - Comb C/ Mount (Shown)

S1-31931

1

Engine Kubota V2203 Assy C/Mount 33G

S1-32685

Engine Kubota V2203 Assy C/Mount SB121

S2-33512

1

Frame Engine Mid Mount Combined

S1-31023

1

Frame Engine Mid Mount Combined SB33G (not shown)

S1-32667

Frame Engine Mid Mount Combined SB121M (not shown)

S1-33485

2

Engine Kubota

KU-V2203-B-EEC

1

3

Enclosure Piccolo H95PG

EL-31524

1

4

Bracket Engine Stop-Throttle Joucomatic

S1-31413

1

5

Cylinder Stop Control

PM-33885

1

6

Cylinder Throttle Control

PM-33886

1

7

Kit Valve Stop/Throttle Control

PM-33887

1

8

Muffler

KU-19077-12110

1

9

Gasket

KU-T0070-16420

2

10

Bracket Exhaust Complete

S1-31029

1

11

Exhaust Pipe Extension Curved 90 deg

S1-27103

1

12

Bracket Exhaust Complete

S1-31028

1

13

Bracket Exhaust V2203-B

S1-20247

1

14

Clamp Exhaust 44mm (1 3/4")

S1-30637

1

15

Pump Kappa Tandem KP30.22-LGF-GF-30.22-L

HC-31472

1

replaces HC-18864 and HC-26131

Pump Single (not shown) (for SB121 variation)

HC-33515

1

16

Plate Pump Locating

HC-37091

1

17

Gear Pump Coupling

HC-37092

1

18

Bell Housing V2203B

HC-37093

1

19

Adaptor Flywheel

HC-37094

1

20

Link Tie

S1-37549

4

21

Filter Pressure Line

HC-18740

1

22

Manifold Type: SB10373 (1/2" BSP Ports)

HC-32480

1

2

23

Cartridge Type SX204N-H12S

HC-31968

1

2

24

Cartridge Type S501N-H12

HC-31969

1

2

25

Plug Hirshman Crane Base Lock

PM-22624

2

2

26

Cartridge Type 1DR30-P20S

HC-31970

2

2

27

Cartridge Type 3CA80-1.5S

HC-31971

1

2

28

Plug Cavity Type: CP08-20

HC-31977

1

2

29

Valve Check 3/4 In Line

HC-20799

1

30

Tank Alloy Combination Oil/Fuel R/H

HC-19052

1

30a

Cap Fuel Tank, Lockable

HC-32649

1

31

Filter Assy Hyd Oil Tank Low Pressure

HC-18954

1

32

Element Filter Hyd Oil Tank

HC-18955

1

33

Breather Oil Tank

HC-19063

1

34

Gauge Sight Oil 5 Inch M12

HC-26250

1

35

Gauge Sight Fuel 10 Inch M12

HC-26251

1

36

Strap Alloy Tank

S1-16291

2

37

Rubber Tank Bracket Oil Fuel

TA-18120

4

38

Mount Engine 3 Inch Dia

S1-29001

4

39

Mount Engine

S1-02682

4

40

Bracket Radiator

S1-18433

2

41

Screen Radiator

S1-20143

1

42

Bracket Coolant Tank

S1-37570

1

43

Coolant Tank

KU-19077-72091

1

44

Bracket Mounting Air Cleaner SB360

S1-19903

1

45

Hood Inlet Air Cleaner

46

Indicator Informer Donaldson

S1-22532

1

Element Air Filter

47

Air Cleaner Only Donaldson

KU-15606-11010

1

48a

Pipe Air Intake

KU-16662-11622

1

48b

Pipe Air Intake

KU-16662-11622

1

48c

Pipe Air Intake

KU-16662-11622

1

49

Element Filter Main Donaldson

KU-15606-11080

1

Mounted Dual Element Air Filter

47

Air Cleaner Only Donaldson

S1-37296

1

48b

Pipe Air Intake

KU-16662-11622

1

1

48b

Pipe Air Intake

KU-16662-11622

1

1

48c

Pipe Air Intake

KU-16662-11622

1

1

49

Element Filter Main Donaldson

S1-37298

1

50

Element Filter Safety Donaldson

S1-37299

1

51

Elbow 2.5 Inch 90 Degree Donaldson

S1-37297

1

53

Reducer Exhaust 65mm-57mm Short

S1-37247

1

Over Mounted Dual Element Air Filter

47

Air Cleaner Only Donaldson

S1-37296

1

48b

Pipe Air Intake

KU-16662-11622

1

1

48b

Pipe Air Intake

KU-16662-11622

1

1

48c

Pipe Air Intake

KU-16662-11622

1

1

49

Element Filter Main Donaldson

S1-37298

50

Element Filter Safety Donaldson

S1-37299

1

51

Elbow 2.5 Inch 90 Degree Donaldson

S1-37297

53

Reducer Exhaust 65mm-57mm Long

S1-37248

1

Notes:

1

Cut according to instructions in Service Information K0002 to suit air filter arrangement.

2

Not used on SB121
