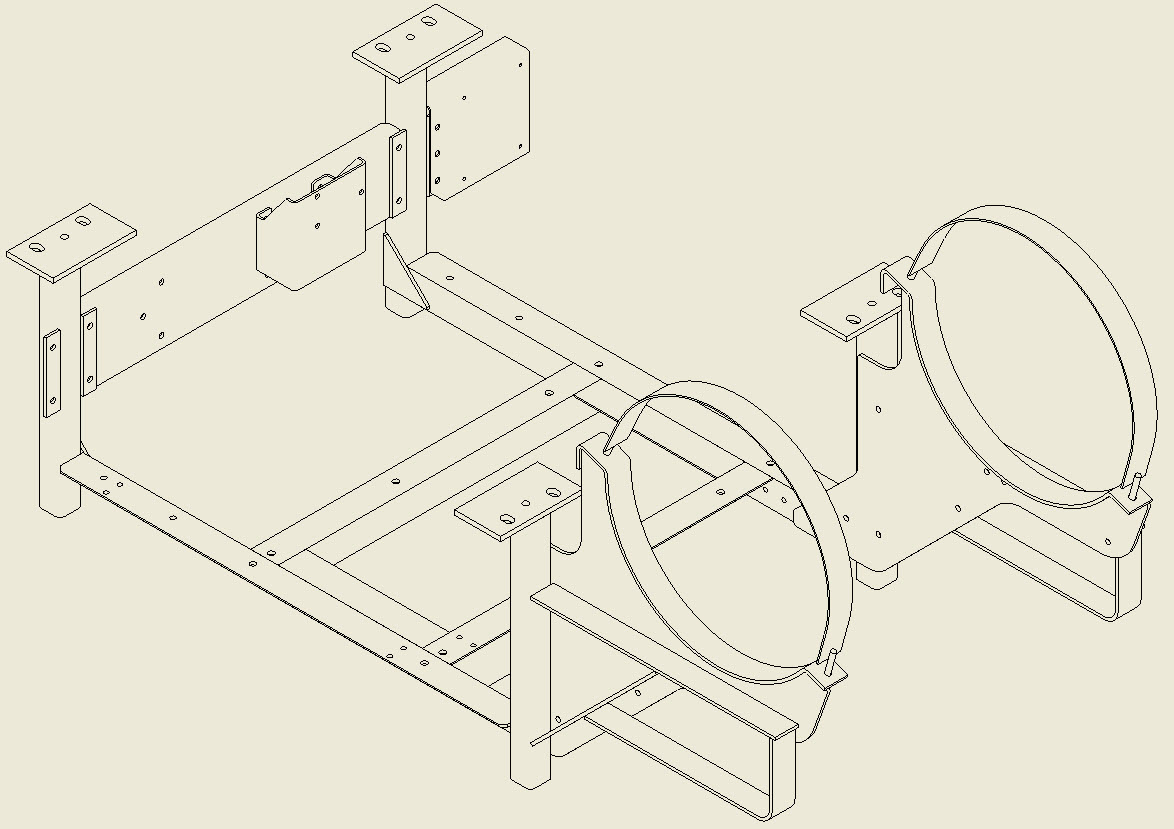

Figure 2.1: Engine Frame Assy Mid Mount Standard |

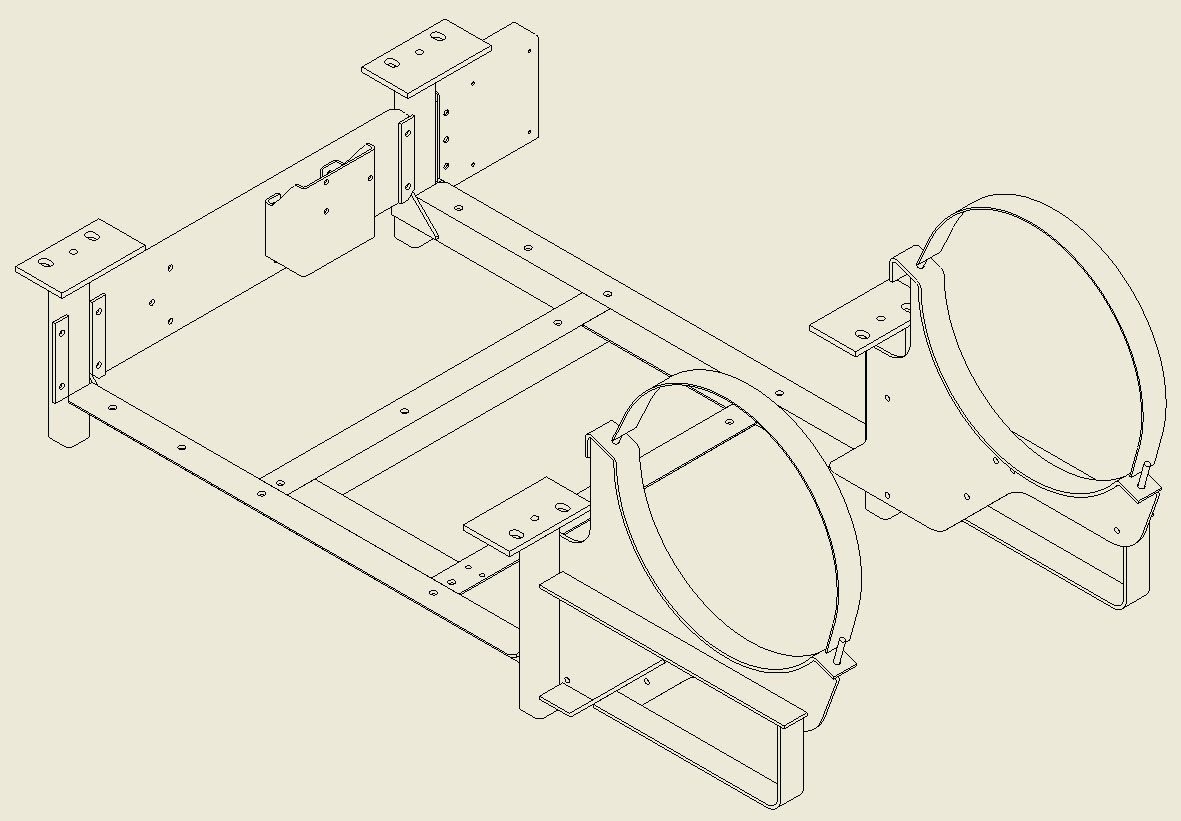

Figure 2.2: Engine Frame Assy Mid Mount SB330G |
|
|
|
|

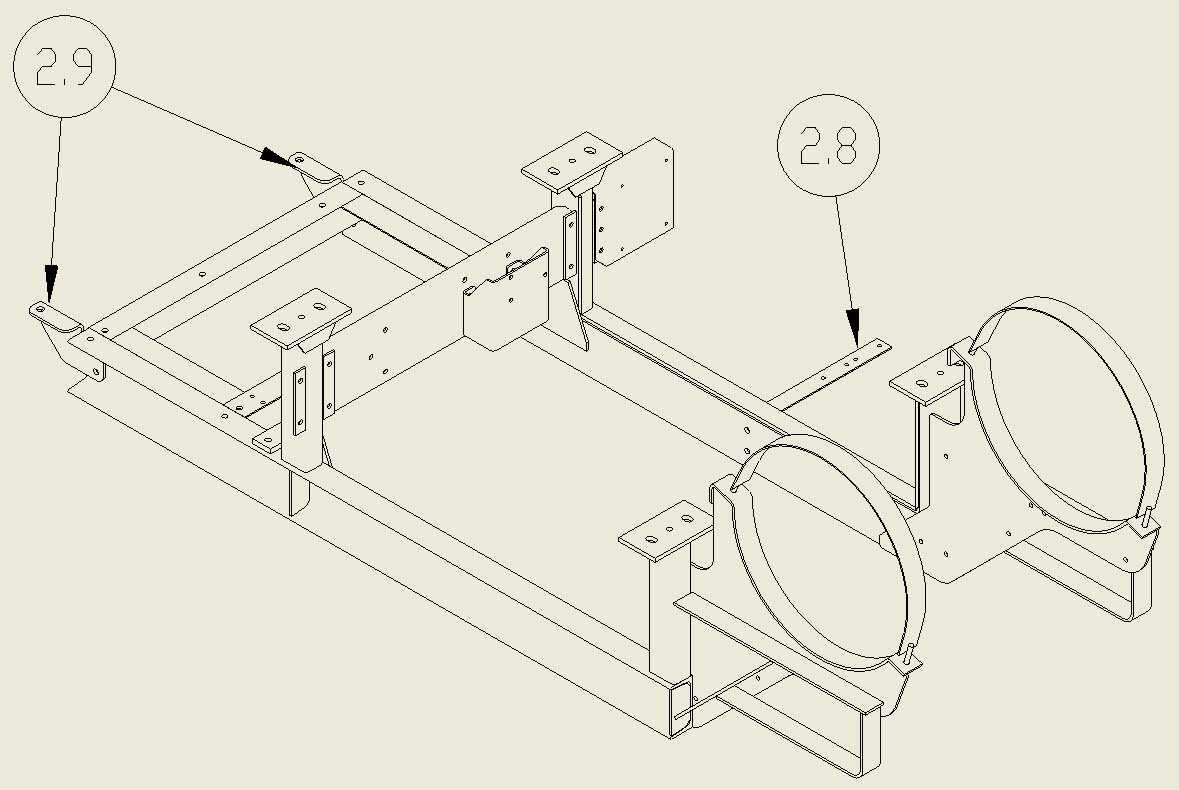

Figure 2.3: Engine Frame Assy Side Mount Standard |

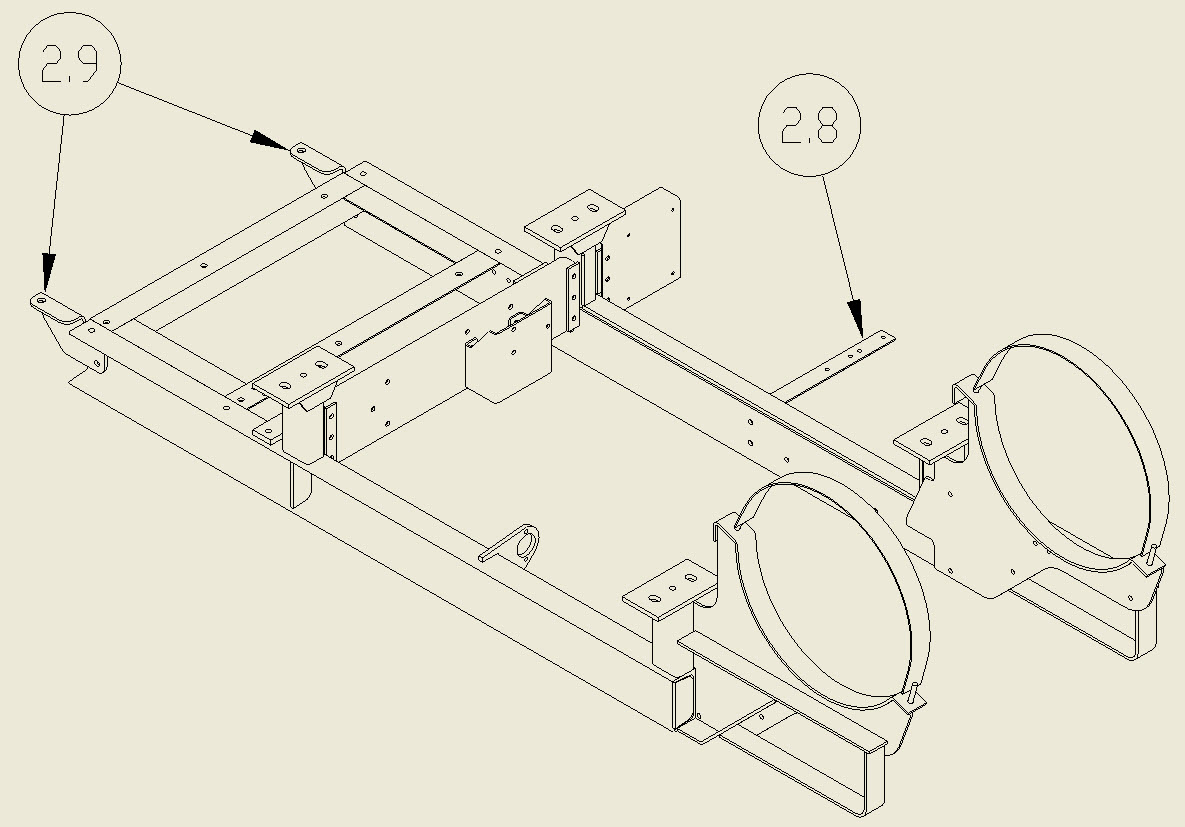

Figure 2.4: Engine Frame Assy Side Mount Trombone |
Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
|
Fig 2.1 |
Fig 2.2 |
Fig 2.3 |
Fig 2.4 |
|||
Mid Mount Standard |
Mid Mount SB330G |
Side Mount Standard |
Side Mount Trombone |
||||
Item |
Description |
Qty |
UoM |
Part No |
|||
2 |
Frame Engine Assy |
1 |
EA |
S1-31023 |
S1-32667 |
S1-33667 |
S1-36164 |
2.1 |
Frame Side RH |
1 |
EA |
S1-32776R |
S1-33037R |
S1-33686 |
S1-36165 |
2.2 |
Frame Side LH |
1 |
EA |
S1-32776L |
S1-33037L |
S1-33687 |
S1-36166 |
2.3 |
Base Frame |
1 |
EA |
S1-32777 |
S1-32777 |
S1-32777 |
S1-32777 |
2.4 |
Bracket Manifold |
|
EA |
S1-32780 |
S1-32780 |
S1-32780 |
S1-32780 |
2.5 |
Bracket Junction Box Mount |
1 |
EA |
S1-32781 |
S1-32781 |
S1-32781 |
S1-32781 |
2.6 |
Pressing Manifold Block Spacer |
1 |
EA |
S1-33039 |
S1-33039 |
S1-33039 |
S1-33039 |
2.7 |
Strap Tank |
2 |
EA |
S1-16291 |
S1-16291 |
S1-16291 |
S1-16291 |
2.8 |
Bracket Hoses Support |
1 |
EA |
n/a |
n/a |
S1-33778 |
S1-33778 |
2.9 |
Bracket Cover Mount |
2 |
EA |
n/a |
n/a |
S1-33688 |
S1-33688 |
2.10 |
Angle Assy LH |
1 |
EA |
n/a |
n/a |
n/a |
n/a |
2.11 |
Angle Assy RH |
1 |
EA |
n/a |
n/a |
n/a |
n/a |
