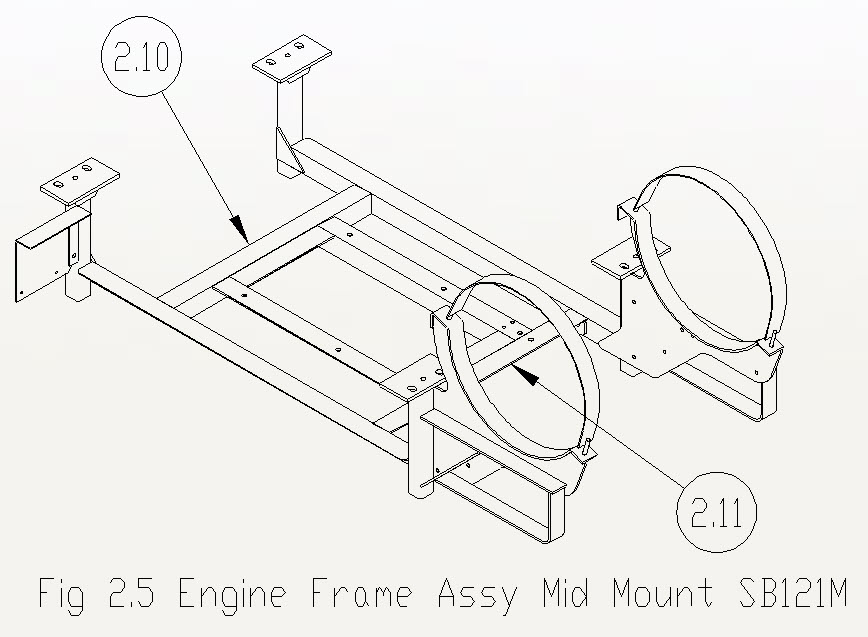

Figure 2.5: Engine Frame Assy Mid Mount SB121 |
Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
|
Fig 2.5 |
|||
Mid Mount SB121M |
||||
Item |
Description |
Qty |
UoM |
Part Number |
2 |
Frame Engine Assy |
1 |
EA |
S1-33485 |
2.1 |
Frame Side RH |
1 |
EA |
S1-33486 |
2.2 |
Frame Side LH |
1 |
EA |
S1-33487 |
2.3 |
Base Frame |
1 |
EA |
S1-32777 |
2.4 |
Bracket Manifold |
|
EA |
n/a |
2.5 |
Bracket Junction Box Mount |
1 |
EA |
S1-32781 |
2.6 |
Pressing Manifold Block Spacer |
1 |
EA |
n/a |
2.7 |
Strap Tank |
2 |
EA |
S1-16291 |
2.8 |
Bracket Hoses Support |
1 |
EA |
n/a |
2.9 |
Bracket Cover Mount |
2 |
EA |
n/a |
2.10 |
Angle Assy LH |
1 |
EA |
S1-38228 |
2.11 |
Angle Assy RH |
1 |
EA |
S1-38225 |
