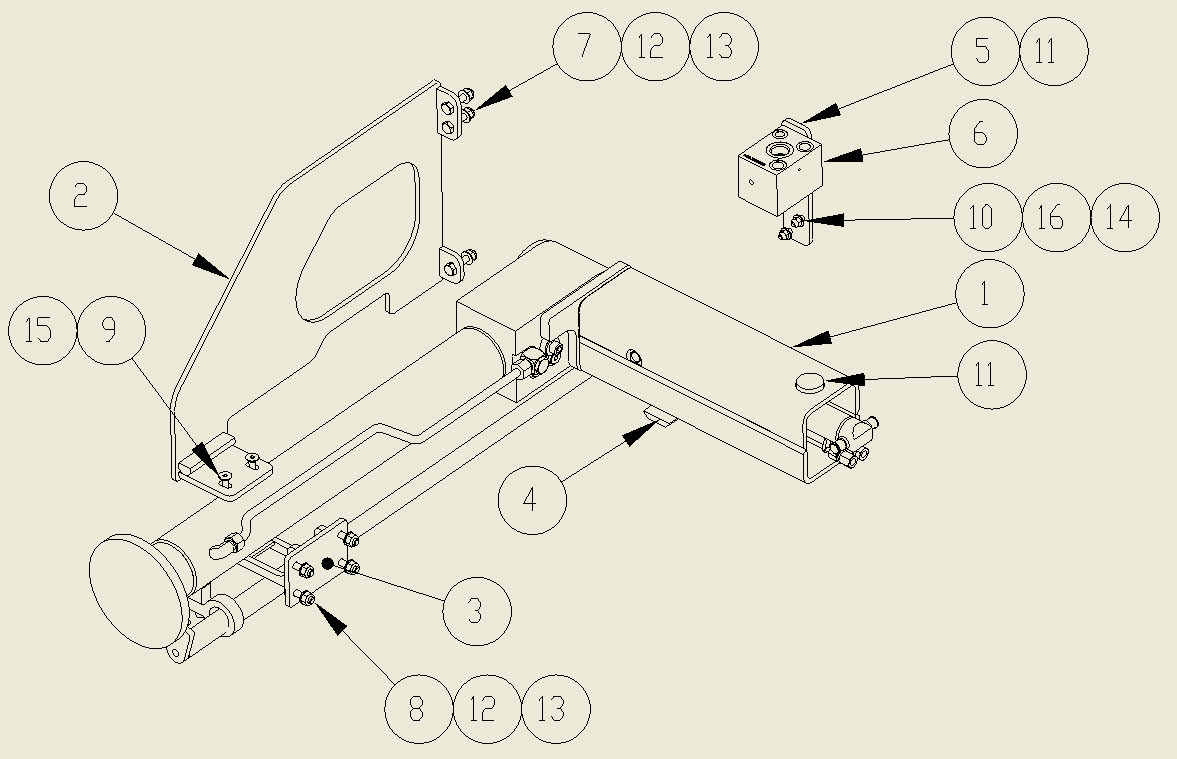

Note: Please provide the Serial Number of the sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
1 |
S8-32314 |
Assembly Offside Stabiliser RH 361/401 |
1 |
2 |
S8-33026 |
Assy OS Bash RH Crane Base SB401 |
1 |
3 |
S8-33331 |
Offside Stab Cylinder Rest Assy SB401 |
1 |
4 |
S8-33349 |
Pad Wear Insert Offside Stabiliser SB401 |
1 |
5 |
S8-33628 |
Bracket Mtg O/S Leg Hyd Block SB361/401 |
1 |
6 |
HC-35333 |
Block Cartridge Offside Leg SB361/SB401 |
1 |
7 |
FA-28627 |
Bolt Hex Class 8.8 M10X50 ZP |
3 |
8 |
FA-28625 |
Bolt Hex Class 8.8 M10X40 ZP |
4 |
9 |
FA-28738 |
Screw Socket Flat Head Gr 12.9 M10X25 ZP |
2 |
10 |
FA-28734 |
Screw Socket Flat Head Gr 12.9 M8X30 ZP |
2 |
11 |
FA-28733 |
Screw Socket Flat Head Gr 12.9 M8X25 Blk |
2 |
12 |
FA-28771 |
Nut Nyloc M10 |
7 |
13 |
FA-28832 |
Washer Flat M10X21 ZP |
7 |
14 |
FA-28770 |
Nut Nyloc M8 ZP |
2 |
15 |
FA-28761 |
Nut Hex Class 8.8 M10 ZP |
2 |
16 |
FA-28827 |
Washer Flat M8X19 ZP |
2 |

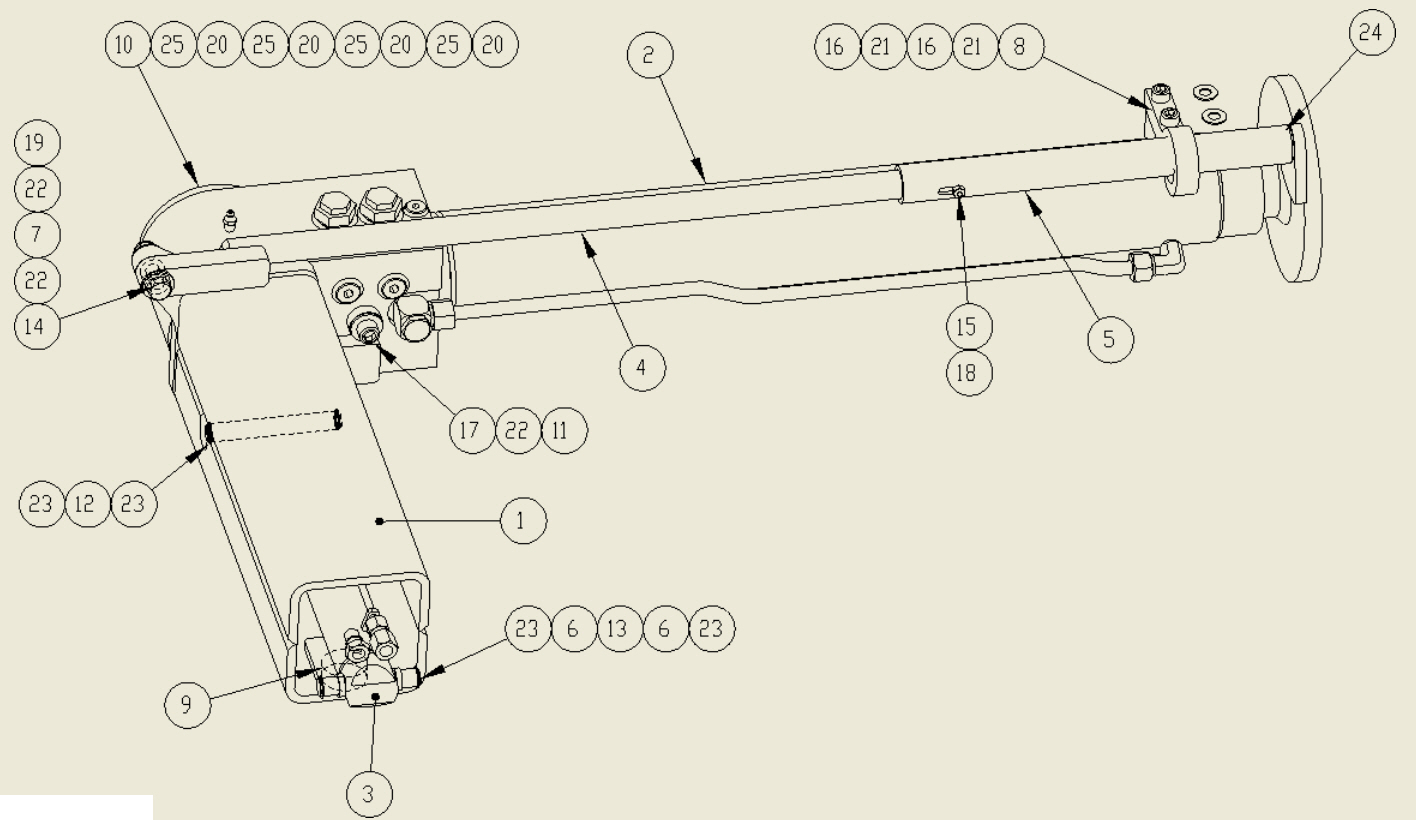

Note: Please provide the Serial Number of the sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
|
S8-32314 |
Assembly Offside Stabiliser RH SB361/SB401 (Shown) |
1 |
|
S8-32315 |
Assembly Offside Stabiliser LH SB361/SB401 |
1 |
1 |
S8-32316 |
Beam Slide RH Offside Stabiliser |
1 |
|
S8-32317 |
Beam Slide LH Offside Stabiliser |
1 |
2 |
HC-32290 |
Assy Cyl Hyd Off Stab Ext R/H SB361/SB401 |
1 |
|
HC-32310 |
Assy Cyl Hyd Off Stab Ext L/H SB361/SB401 |
1 |
|
HC-33837 |
Kit Seal Stab Offside Retract SB361/SB401 |
1 |
3 |
HC-32291 |
Cyl Hyd Offside Stab Deploy SB361/SB401 |
1 |
|
HC-33839 |
Kit Seal Stab Offside Deploy SB361/SB401 |
1 |
4 |
S8-32326 |
Push Rod Offside Stabiliser SB361/SB401 |
1 |
5 |
S8-32329 |
Push Tube Offside Stabiliser SB361/SB401 |
1 |
6 |
S8-32332 |
Spacer Tube Offside Stabiliser SB361/SB401 |
2 |
7 |
S8-32333 |
Bush Pivot Offside Stabiliser SB361/SB401 |
1 |
8 |
S8-32334 |
Plate Guide Offside Stabiliser SB361/SB401 |
1 |
9 |
S8-32335 |
Pad Wear Offside Stabiliser SB361/SB401 |
1 |
10 |
S8-32336 |
Plate Cap Offside Stabiliser SB361/SB401 |
1 |
11 |
S8-32340 |
Roller Stop (0) Offside Stab SB361/SB401 |
1 |
12 |
PN-32338 |
Pin Front Offside Stabiliser SB361/SB401 |
1 |
13 |
PN-32339 |
Pin Rear Offside Stabiliser SB361/SB401 |
1 |
14 |
FA-28642 |
Bolt Hex Class 8.8 M12X55 ZP |
1 |
15 |
FA-28701 |
Screw Socket Cap Gr 12.9 M6X40 ZP |
1 |
16 |
FA-28716 |
Screw Socket Cap Gr 12.9 M10X30 Blk |
2 |
17 |
FA-28721 |
Screw Socket Cap Gr 12.9 M12X30 Blk |
1 |
18 |
FA-28769 |
Nut Nyloc M6 ZP |
1 |
19 |
FA-28772 |
Nut Nyloc M12 ZP |
1 |
20 |
FA-28827 |
Washer Flat M8X19 ZP |
4 |
21 |
FA-28832 |
Washer Flat M10X21 ZP |
2 |
22 |
FA-28838 |
Washer Flat M12X28.5 ZP |
3 |
23 |
FA-32309 |
Circlip External M16 |
4 |
24 |
FA-32337 |
Washer Belleville M12 (12.2 x 25.0) |
20 |
25 |
FA-29759 |
Screw Socket Cap Gr 12.9 M8X20 ZP |
4 |
