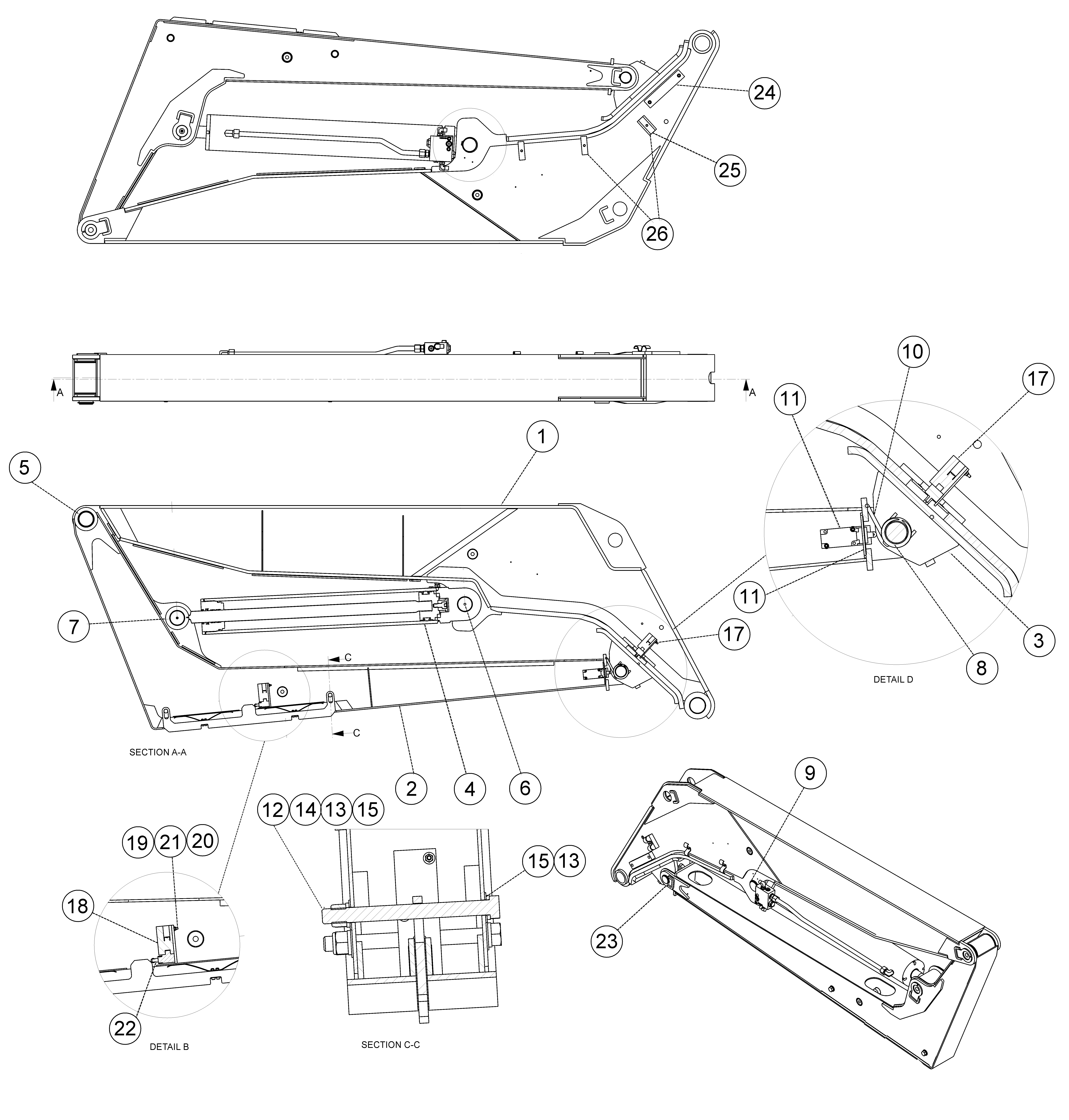

Item

Part Number

Description

Qty

Notes

1

CR-41736

Bridge Leg SB362

1

2

CR-41737

Outer Leg SB362

1

3

CR-41726

Foot SB362

1

4

CR-41770L

#Cyl Assy Hyd Outer LH Leg SB362

1

1

5

PN-21826

Pin L SB30 Ø60

1

6

PM-41766

Pin J Assy SB362

1

7

PN-41764

Pin Q Assy SB362

1

8

PN-41765

Pin R Assy SB362

1

9

FA-28935

Circlip Extl M60 ZP

4

10

CR-41754

Spring Foot SB362

1

11

CR-41755

Sensor Assy Foot SB362

1

12

FA-41986

Bolt Hex Class 8.8 M16x180 ZP

2

13

FA-28845

Washer Flat M16X32 ZP

4

14

FA-28774

Nut Nyloc M16 ZP

2

15

FA-28849

Washer Spring M16 ZP

4

16

CR-41777

Sensor Kneeling Bar Assy SB362

1

17

CR-41758

Sensor Assy Bridge Leg SB362

1

18

EL-27734

Body Lim Switch 1 X N/C 1 X N/0 Telemec

1

19

FA-28694

Screw Socket Cap Gr 12.9 M5X50 ZP

2

20

FA-28821

Washer Flat M5X12.5 ZP

2

21

FA-28768

Nut Nyloc M5 ZP

2

22

EL-33684

Plunger Head End Telemec ZCK E65

1

23

FA-28923

Circlip External M45

1

24

CR-41810

Pad Hose Offset SB362

1

25

CR-41811

Pad Hose Mnt SB362

1

26

HC-25811

Clamp Double 1/2" Hose Plastic Dipped

3

Note #

Notes

1

Part is handed. Use "L" suffix for LH part. Use "R" suffix for RH part.
