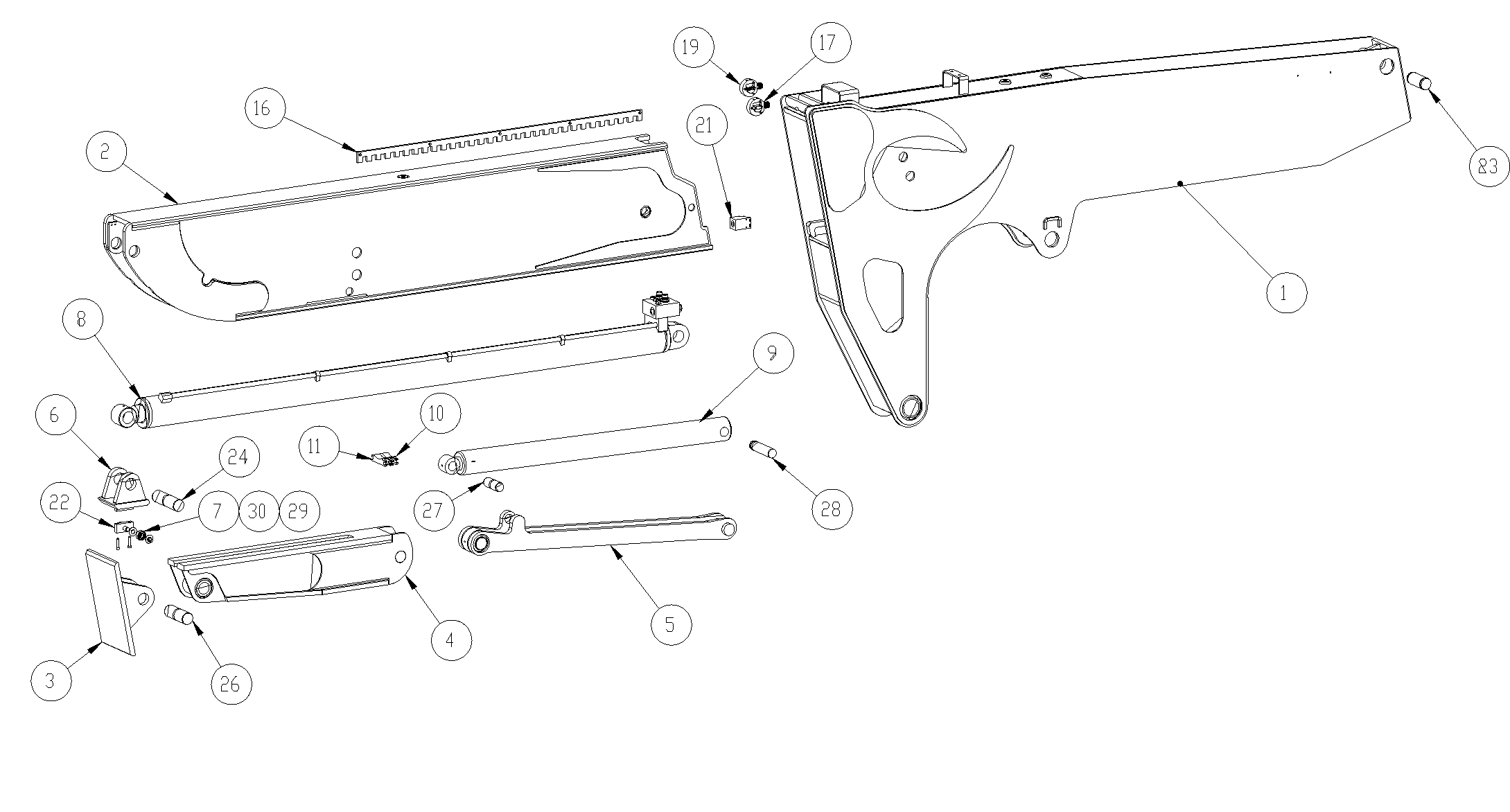

Item

Part Number

Description

Qty

1

S8-35157

Stabiliser Housing Bending leg

1

2

S8-35118

Stabiliser Extension Bending Leg

1

3

S8-35174

Foot - BL

1

4

S8-35098

Ankle Assembly BL

1

5

S8-35113

Link Assembly BL

1

6

S8-35107

Foot Swivel BL

1

7

BE-35577

Double Ball Bearing

2

8

HC-35570

Hydraulic Cylinder Assembly - Stabiliser Extension

1

9

HC-35169

Cylinder Assembly Ankle Extension

1

10

HC-35277

Clamp - Rear Ankle Extension Cylinder BL

1

11

HC-35278

Clamp - Front Ankle Extension Cylinder BL

1

12

S8-35706

Sensor Leg Deploy Mounting Block

1

13

S8-35708

Cover Proximity Sensor Leg Deploy

1

14

S8-35164

Bracket -Ankle Extended Sensor

1

15

S8-36525/S8-35167

Bracket -Ankle Retracted Sensor

1

16

EL-32922

Encoder Strip Stabiliser Extension -BL

1

17

Mount - Sensor Magnetic Assembly (EL-33269)

1

18

EL-35135

Sensor Inductive Proximity Type IQ10-06NPS-KT1

1

19

EL-33270

Optical Sensor Mount Assembly

1

20

EL-32921

Magnet Reset Stabiliser

2

21

EL-35136

Sensor -Inductive Proximity Type IQ40-35NPP-KCK

1

22

S8-35194

Pin - Foot Swivel

1

23

PN-18322

Pin J Ø45

1

24

PN-21817

Pin K Ø45

1

25

PN-35187

Pin M B L

1

26

PN-35166

Pin N BL

1

27

PN-35191

Link Pin - Ankle Cylinder BL

1

28

PN-35192

Pin - Ankle Cylinder BL

1

29

FA-35474

Circlip, External Diameter 14 (Zinc Plated)

2

30

FA-28845

Flat Washer M16X32 ZP

4

31

FA-28708

Screw- Socket Cap Grade 12.9 M8X35 Blk

2
