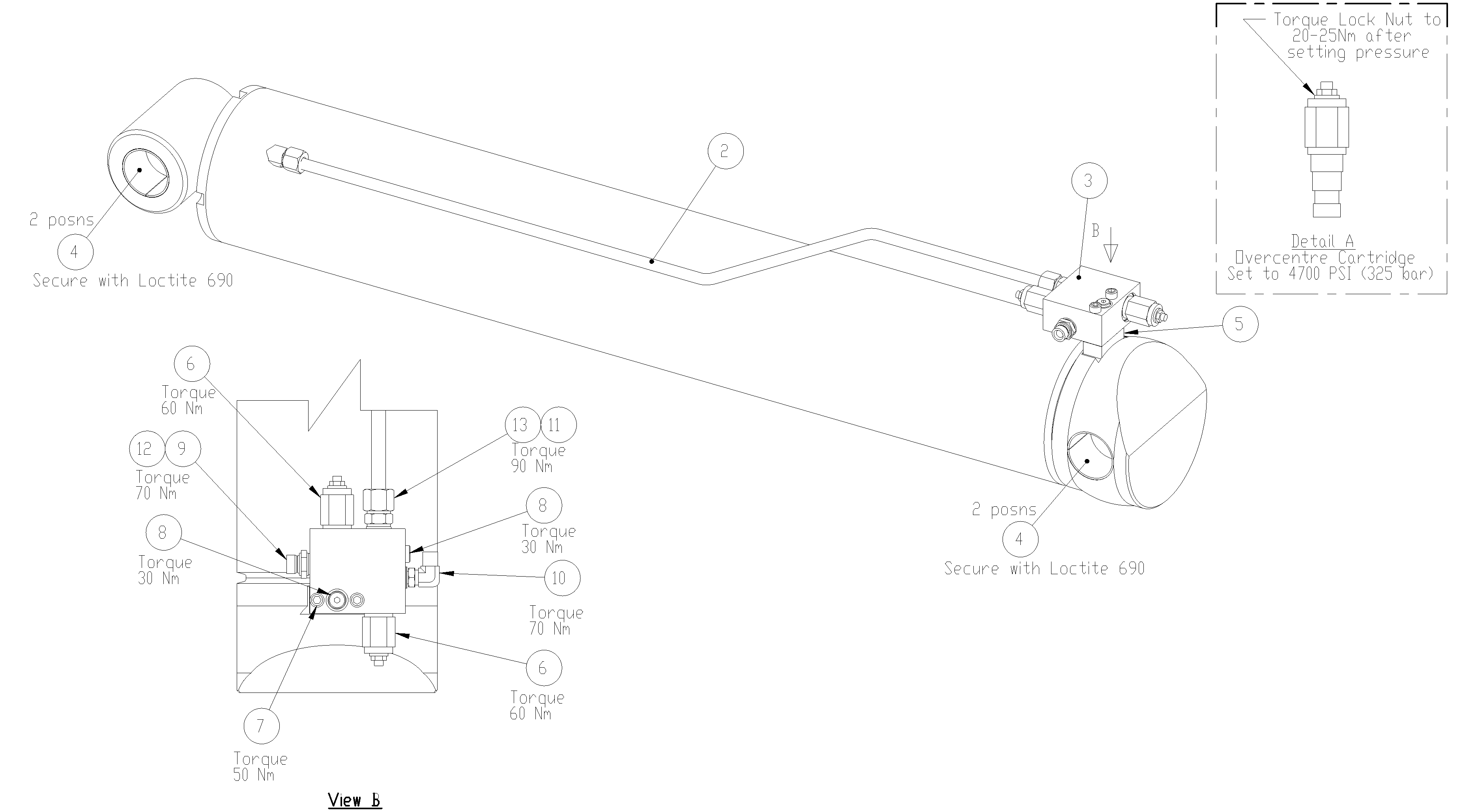

HC-40513

(HC-40512)

Cylinder Hyd Bottom Lift RH Crane Assy

(Cylinder Hyd Bottom Lift LH Crane Assy)

1

HC-40135

Cylinder Hyd Bottom Lift

1

1

2

HC-32831

(HC-32833)

Feed Tube Feed Bottom Lift Cyl RH (shown)

(Feed Tube Feed Bottom Lift Cyl LH)

1

3

HC-32294

Block Cartridge Double Port

1

4

BE-29013

Bearing Glacier 70 ID x 60 long

4

5

HC-32295

Block Riser Cartridge

1

6

HC-25754

Cartridge Overcentre Non Vent 200-30

2

7

FA-32715

Screw Socket Cap Gr 12.9 M10x90 Blk

2

8

HF-40479

Plug 1/4BSPP

2

9

HF-40456

Adaptor 1/2BSPP/M-3/8BSPP/M

1

10

HF-40485

Elbow Adj 3/8BSPP/M - 3/8BSPP/M

1

11

HF-40450

Washer Dowty Seal 1/2

1

12

HF-40449

Washer Dowty Seal 3/8

1

13

HF-40464

Adaptor 1/2BSPP/M-16mm Tube

1

HC-37150

Seal Kit Bottom Lift Cylinder

1

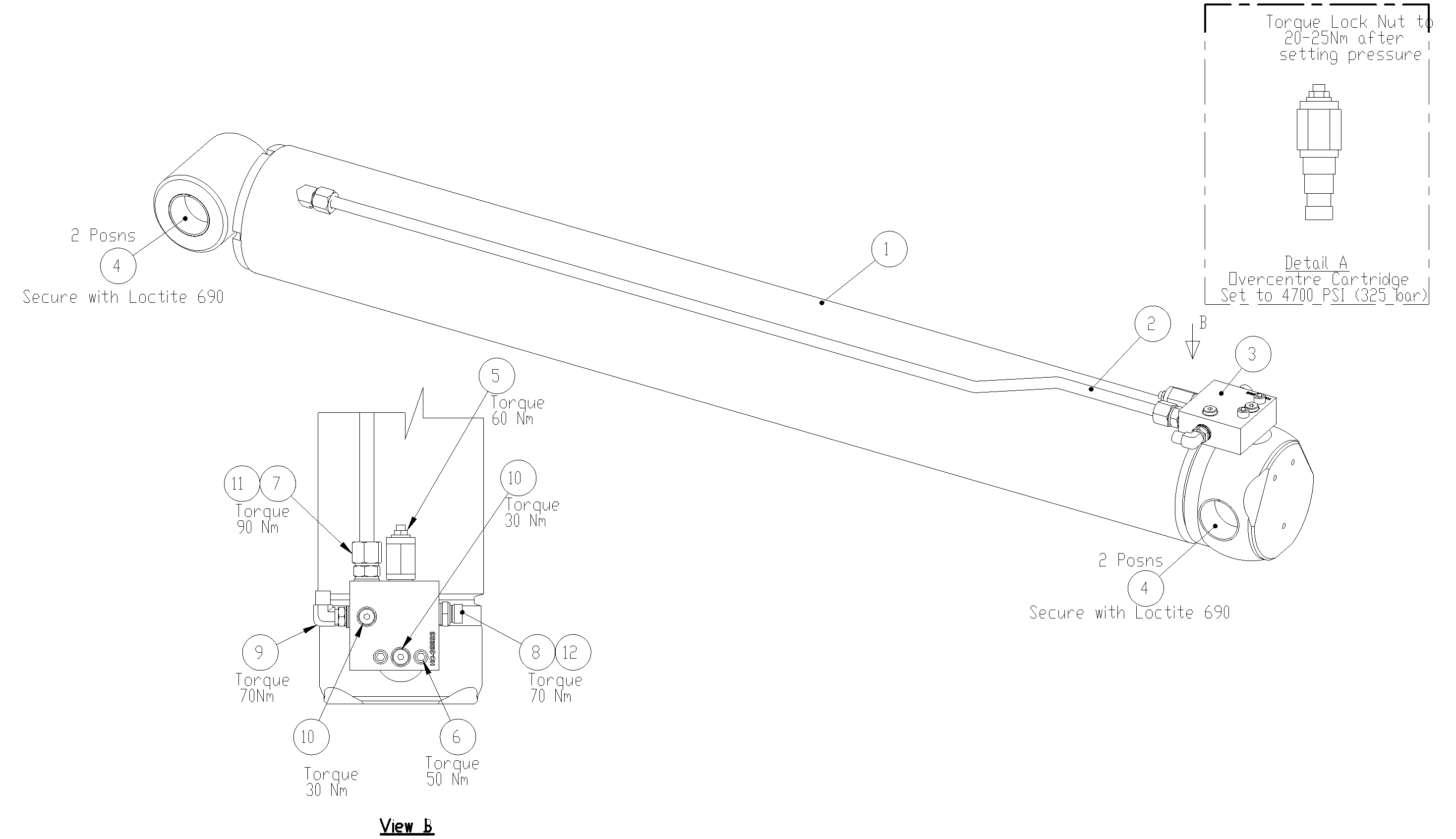

HC-40511

Assembly Cylinder Hyd Top Lift

1

1

HC-40157

Cylinder Hyd Top Lift

1

1

2

HC-32830

Feed Tube Top Lift Cylinder

1

3

HC-32293

Block Cartridge Single Port

1

4

BE-29011

Bearing Glacier 60 ID x 40 long

4

5

HC-25754

Cartridge Overcentre Non Vent 200-30

1

6

FA-28719

Screw Sckt Cap Gr12.9 M10x60 Blk

2

7

HF-40464

Adaptor 1/2BSPP/M-16mm Tube

1

8

HF-40456

Adaptor 1/2BSPP/M-3/8BSPP/M

1

9

HF-40485

Elbow Adj 3/8BSPP/M - 3/8BSPP/M

1

10

HF-40479

Plug 1/4BSPP

2

11

HF-40450

Washer Dowty Seal 1/2

1

12

HF-40449

Washer Dowty Seal 3/8

2

HC-37151

Seal Kit Top Lift Cylinder

1

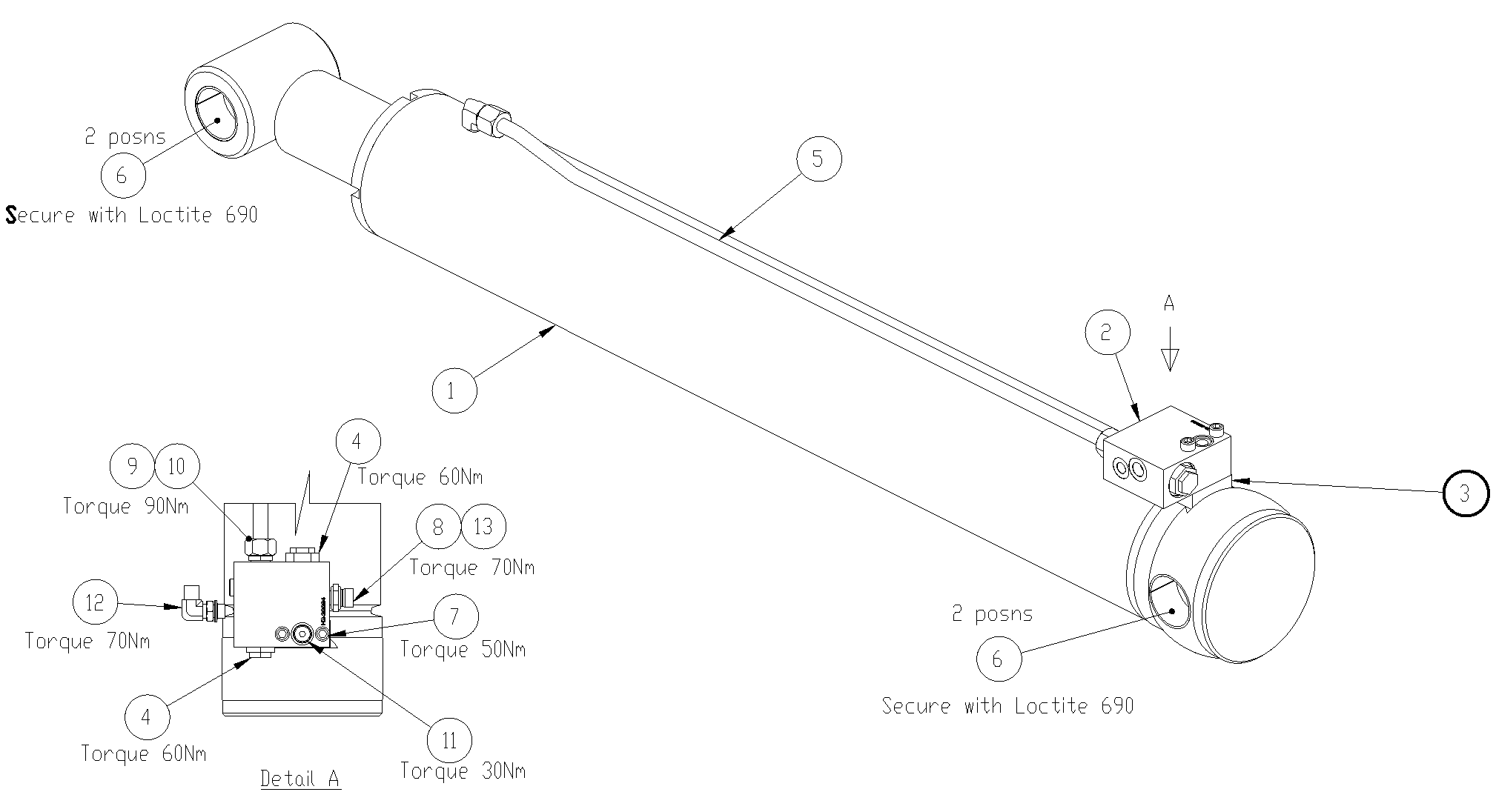

HC-41263

Assembly Cylinder Hyd Stab Tilt

1

HC-39536

Cylinder Hyd Stabiliser Tilt

1

1

2

HC-32294

Block Cartridge Low Height Double Port

1

3

HC-32295

Block Riser Cartridge

1

4

HC-25143

Cartridge Pilot Check

2

5

Feed Tube Stab Tilt Cylinder

1

6

BE-29011

Bearing Glacier 60 ID x 40 long

4

7

FA-32715

Screw Socket Cap Gr 12.9 M10x90 Blk

2

8

HF-40449

Washer Dowty Seal 3/8

1

9

HF-40450

Washer Dowty Seal 1/2

1

10

HF-40464

Adaptor 1/2BSPP/M-16mm Tube

1

11

HF-40479

Plug 1/4BSPP

2

12

HF-40485

Elbow Adj 3/8BSPP/M - 3/8BSPP/M

1

13

HF-40456

Adaptor 1/2BSPP/M-3/8BSPP/M

1

HC-38047

Seal Kit Stabiliser Tilt

1

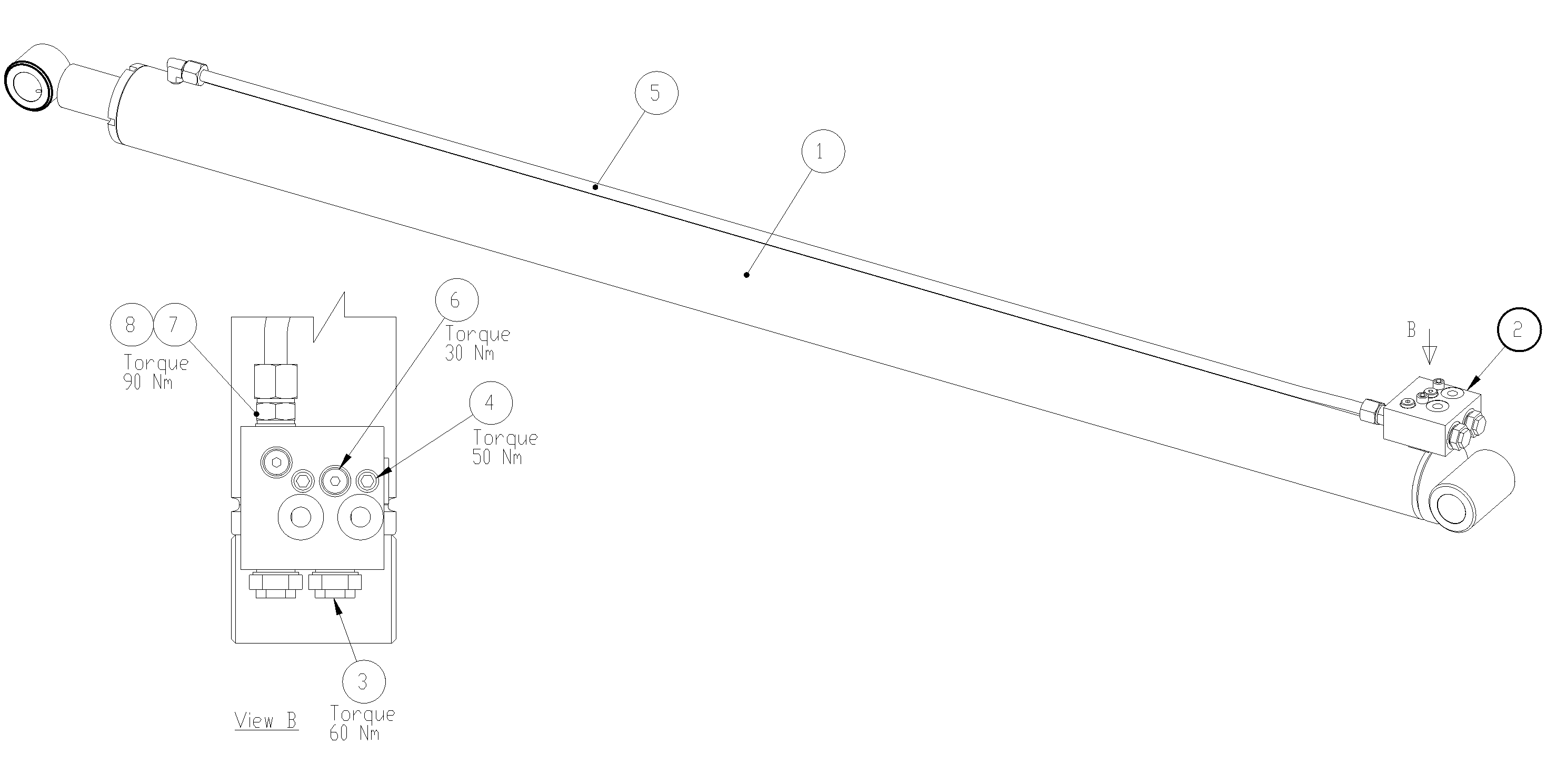

HC-41262

Assembly Cylinder Hyd Stabiliser Extend

1

HC-39702

Cylinder Hyd Stab Extn

1

1

2

HC-23366

Block Cartridge Double Port

1

3

HC-25143

Cartridge Pilot Check

2

4

FA-28719

Screw Socket Cap Gr 12.9 M10X60 Blk

2

5

Feed Tube Stabiliser Ext Cylinder

1

6

HF-40479

Plug 1/4BSPP

2

7

HF-40464

Adaptor 1/2BSPP/M-16mm Tube

1

8

HF-40450

Washer Dowty Seal 1/2

1

HC-37153

Seal Kit Stabiliser Extension

1

1

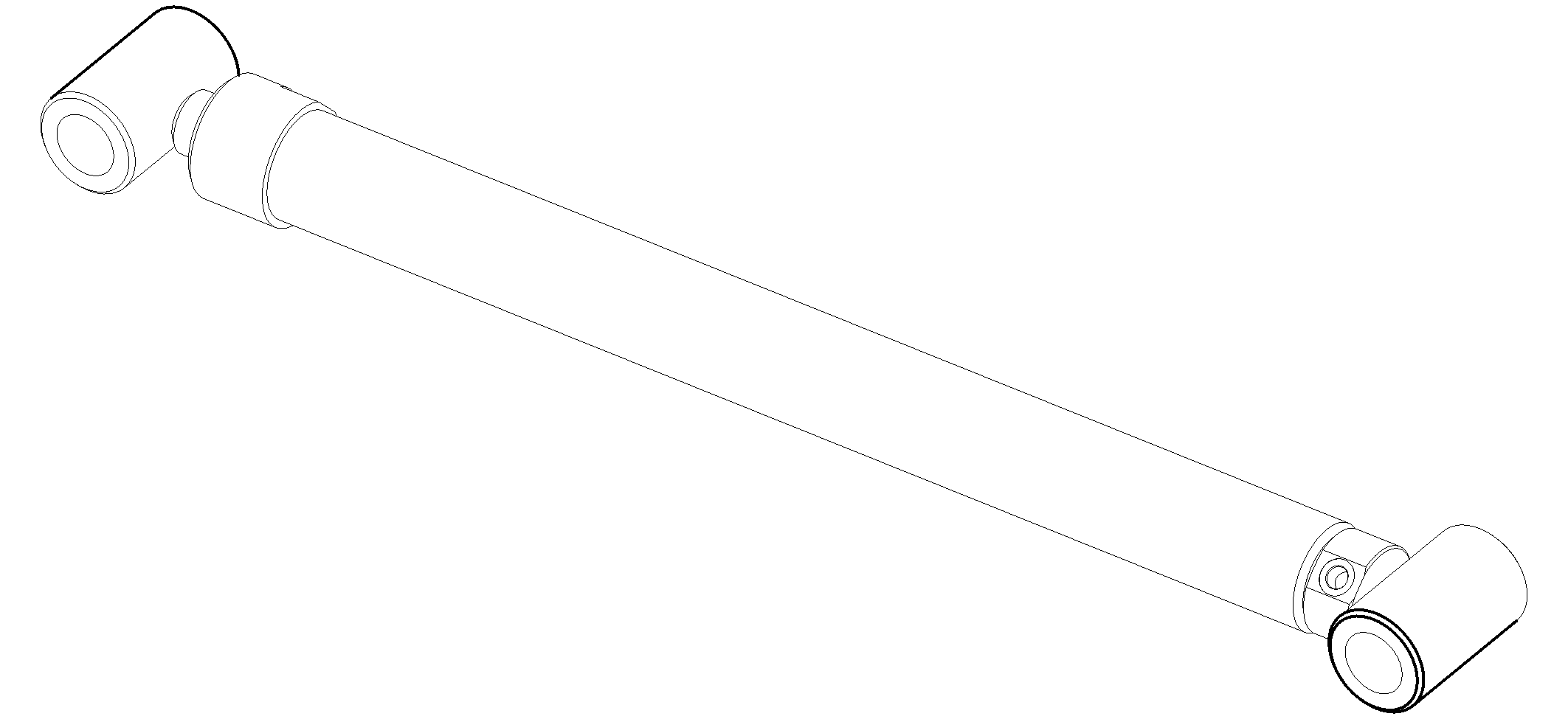

HC-39538

Cylinder Hyd Stab Lower Leg

1

1

HC-37820

Seal Kit Stabiliser Extension

1
