This topic lists the options available for assembling the parts which make up a hydraulic control valve bank for control of Sidelifter crane arms.

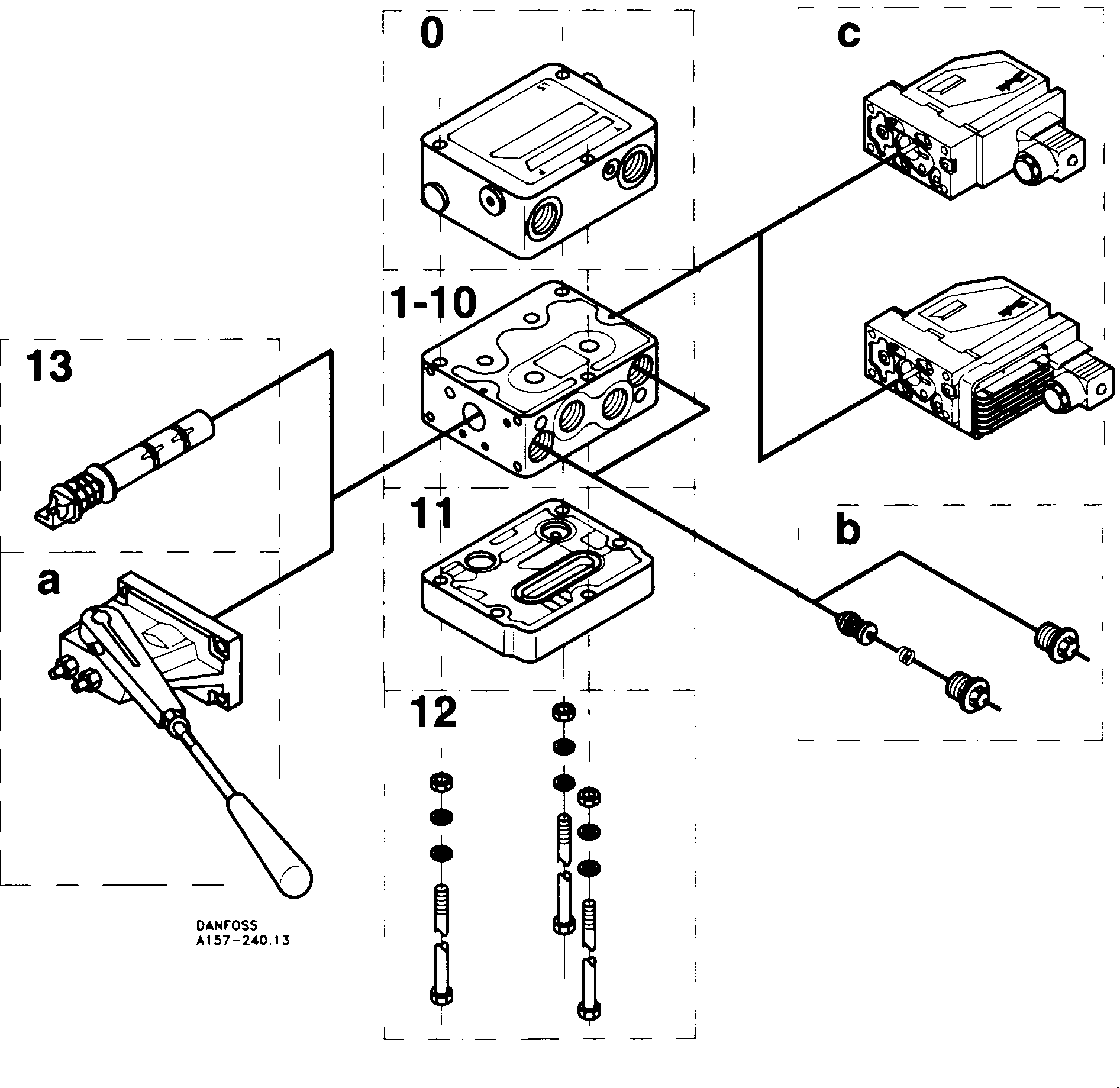

The diagram below shows the parts schematics. The tables below the diagram show the options of each component available.
0
|
|
|
|
PVP Pump side modules
|
|
Code 157b...(pipe threads, ISO 228/1)
|
For PVE
|
Open centre T=G3/4, P=G3/4
|
5110
|
Closed centre T=G3/4, P=G3/4
|
5111
|
Weight (kg)
|
3.0
|
|
|
|
|
1-10
|
PVB Basic Valves
Code No 157b... (Pipe threads, ISO228/1)
|
No facilities for shock valves
A & B
|
Facilities for shock valves
A & B
|
With check valve
|
6100
|
6120
|
With Compensator valve
|
6200
|
6220
|
With compensator valve,
LS A/B relief valve and
LSA/B shuttle valve
|
6202
|
6222
|
Weight (kg)
|
3.1
|
3.0
|
|
|
|
11
|
End Plates PVS, PVS1
|
|
|
Code No. 157B...
|
|
Weight (kg)
|
PVS No LX
|
2000
|
0.05
|
PVS c/w LX
|
2011
|
0.05
|
|
|
|
|
12
|
PVAS, Assembly kit
Number of PVB
|
4
|
5
|
6
|
7
|
Code No. 157...
|
8004
|
8005
|
8006
|
8007
|
Weight (kg)
|
0.40
|
0.45
|
0.50
|
0.60
|
|
|
|
13
|
Standard main spools
Code No. 157b...
|
101
|
401
|
651
|
1001
|
Open centre
|
7001
|
7002
|
7003
|
7004
|
Closed centre
|
7100
|
7102
|
7103
|
7104
|
|
|
|
a
|
PVM, mechanical actuations
|
|
|
Code No. 157b...
|
Angle on base
|
Standard
|
3171
|
22.5
|
3172
|
35.7
|
|
b
|
PVLA, anti-cavitation valve
|
|
|
|
|
|
|
|
Code No. 157b...
|
|
Weight (kg)
|
Plug A or B
|
1002
|
0.04
|
PVLP, shock & anti-cavitation valve
Code No. 157b...
|
1080
|
1128
|
1175
|
Setting in bar
|
80
|
125
|
175
|
Weight (kg)
|
0.05
|
0.05
|
0.05
|
|
|
|
|
|
c
|
PVE, electrical actuation
Code No. 157b
|
12 volt
|
24 volt
|
Weight (kg)
|
PVEO
|
4216
|
4228
|
0.9
|
PVEM
|
4116
|
4128
|
1.0
|
|
