Note: Please provide the Serial Number of the sidelifter with all spare parts orders.

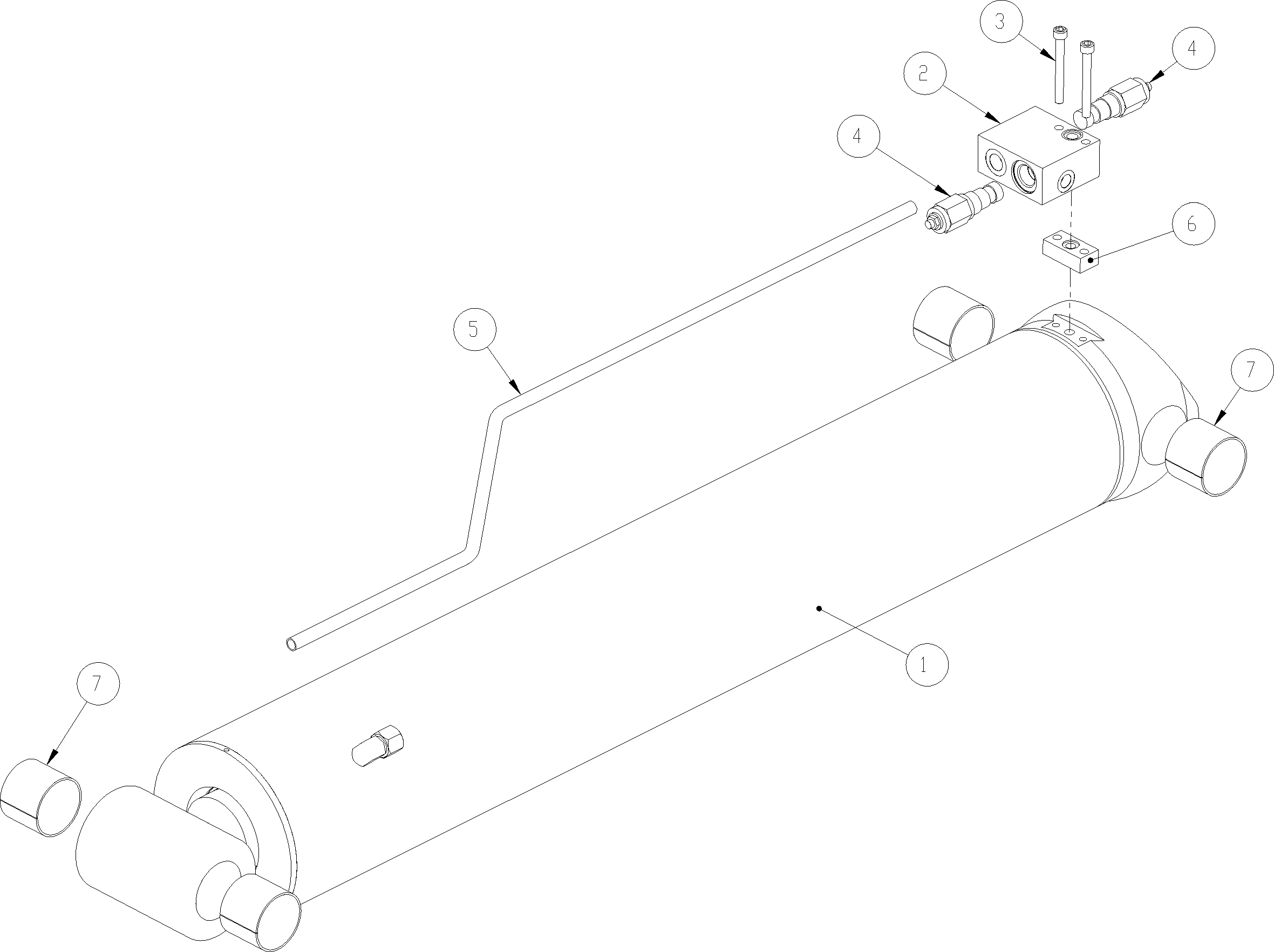

Item |
Part Number |
Description (SB361/401) |
Qty |
Notes |
|---|---|---|---|---|
|
HC-32284 |
Cylinder Hyd Bottom Lift SB361/401 RH Crane Assy (Shown) |
|
|
|
HC-33800 |
Cylinder Hyd Bottom Lift SB361/401 LH Crane Assy |
|
|
1 |
HC-38033 HC-32283 |
Cylinder Hyd Bottom Lift SB361/401 (DE) Cylinder Hyd Bottom Lift SB361/401 |
1 |
1 2 |
2 |
HC-32294 |
Block Cartridge Low Height Double Port |
1 |
|
3 |
FA-32715 |
Screw Socket Cap Gr 12.9 M10x90 Blk |
2 |
|
4 |
HC-25754 |
Cartridge Overcentre Non Vent 200-30 |
2 |
|
5 |
HC-32831 HC-32833 |
Feed Tube Feed RH Bottom Lift Cyl (shown) Feed Tube Feed LH Bottom Lift Cyl (LH Crane Assy) |
1 |
|
6 |
HC-32295 |
Block Riser Cartridge |
1 |
|
7 |
BE-29013 |
Bearing Glacier 70 ID x 60 long |
4 |
|
Note: Please provide the Serial Number of the sidelifter with all spare parts orders.

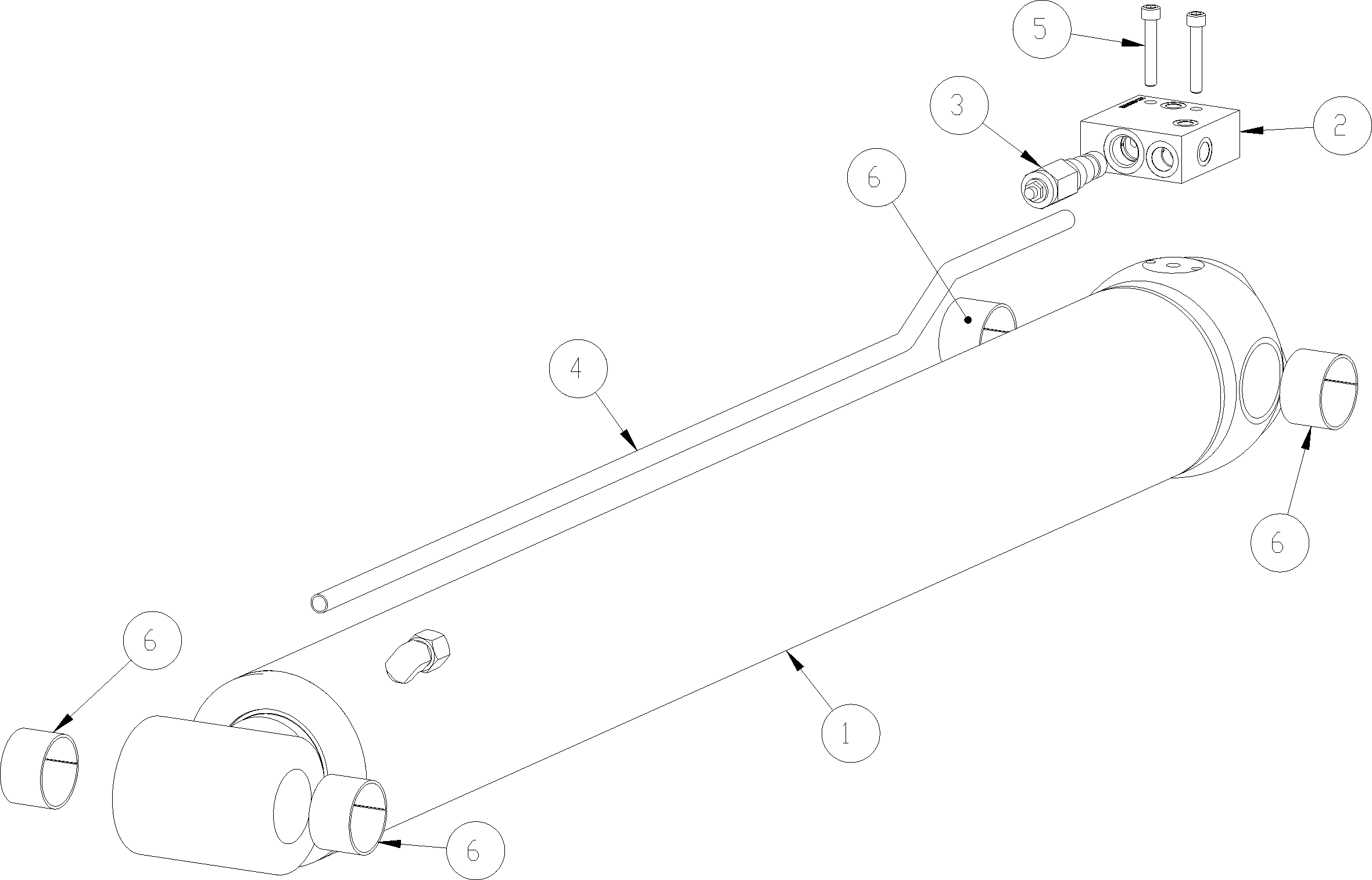

Item |
Part Number |
Description (SB361/401) |
Qty |
Notes |
|---|---|---|---|---|
|
HC-32280 HC-32282 |
Assembly Cylinder Hyd Top Lift SB361 (Shown) Assembly Cylinder Hyd Top Lift SB401 |
1 |
|
1 |
HC-38007 HC-32279 |
Cylinder Hyd Top Lift SB361 (DE) Cylinder Hyd Top Lift SB361 |
1
|
1 2 |
1 |
HC-38022 HC-32281 |
Cylinder Hyd Top Lift SB401 (DE) Cylinder Hyd Top Lift SB401 |
1
|
1 2 |
2 |
HC-32293 |
Block Cartridge Low Height Single Port |
1 |
|
3 |
HC-25754 |
Cartridge Overcentre Non Vent 200-30 |
1 |
|
4 |
HC-32829 HC-32830 |
Tube Feed Top Lift Cylinder SB361 Tube Feed Top Lift Cylinder SB401 |
1 |
|
5 |
FA-28720 |
Screw Socket Cap Gr 12.9 M10X65 Blk |
2 |
|
6 |
BE-29011 |
Bearing Glacier 60 ID x 40 long |
4 |
|
|
FA-28832 |
Washer Flat M10x21 ZP |
2 |
|
Note: Please provide the Serial Number of the sidelifter with all spare parts orders.

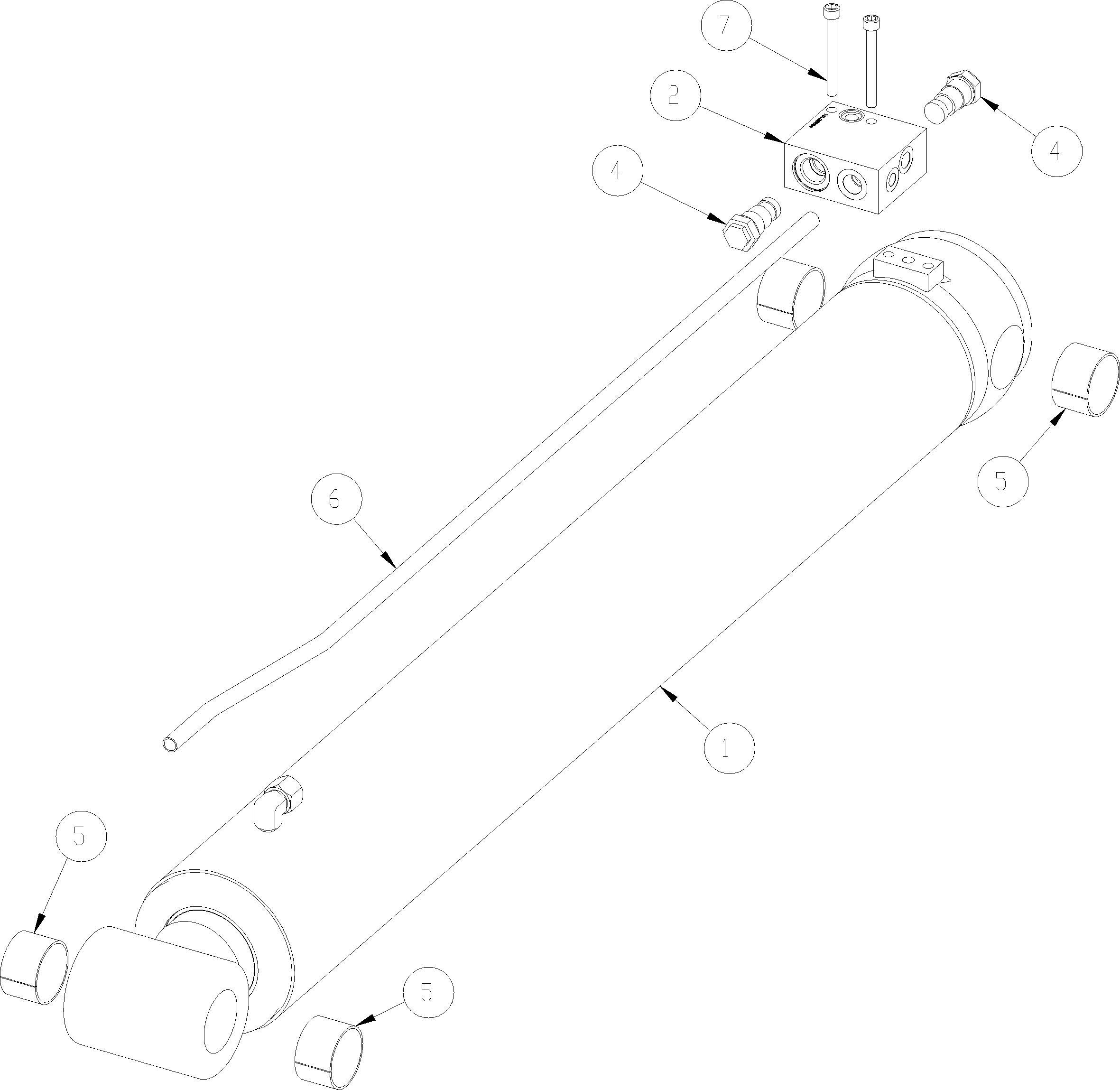

Item |
Part Number |
Description (SB361/401) |
Qty |
Notes |
|---|---|---|---|---|
|
HC-38168 HC-38167 |
Assembly Cylinder Hyd Stab Tilt LH Assembly Cylinder Hyd Stab Tilt RH |
|
|
1 |
HC-38132 |
Cylinder Hyd Stabiliser Tilt |
1 |
1 |
2 |
HC-32294 |
Block Cartridge Low Height Double Port |
1 |
|
3 |
HC-32295 |
Block Riser Cartridge |
1 |
|
4 |
HC-25143 |
Cartridge Pilot Check IH 4CK901 |
2 |
|
5 |
HC-32832 |
Tube Feed Stab Tilt Cylinder SB361/401 |
1 |
|
6 |
BE-29011 |
Bearing Glacier 60 ID x 40 long |
4 |
|
7 |
FA-28725 |
Screw Socket Cap Gr 12.9 M12x100 Blk |
2 |
|

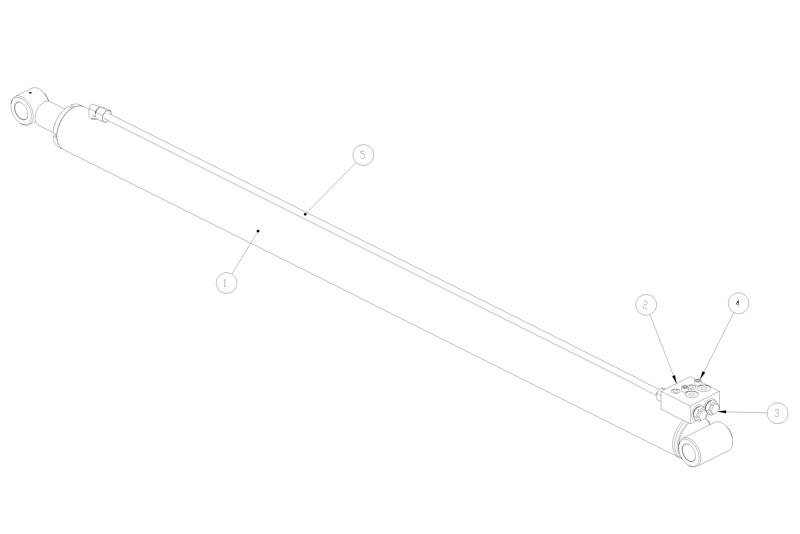

Note: Please provide the Serial Number of the sidelifter with all spare parts orders.
Item |
Part Number |
Description (SB361/401) |
Qty |
Notes |
|---|---|---|---|---|
|
HC-40243 |
SB361/401 Cylinder Hyd Stabiliser Extend |
|
|
1 |
HC-40200 |
Cylinder Hyd Stab Extn |
1 |
|
2 |
HC-23366 |
Block Cartridge Double Port |
1 |
|
3 |
HC-25143 |
Cartridge Pilot Check IH 4CK901 |
2 |
|
4 |
FA-28719 |
Screw Socket Cap Gr 12.9 M10X60 Blk |
2 |
|
5 |
HC-36975 |
Tube Feed Stab Ext Cylinder |
1 |
|
Notes:
