Notes:
For RIGHT & LEFT hand lug details, refer to "Lifting Lug Instructions" in operators manual for roll pin position (B & E).
Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
Notes |
|

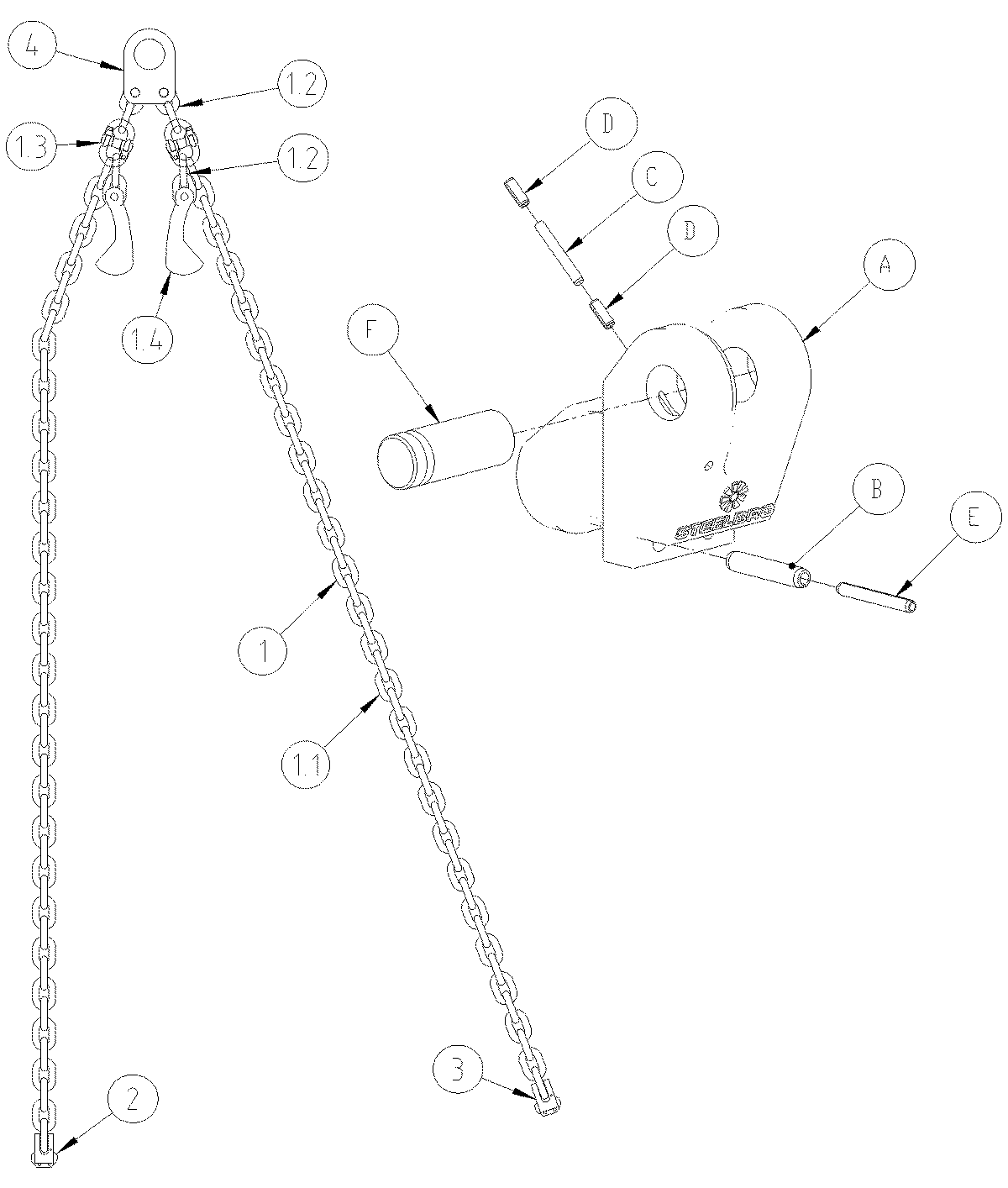

LF-33353 |
Assembly - Chain Sling (not inc. Clevis) |
2 |
per unit |
1 |
LF-29549 |
Chain leg 20mm with shortener |
2 |
per sling |
1.1 |
LF-36724 |
Chain 20mm x 49 links |
2 |
per sling |
1.2 |
LF-36187 |
Chain 20mm x 2 links |
2 or 4 |
per sling |
1.3 |
LF-15282 |
Hammerlock |
2 |
per sling |
1.4 |
LF-36173 |
Shortening Claw 20mm |
2 |
per sling |
2, 3 |
|
Lifting Lug assembly 20mm chain |
|
Refer to close up |
A |
LF-33328 |
Lifting Lug Casting 20mm Chain Type 2 |
1 |
|
B |
FA-25659 |
Pin Roll M8 x 40 Blk |
1 |
|
C |
FA-30057 |
Pin Dowel Hardened M4x28mm |
1 |
|
D |
FA-30058 |
Pin Wave M4 x 12 S/S |
2 |
|
E |
FA-30059 |
Pin Roll M5 x 40 Blk |
1 |
|
F |
LF-26200 |
Pin Lifting Hook Tested 20mm Chain |
1 |
|
4 |
PN-33260 |
Pin G Clevis |
1 |
per sling |
