Notes:
For RIGHT & LEFT hand lug details, refer to "Lifting Lug Instructions" in operators manual for roll pin position (B & E).
Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
Notes |
|
LF-33352 |
Complete Assembly - Chain Sling (not inc. Clevis) |
2 |
per unit |
1 |
LF-36199 |
Chain 16mm x 66 link |
2 |
per sling |
1.1 |
LF-32489 |
Shortening Claw VIP 16mm |
2 |
per sling |
3, 4 |
|

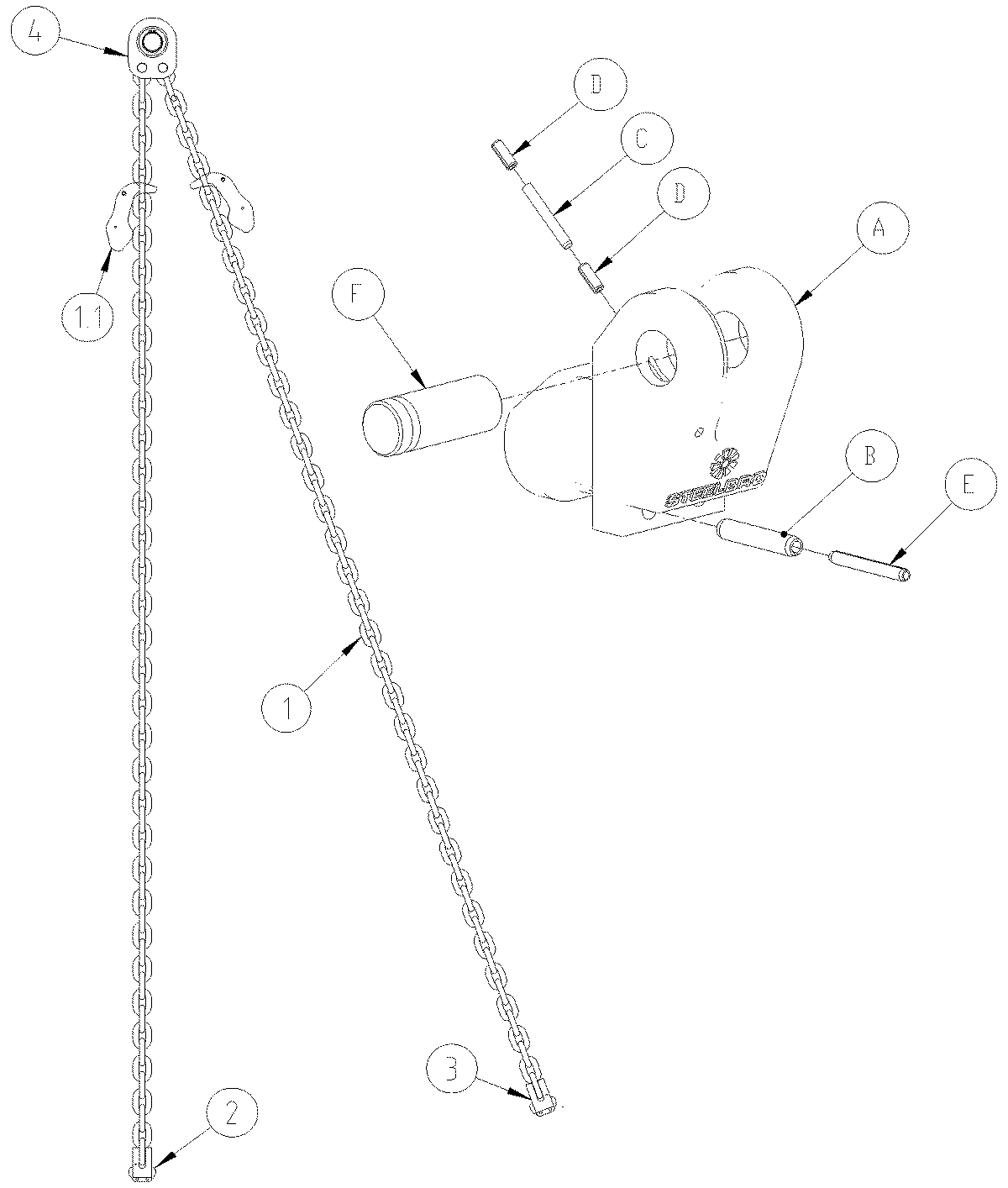

Lifting Lug assembly 16mm chain |
|
Refer to close up |
A |
LF-34974 |
Lug Lifting Cast 16mm Chain Type 2 |
1 |
|
B |
FA-25659 |
Pin Roll M8 x 40 Blk |
1 |
|
C |
FA-30057 |
Pin Dowel Hardened M4x28mm |
1 |
|
D |
FA-30058 |
Pin Wave M4 x 12 S/S |
2 |
|
E |
FA-30059 |
Pin Roll M5 x 40 Blk |
1 |
|
F |
LF-26200 |
Pin Lifting Hook 20mm Chain |
1 |
|
5 |
PN-40425 |
Pin G Clevis |
1 |
per sling |
