Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
Notes |

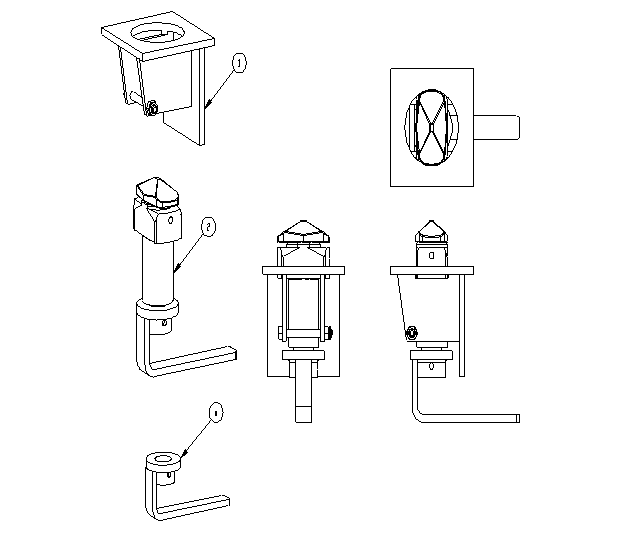

1 |
TP-31459 |
Housing For Twistlock C/W Bolt & Spacer |
1 |
|
2 |
TP-39893 |
Centre Twistlock C/W Shear Pin |
1 |
1 |
a |
CP-18000 |
Handle Twistlock Single Extended |
|
|
|
TP-25850 |
Grip Handle Twistlock |
|
|
|
TP-22361 |
Ball Steel |
|
|
|
TP-22382 |
Spring Twistlock Centre |
|
|
|
FA-28750 |
Screw Socket Grub |
|
|
3 |

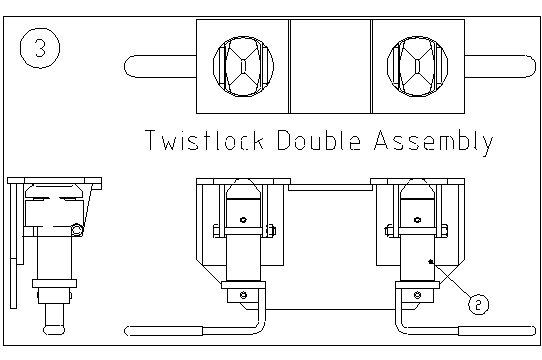

TP-25949 |
Twistlock Double YORK |
1 |
|
4 |

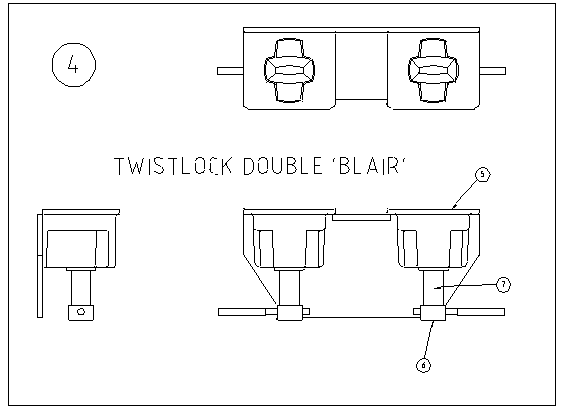

TP-33455 |
Twistlock Double Retractable BLAIR |
1 |
|
5 |
TP-33454 |
Twistlock Single Retractable |
|
|
6 |
|
Handle Retractable Twistlock BLAIR |
|
|
7 |
|
Shaft Retractable Twistlock BLAIR |
|
|
Notes:
1. Replaces part number YK-783560-01

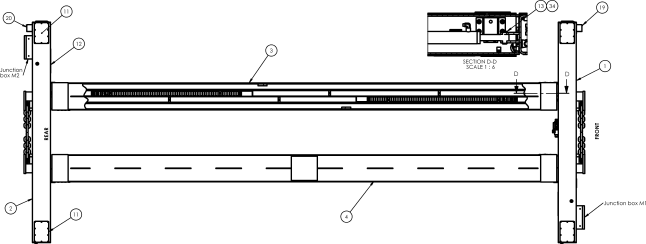

Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Description |
1 |
TF-35517 |
End Beam Assembly Front (Extendible units only) |
2 |
TF-35518 |
End Beam Assembly Rear (Extendible units only) |
3 |
TF-35519 |
# Sleeve Cylinder Assy Ext-TLF |
4 |
TF-35520 |
# Sleeve Plain Assy Ext-TLF |
7 |
TF-35545 |
Clamp Hose & Conduit Ext-TLF |
8 |
TF-35550 |
Bush Roller Ext-TLF |
9 |
TF-35566 |
Pin Roller Spindle Short Ext-TLF |
11 |
TF-35568 |
Plate Cover Twistlock Mech Ext-TLF |
12 |
TF-35569 |
Plate Cover TL Cyl Access Ext-TLF |
13 |
TF-35612 |
Pin Ext Cylinder Mount Ext-TLF |
15 |
TF-35622 |
Spacer M6 x 10 OD x 12 Long |
19 |
TF-35673 |
Bracket Assy LED Front Ext-TLF |
20 |
TF-35674 |
Bracket Assy LED Rear Ext-TLF |
22 |
BE-35589 |
Bearing Roller |
32 |
FA-28845 |
Washer Flat M16X32 ZP |
34 |
FA-30046 |
Circlip External M22 |
35 |
FA-35474 |
Circlip External Dia 14 Zinc Plated |
