Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.

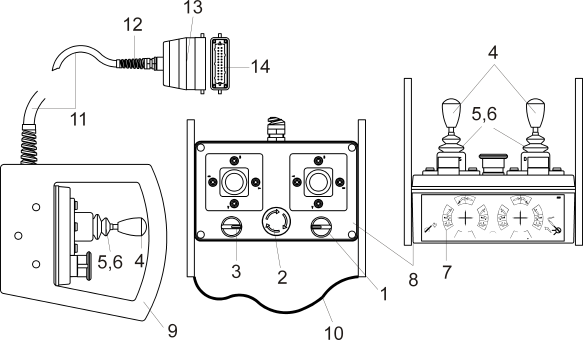

Item |
Part Number |
Description |
Qty |
|
EL-34214 |
Remote Control - whole assembly |
1 |
1 |
EL-31704 |
Mode Select Switch |
1 |
2 |
EL-31080 |
Emergency Stop |
1 |
3 |
EL-31705 |
High Speed Switch |
1 |
4 |
EL-18753 |
Joystick |
2 |
5 |
EL-19054 |
Joystick Boot |
2 |
6 |
EL-18823 |
Boot Shield |
2 |
7 |
DE-31350 |
Decal |
1 |
8 |
EL-27697 |
Enclosure |
1 |
9 |
EL-21479 |
Safety Frame |
2 |
10 |
EL-21535 |
Carry Strap |
1 |
11 |
EL-33483 |
Remote Cable |
10M |
12 |
EL-27676 |
20mm Spiral Gland |
2 |
13 |
EL-27678 |
Gland Reducer |
1 |
14 |
EL-27407 |
24 Pin Female Plug |
1 |
15 |
EL-27729 |
Contact Block, NC (not shown) |
4 |
16 |
EL-27730 |
Contact Block, NO (not shown) |
4 |
17 |
EL-21480 |
Remote Control Bracket (not shown) |
1 |
18 |
EL-27380 |
Auto Cable (not shown) |
|
