Note : Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Description |
Qty |
|

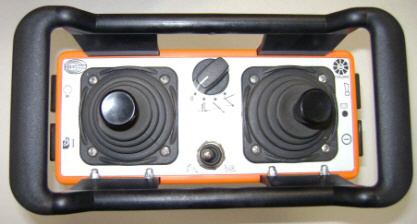

EL-37084 |
Remote Control - whole assembly |
1 |
1 |
EL-27717 |
Mode Select Switch |
1 |
2 |
EL-27721 |
Emergency Stop |
1 |
3 |
EL-27716 |
High Speed Switch |
1 |
4 |
EL-18753 |
Joystick |
2 |
5 |
EL-19054 |
Joystick Boot |
2 |
6 |
EL-18823 |
Boot Shield |
2 |
7 |
DE-21229 |
Decal |
1 |
8 |
EL-27521 |
Enclosure |
1 |
9 |
EL-21479 |
Safety Frame |
2 |
10 |
EL-21535 |
Carry Strap |
1 |
11 |
EL-33483 |
Remote Cable |
10M |
12 |
EL-27676 |
20mm Spiral Gland |
2 |
13 |
EL-27409 |
Hood 24 Way Single Latch weidemuller |
1 |
14 |
EL-27407 |
24 Pin Female Plug |
1 |
15 |
EL-27729 |
Contact Block, NO (not shown) |
4 |
16 |
EL-27730 |
Contact Block, NC (not shown) |
4 |
|
|
Transmitter |
Cable |
EL-39925 |
EL-38016 |
|
|
Note : For transmitter parts see Remote - Radio parts.
|
|
|
|
Transmitter |
Receiver |
Selector Knob |
Joystick |
EL-41411 |
Digital EL-39924 Analogue EL-39926 |
EL-41315 |
EL-41310 |
|
|
|
|
|
|
|
|
Battery |
Charger |
E-Stop Button |
Switch Hi/Lo |
EL-41309 |
EL-41316 |
EL-41313 |
EL-41314 |
|
|
|
|
|
|
|
|
Antenna |
Ion |
|
|
EL-41317 |
EL-41311 Note: Receiver S/N required. |
|
|
|
|
|
|
