Screen Image

Explanation

This message can appear for either the Front or Rear ECU

• Memory Sector One of the Rear ECU saves the:
  • Last Stabiliser Extension
  • Last Load
  • Operating Hours
  • Estimated Number of Lifts (only from 2007)
  • Next Service Due
• The Rear ECU Memory Sector One variables are accessible via the LCD screen
• The variables are saved back to memory every time the SMARTlift system is switched off
• Data corruption can occur if the ECU battery is disconnected while SMARTlift is 'ON'
• In the event of the rear memory sector being corrupted it is likely that the Operating Hours will need to be reset. Also the Next Service Due Hours should also be reset
• The Front ECU contains a duplicate of the above information but it is not accessible via the LCD screen

Causes

• ECU battery is disconnected while SMARTlift is ON

Operator Actions

• Continue to operate
• Return for service as soon as possible to check memory and reinstate data

Service Tasks

Procedure for resetting the Operating Hours

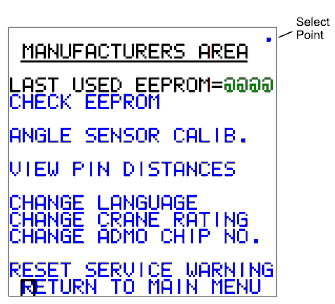

• Enter the MANUFACTURERS AREA using the required PIN

• Use the Dial to select the point in the top right hand corner of the screen

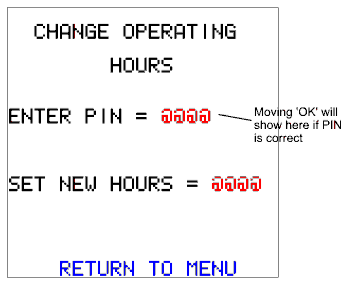

• The Change Operating Hours Screen is displayed. Enter the PIN number (STEELBRO must be contacted for authorisation) using the dial
• A moving "OK" will be displayed next to the PIN number
• The Estimated Operating Hours can now be set
• The Service Due Hours can be set in the normal way by following procedure SL0025_1GB
