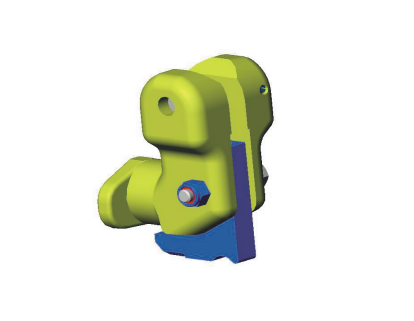

This container lifting lug is a non-handed lifting lug. The same lug can be used in both the left and right hand container corner fittings.

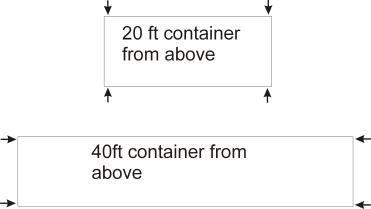

On the SB121 Sidelifter, the lifting lugs are fitted in different positions for different container sizes, as shown by the arrows in the diagram below. For a 40 foot container (if unit is designed for 40 foot containers)), fit the lugs into the corner pockets on each end of the container. For a 20' container, fit the lugs to the corner pockets on the long sides of the container.
|

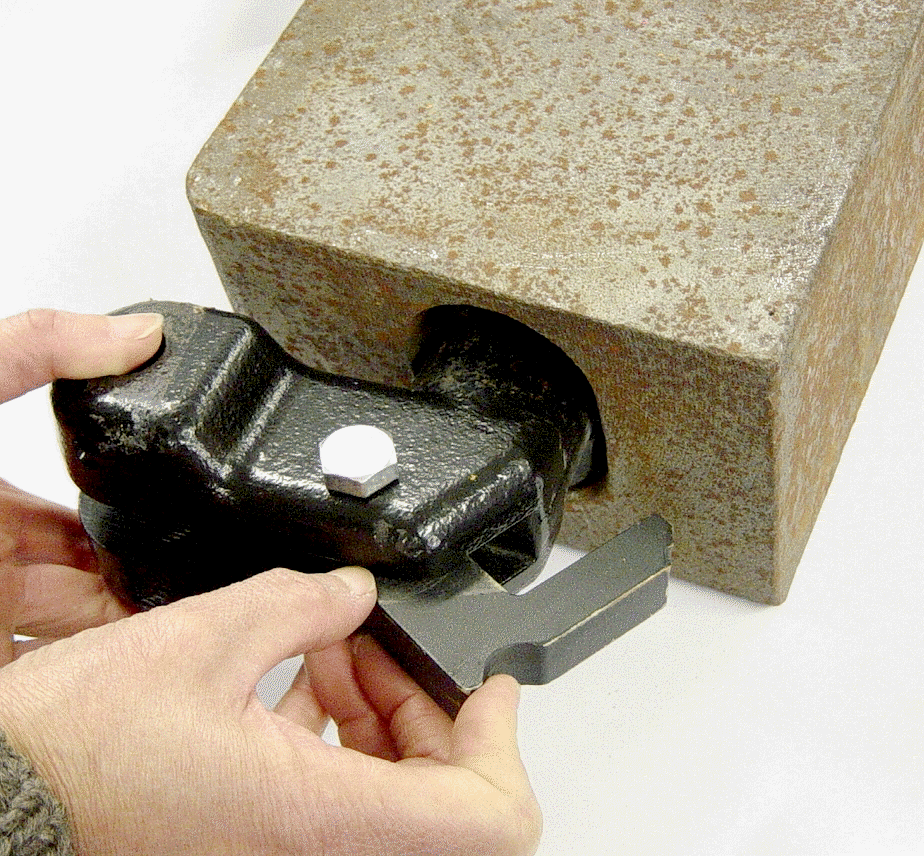

1. Pull back the latch and insert the lug with the clevis end of the lug horizontal. Position the lug in the corresponding container corner-fitting cavity. |
|
2.Rotate the lug 90° while holding the latch. |
|

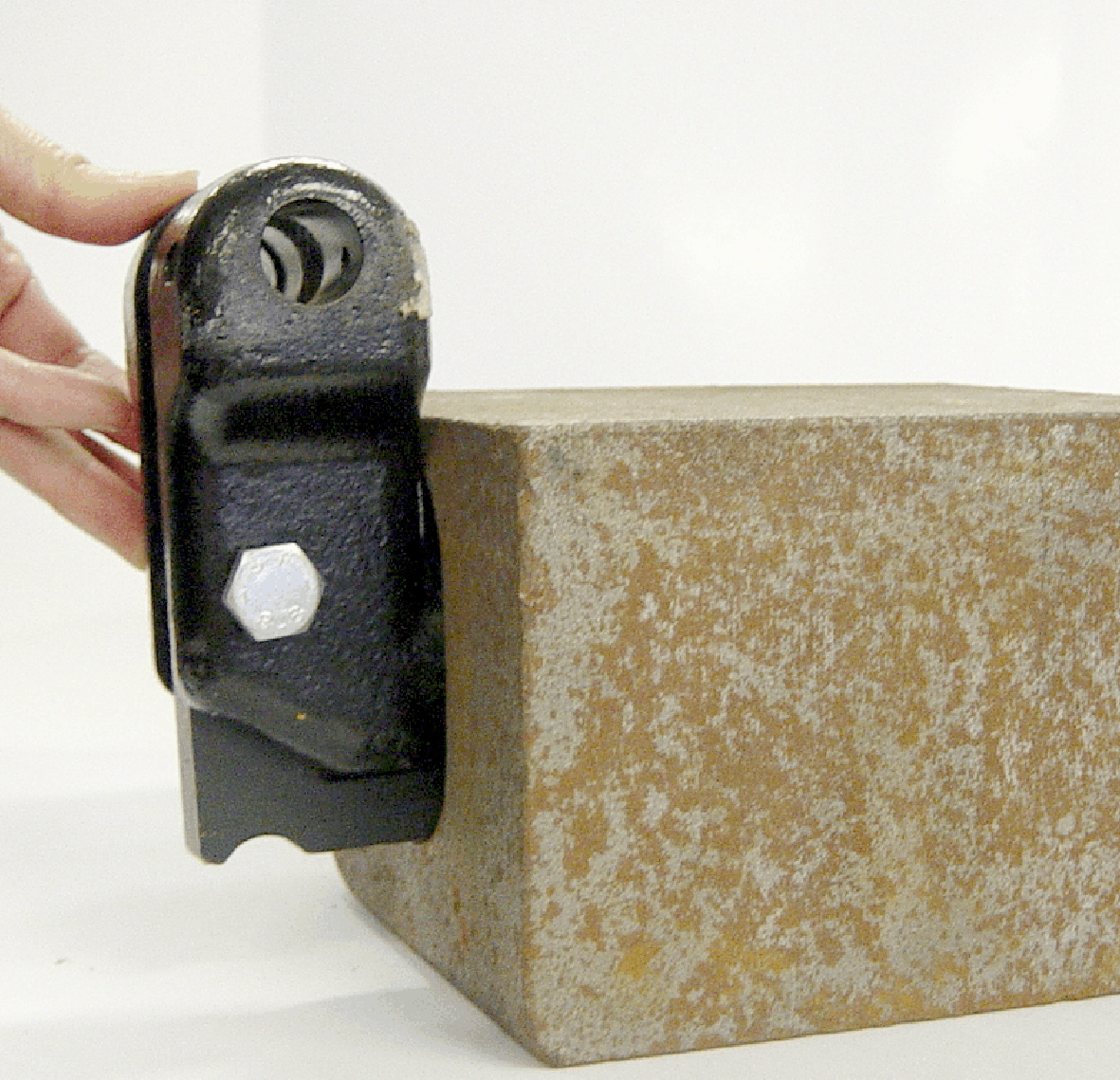

3. Lift the lug to the top of the fitting cavity and release the latch. |
