Crane Module Operation

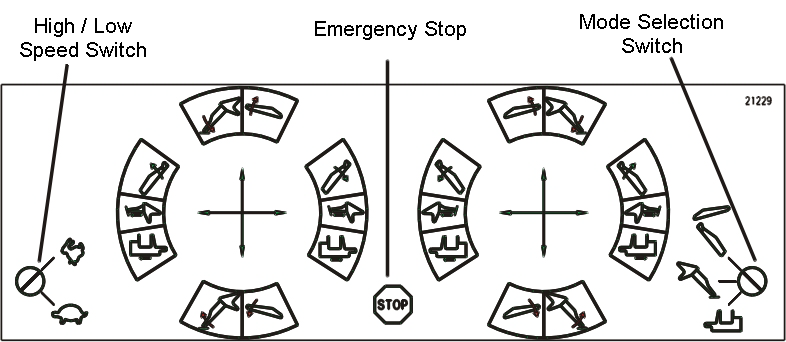

All operator controls are on the remote control box. This remote control box contains:

• Two joystick controls that operate all lift arm and stabiliser leg operations.
• A two position stay put switch for High /Low Speed
• A three position stay put switch to select module traverse , stabiliser leg and lifting arm operations.
• A Red "Mushroom" type stop button for Emergency Stop.

As an option the Sidelifter can be specified with radio remote control. Both the cable and radio controls are identical in function.

Sidelifter control valves have detachable manual levers. In the event of an electrical breakdown the operating cycle can be completed manually by using these levers. The levers are stored inside a cylindrical plastic container, located inside the chassis, near the power pack.
