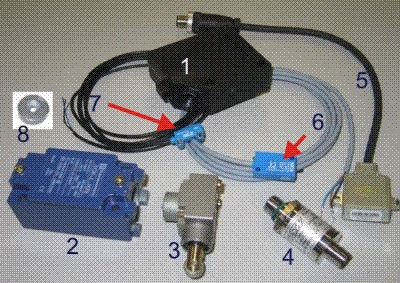

Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Item Description |
Qty |
Notes |
1 |
EL-22723 |
Switch Photo Sensor |
1 |
|
2 |
EL-27734 |
Body Lim Switch 1 X N/C 1 X N/O Telemec |
2 |
|
3 |
EL-33684 |
Plunger Head End Telemec ZCK E65 |
2 |
|
4 |
EL-32278 |
Sensor Pressure A09 Incl Damping Element |
2 |
Not on bending leg unit |
5 |
EL-37699 |
Sensor Inclinometer VTI 2-Axis M12 Plug |
2 |
Not on bending leg unit |
6 |
EL-32920 |
Sensor Magnetic Proximity |
4 |
|
7 |
EL-32919 |
Sensor Optical Proximity |
2 |
Not in use on units from SB7952 onwards |
8 |
EL-32921 |
Magnet MAG-2006-B (M3.0) |
6 |
|
9 |
EL-37327 |
Magnetic Encoder Strip Assembly |
2 |
Not shown |
|
EL-33274 |
Strip Encoder Cas Stab Extn 31 teeth |
|
Not shown |
|
FA-33662 |
Screw Sckt CSK M5x20 2P (used on EL33274) |
|
Not shown |

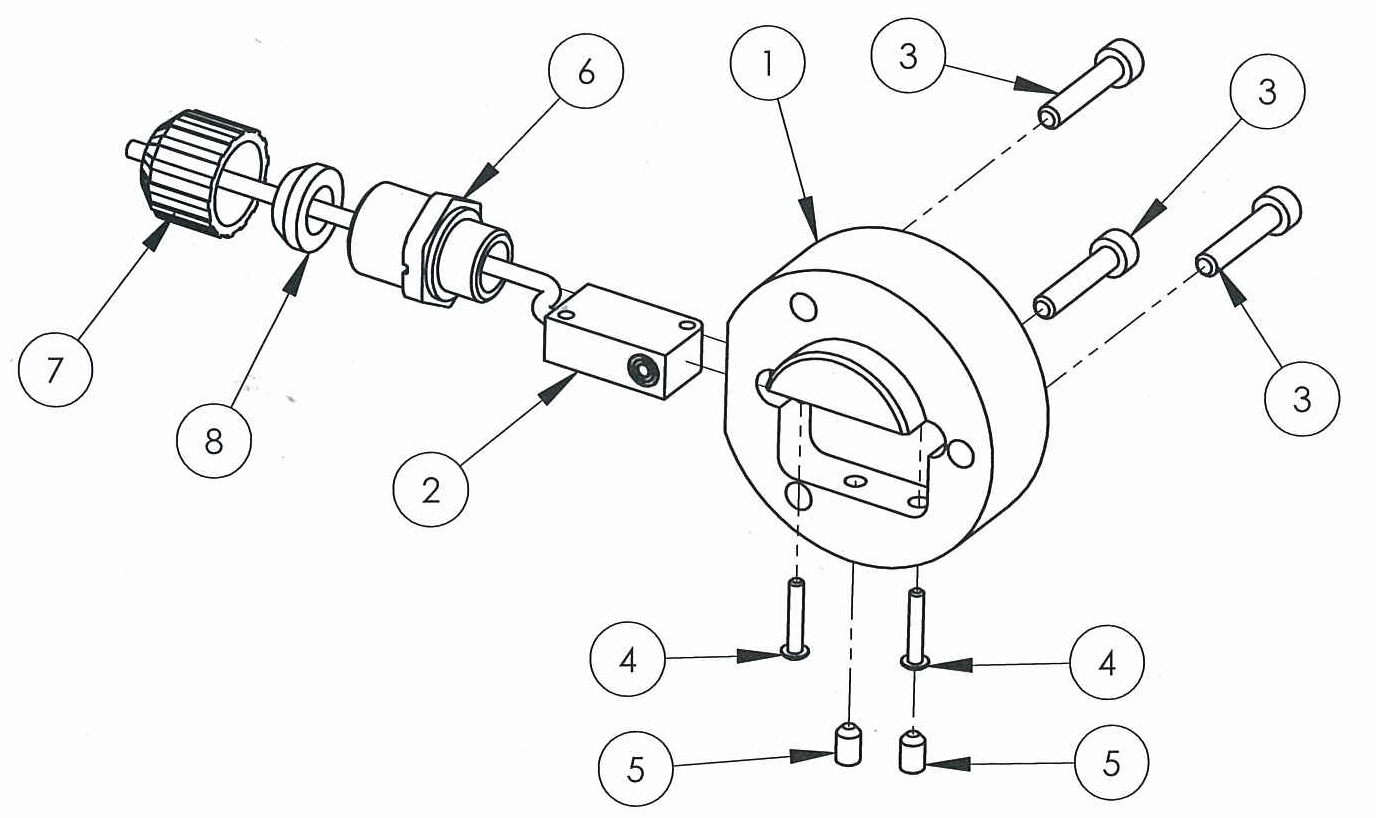

Note: Please provide the Serial Number of the Sidelifter with all spare parts orders.
Item |
Part Number |
Item Description |
Qty |
Notes |
1 |
EL-33898 |
Mount Magnetic Sensor SMARTlift |
1 |
|
2 |
EL-32920 EL-32919 |
Sensor Magnetic Proximity Sensor Optical Proximity |
1 |
(EL-33269) (EL-33270) |
3 |
FA-28693 |
Screw Socket Cap Gr 12.9 M5x25 ZP |
3 |
|
4 |
FA-33272 FA-33271 |
Screw Socket Button Head M3x16 ZP Screw Socket Button Head M3x12 ZP |
2 |
(EL-33269) (EL-33270) |
5 |
FA-33273 |
Screw Socket Grub M5x08 ZP |
2 |
|
6 |
EL-27576 |
Connector Conduit Straight 10mm 831001 |
1 |
|
7 |
EL-27578 |
Nut Conduit 10mm Type 831044 |
1 |
|
8 |
EL-27579 |
Seal Ring Conduit 10mm Type 831055 |
1 |
|
