To access Manual Override mode, via the LCD display screen enter the Single Lift manual override PIN 1970. This will allow you to override the SMARTlift system for one operation only. The system should only be overridden in the event of a system failure.
|
In manual override mode safety features of the load monitoring system are disabled and the operation of the arms is extra slow. The override will remain in place until the system is turned off or the reset pin 9999 is entered. |
Use the steps below to navigate to the Manual Override function.
STEP |
SCREEN |
ACTION |
1 |
|
Select the Menu item by pressing the display dial. |
2 |
|
Select the Manual Override menu item and press the display dial. |
3 |
|

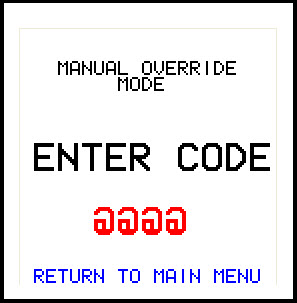

The Enter Code screen is displayed. Enter the override code.
|
4 |
|
The Manual Mode warning screen is displayed. |
