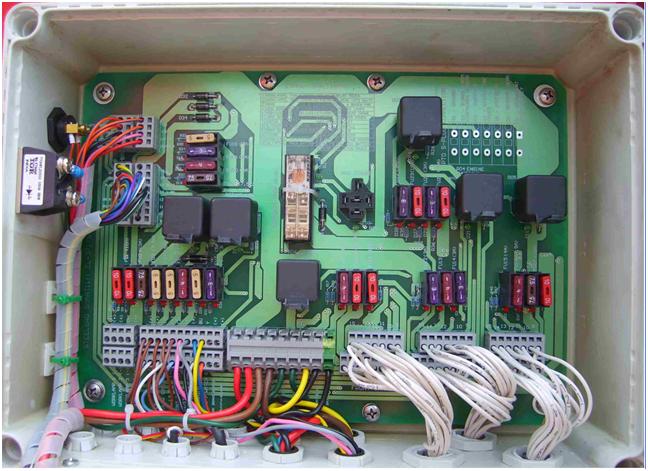

Enclosure |
E Box PCB Board Assembly-Digital |
Block Contact N/O Collar ZBE-101 |
Block Contact N/C Collar ZBE-102 |
Enclosure - EL-33673 Decal Smartlift - DE-35707 Decal Digital - DE-35709 Decal PTO - DE-35920 |
EL-37675 |
EL-31088 |
EL-31089 |
|
Note: to suit EL-37178 PCB |
|
|
|
|
|
|
Diode 70A |
Override Push Button |
Stop Mushroom Latching Head Only Telemec |
Key Starter Switch |
EL-35724 |
EL-34232 |
EL-27721 |
EL-32875 |
|
|
|
|
|
|
|
|
Relay 5 pin With Diode Protection Hella |
Relay 4 pin With Diode Protection Hella |
Connector Relay 4 & 5 Pin |
|
12v EL-33852 24v EL-36429 |
12V EL-33851 24v EL-34589 |
EL-27540 |
|
|
|
|
|
|
|
|
Terminal |
Resistor 120 Ohm |
Fuse Terminal |
EL-34622 |
EL-32876 |
EL-31980 |
|
|
|
|
|
|
|
B Box PCB Board Assembly |
Toggle Switch Cover |
Toggle Switch |
Battery Voltage Meter |
EL-37677 |
EL-33680 |
El-32869 |
EL-32868 |
Note: To suit EL-37179 PCB |
|
|
|
|
|
|
Display Graf - Syteco Time Clock Real |
Controller ESX DIOS Module 8DO |
Controller ESX 24V 1-4PWM 5-12PVG |
EL-32862 |
EL-32860 |
EL-32858 |
|
|
|
|
|
|
|
Sensor Inclinometer VTI 2-Axis M12 Plug |
Sensor Pressure A09 Incl Damping Element |
Sensor cable 5.0m |
Magnet MAG-2006-B (M3.0) |
EL-37699 |
EL-32278 |
EL-34244 |
EL-32921 |
|
|
|
|
|
|
|
|
Strip Encoder- with magnets |
Body limit switch Telemec |
Plunger Head End Telemec |
plunger stab deployed |
EL-37327 |
EL-27734 |
EL-33684 |
EL-26088 - Plunger S1-26119 - Spring
|
|
|
|
|

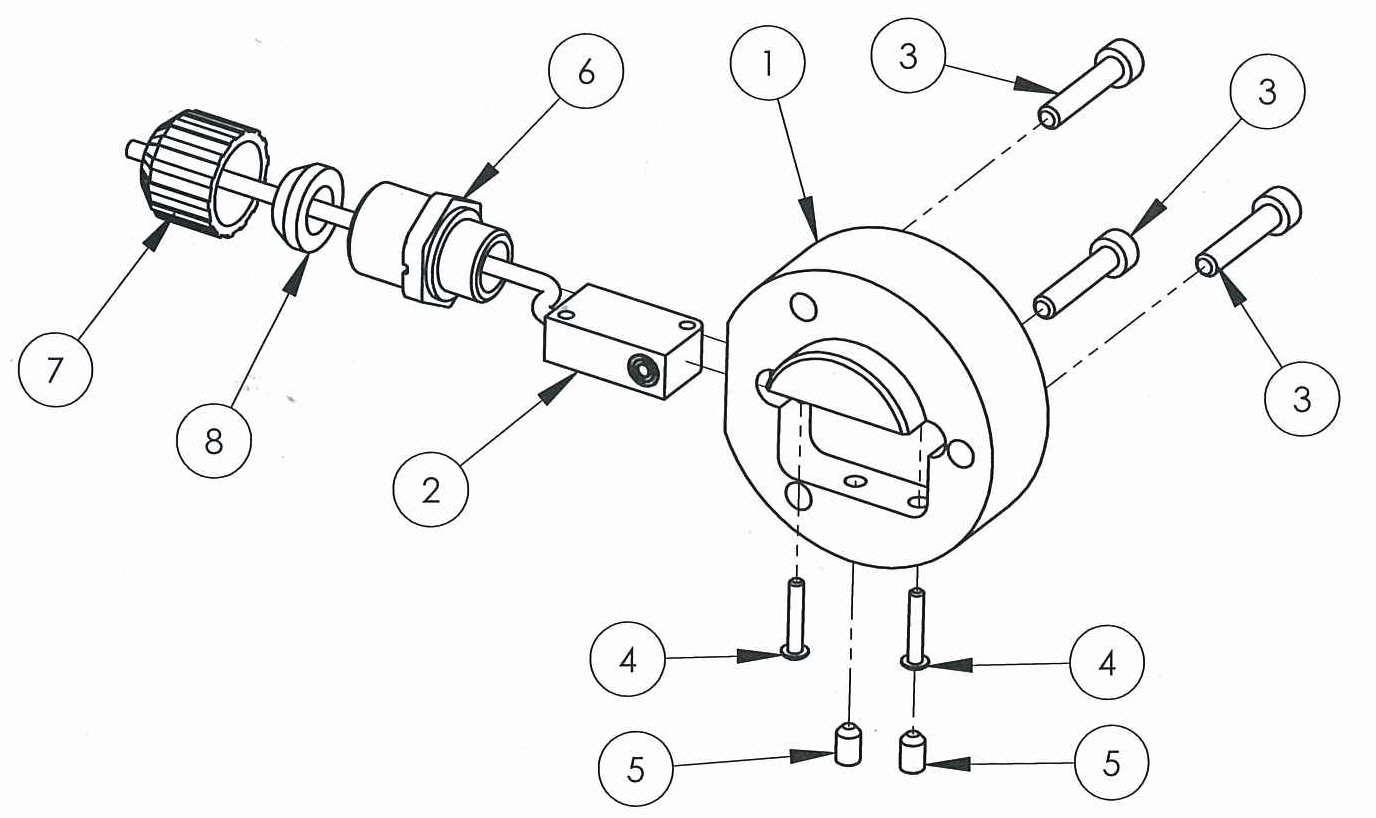

Item |
Part Number |
Description |
Qty |
1 |
EL-33898 |
Mount Magnetic Sensor SMARTlift |
1 |
2 |
EL-32920 |
Sensor Magnetic Proximity |
1 |
3 |
FA-28693 |
Screw Socket Cap Gr 12.9 M5x25 ZP |
3 |
4 |
FA-33272 |
Screw Socket Button Head M3x16 ZP |
2 |
5 |
FA-33273 |
Screw Socket Grub M5x08 ZP |
2 |
6 |
EL-27576 |
Connector Conduit Straight 10mm 831001 |
1 |
7 |
EL-27578 |
Nut Conduit 10mm Type 831044 |
1 |
8 |
EL-27579 |
Seal Ring Conduit 10mm Type 831055 |
1 |
