SL0030 Fully folded Crane and Stabiliser Angles

Models and Market

This document applies to:

• SB 330
• SB 361 Fitted with Layback Leg
• SB 361 Fitted with Horizontal leg
• SB 362
• SB 362 Fitted with Bridge Leg
• SB 401 Fitted with Layback Leg
• SB 401 Fitted with Horizontal leg
• SB 450

Information

This document shows the expected fully folded angles for various sidelifter models and configurations.

These values are a guide only as there are many external influences which can make these vary slightly. The expected accuracy is +-1 deg.

The checks must be done on a level ground.

The readings are identical for both front and rear cranes as well as for left and right hand lift units.

For SB361 - Layback Leg

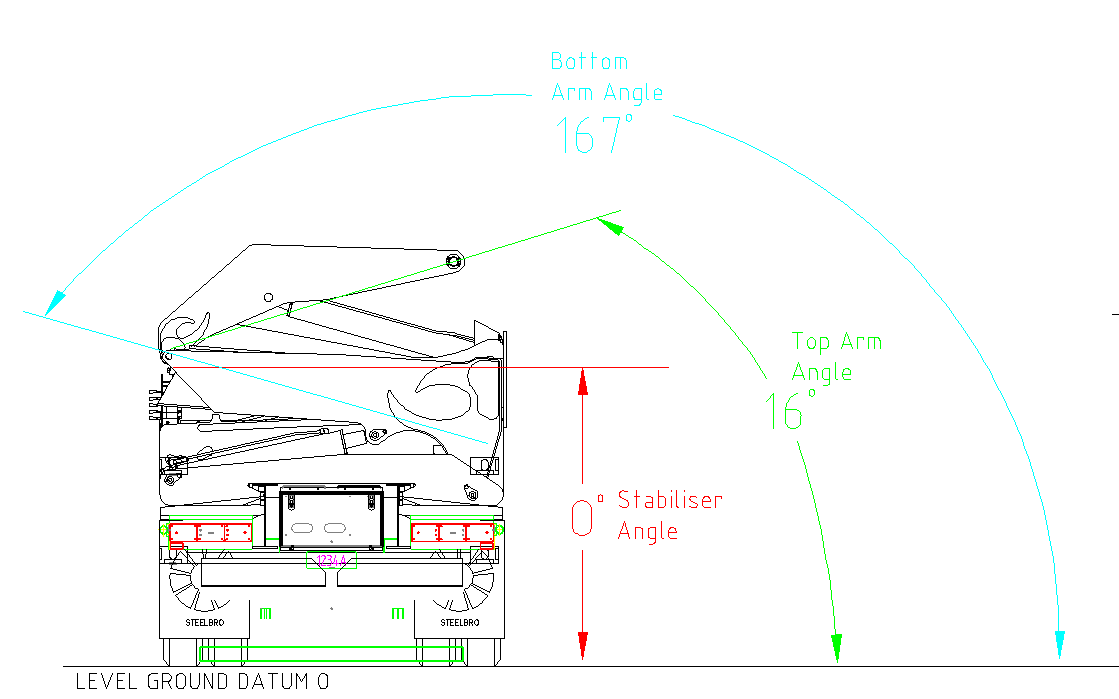

For SB361 - Horizontal Leg

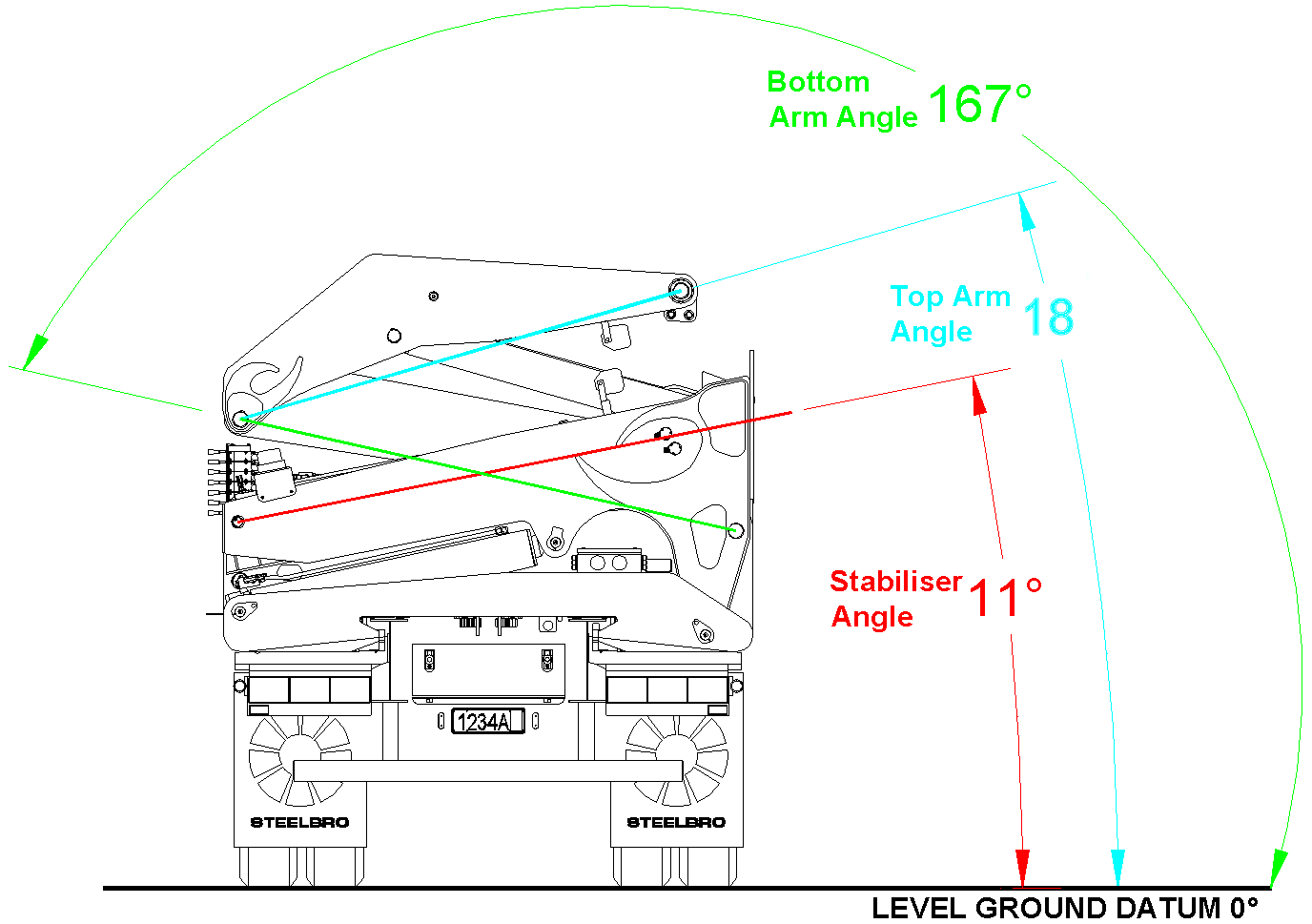

For SB401 - Layback Leg

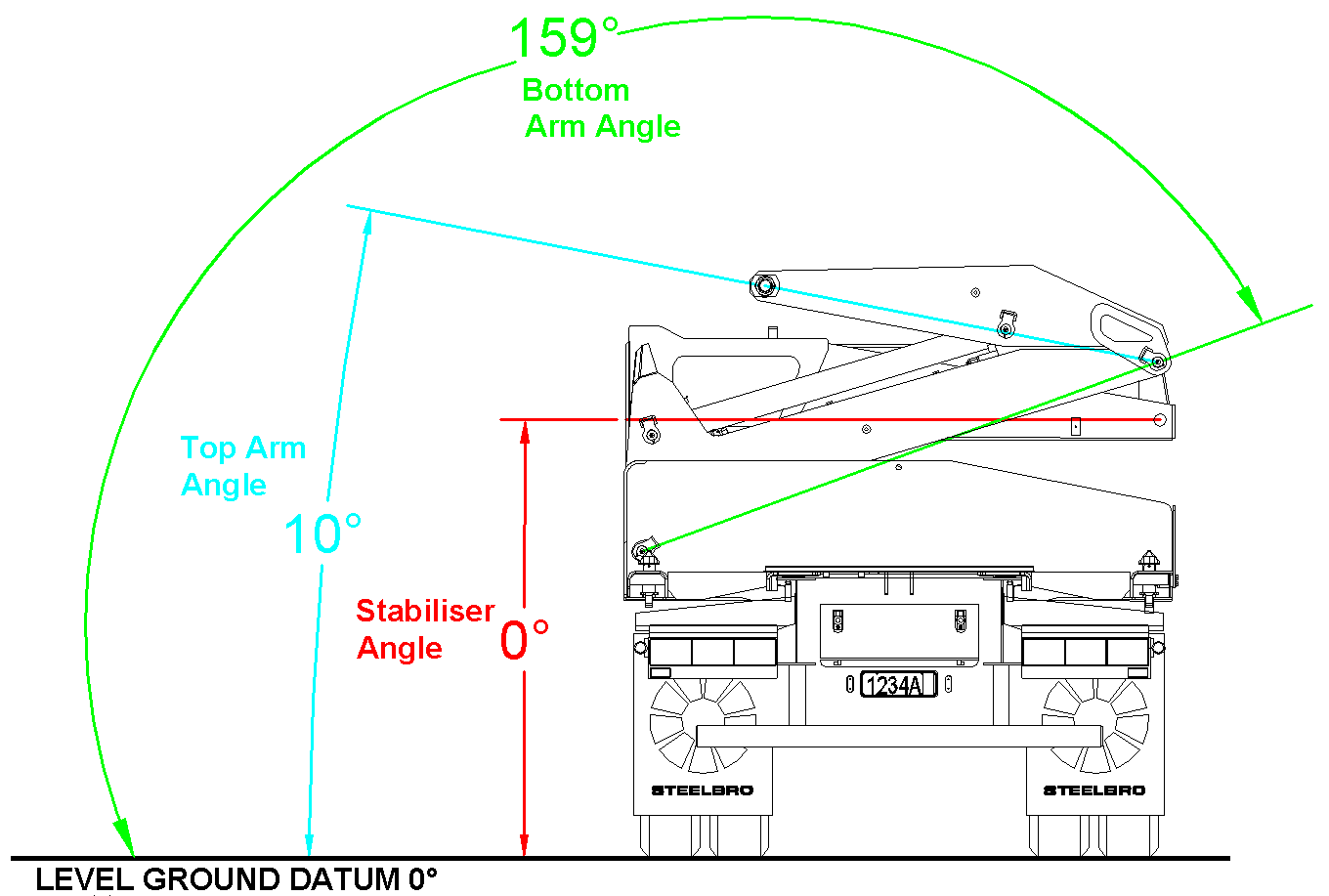

For SB330

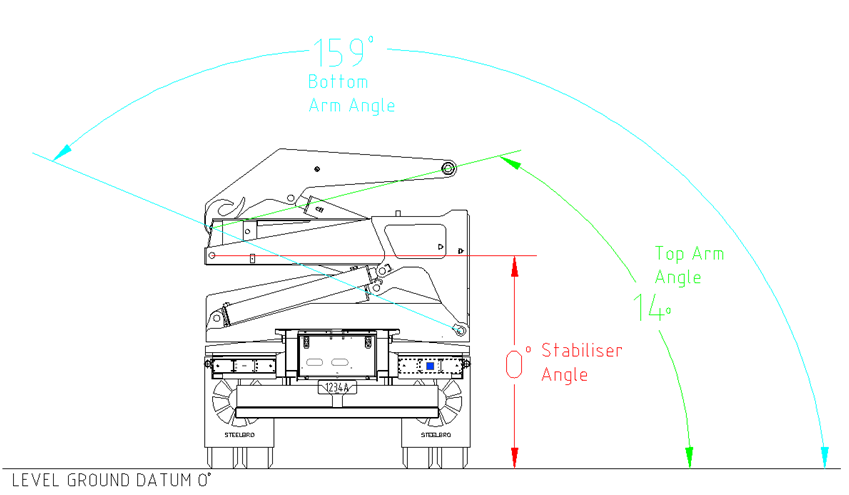

For SB362

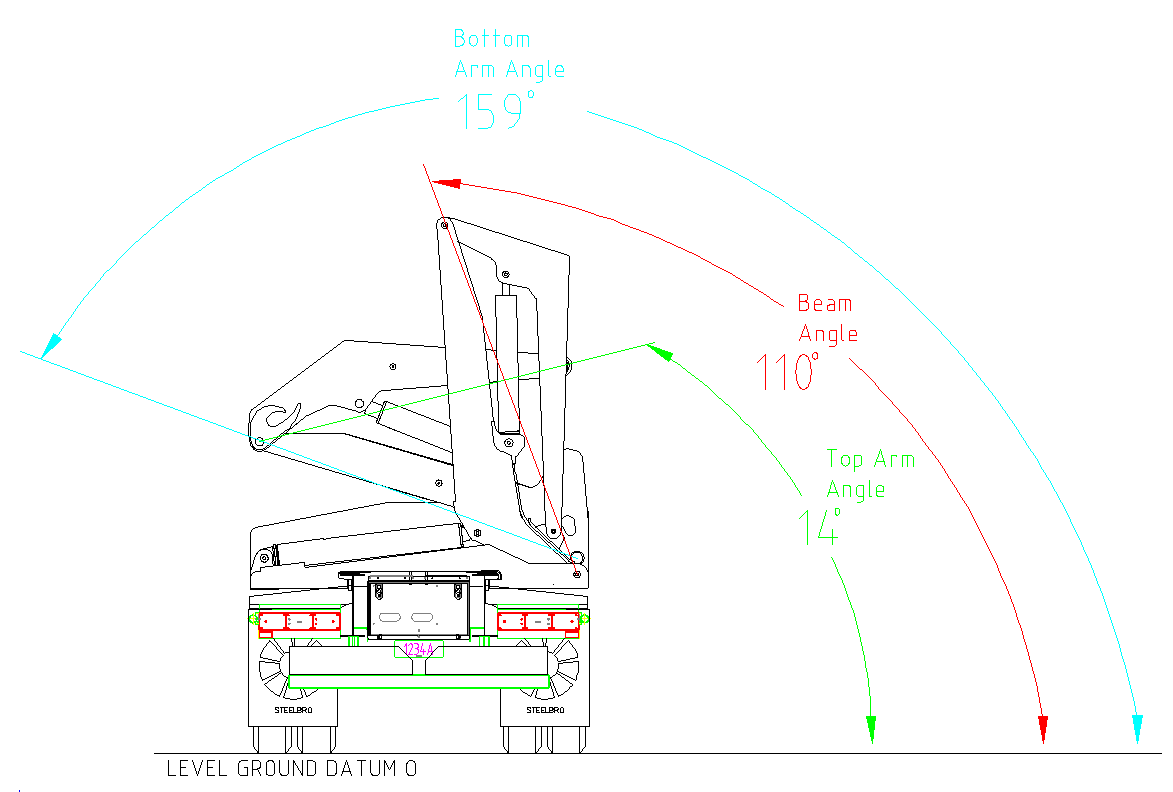

For SB362 - Bridge Beam

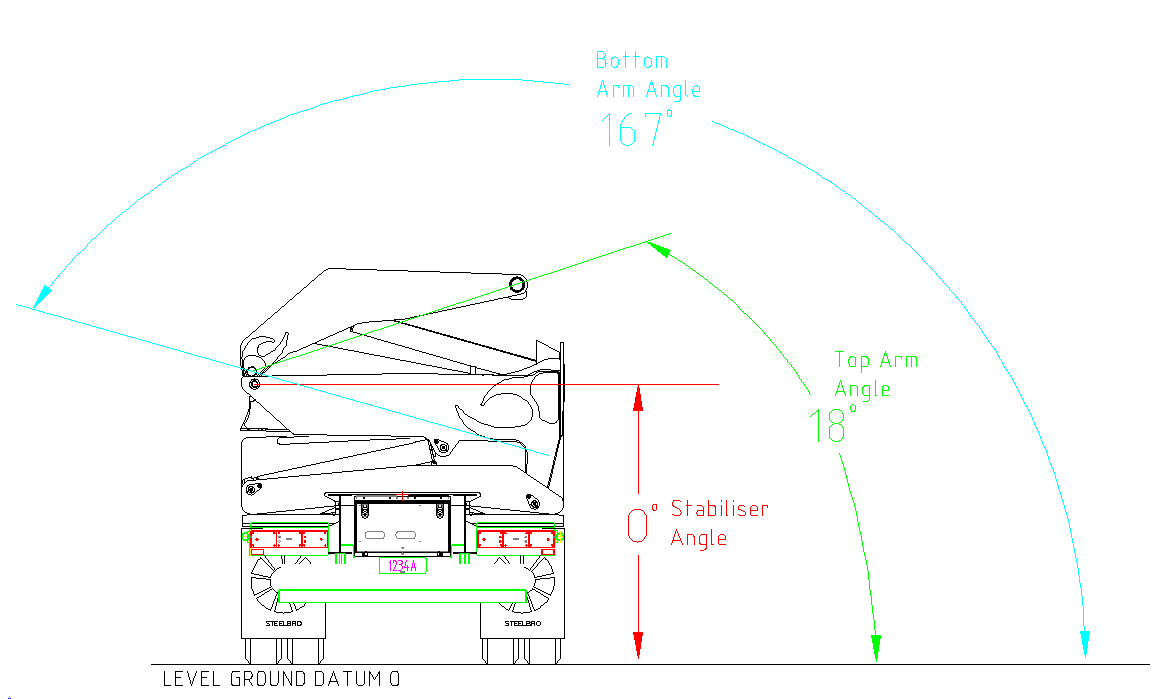

For SB450
