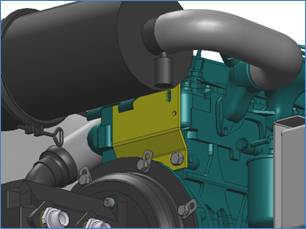

Figure 1 - Old bracket S1-19903
Figure 2 – New Bracket PP-41233
11 Feb 2011 PDF File |
Technical Bulletin |
Version 1 |
Author: Neil Savage |
The bracket for mounting the air cleaner on the standard powerpack has been changed to improve vibration characteristics.
All models & markets which have mid-chassis engines in a standard powerpack
Spare Parts:
|
|
|
Figure 1 - Old bracket S1-19903 |
|
Figure 2 – New Bracket PP-41233 |
The bracket PP-41233 can be fitted to any V2403 powerpack.
The bracket PP-41255 can be fitted to any V2203 powerpack (see Use Instructions).
Fit as shown in figure 2. On V2203 engines which have the one piece steel bell housings (as shown in figure 2), 2mm washers/packers need to be fitted (existing stainless steel tie plates can be used) between the bracket & the bell housing. On V2203 engines with the aluminium bell housing, no packers are required.
Better vibration characteristics leading to improved lifespan of powerpack
SC-00397
