L0003 How to use Container Joiners

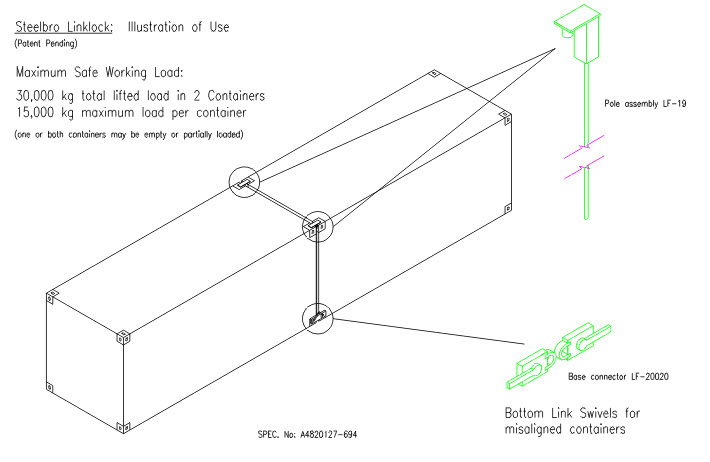

Container Joiners are also sometimes known as linklocks or container connectors. They allow the

operator to lift 2 x 20 foot containers on and off the sidelifter by linking their abutting corners

together.

The container joiner can handle containers of 8', 8'6", 9' & 9'6" Height.

Containers of unequal height can be linked together.

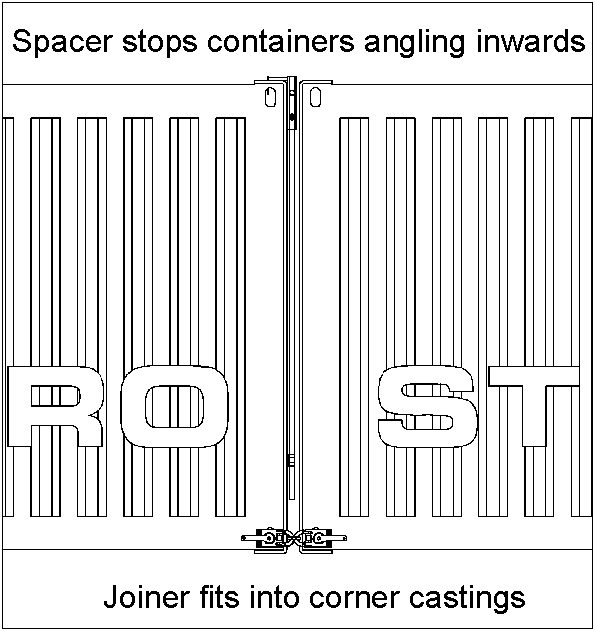

The top spacer provided takes up the clearance between the containers at the top. This helps to keep

the containers as level as possible when lifting. It also prevents damage occurring between the

containers, especially when lifting containers of unequal height.

The top spacer is fitted using a pole, adjustable in length for different height containers.

The base connector fits between the bottom corner castings of the two containers at the side. It can

swivel in all directions to take up misalignment between the containers.

When not in use, the container joiners and poles are mounted by means of special brackets to the

side of the sidelifter chassis.

Fitting

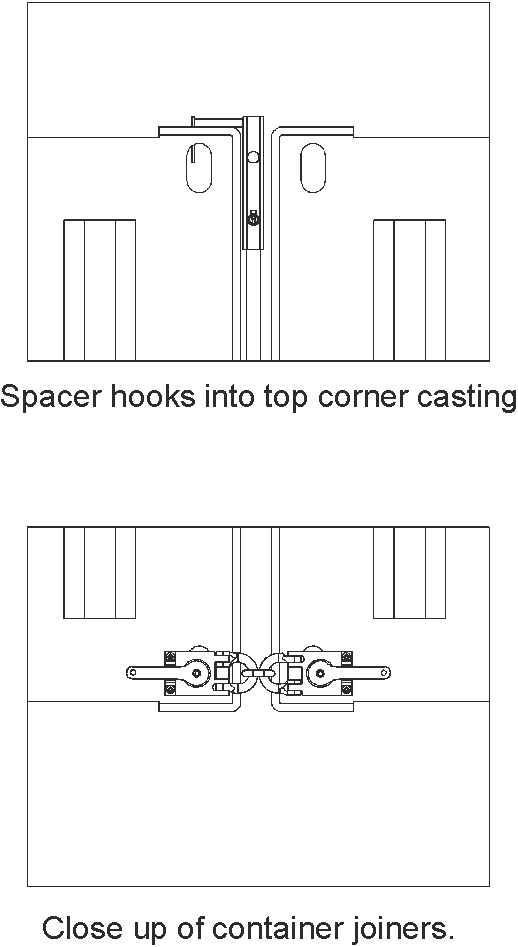

1. Hook the top spacer into the top abutting corner casting of one container, using the pole to

lift them into place (see diagram below). If the two containers are of unequal height, fit the

spacer to the shorter container.

2. Hook the load binder hook at the bottom of the pole into the bottom corner casting, and

tension the load binder. This retains the top spacer to the container.

3. Fit the base connectors between the containers. Latch the handles by rotating them 90

degrees into the U shaped rubber retainer.
