TB0059 New Bellhousing & Coupling Arrangement for Standard Power Pack

The standard powerpack on the Steelbro sidelifter has been changed to incorporate a new bellhousing and pump coupling arrangement.

Models and Markets:

All Sidelifters with powerpacks in all markets affected.

Parts:

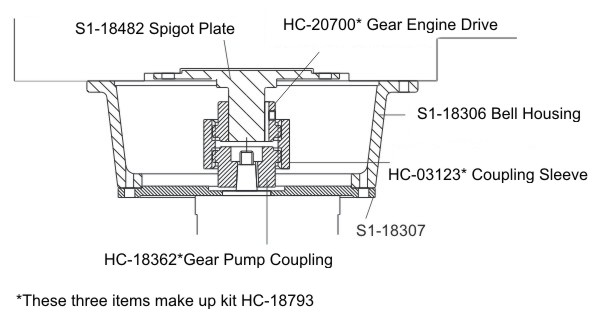

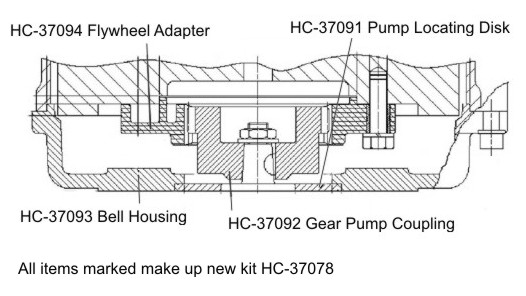

Kit HC-37078 replaces the following items:

• S1-18306
• S1-18307
• S1-18482
• HC-18793.

4 x S1-37549 also required for securing electrical cables around edge of bellhousing.

Backward Compatibility:

The entire old coupling arrangement can be replaced by the new set up. Details on how to do this are in Service Info K0005.

Benefits and Advantages to Change:

New bellhousing is self-locating onto the engine body which will reduce the possibility of issues with coupling caused by misalignment, and simplifies assembly/service.
