TB0054 New seals in the SB360 top arm, bottom arm and stab tilt cylinders

Description:

The seal kits in the top arm, bottom arm and stabiliser tilt cylinders on the SB360 have been modified. The valve block mounting base on the back end of the cylinders has also been changed to provide a visual indicator of which type of seals are contained.

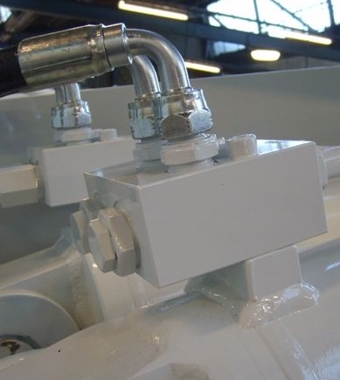

Old Style seals: Weld-on Valve Block Base (refer Fig 1)

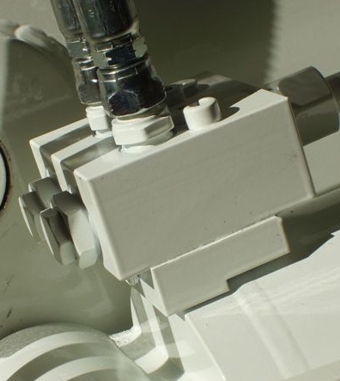

New Style seals: Bolt-on Valve Block Base (refer Fig 2)

Models and Markets:

SB360 – All markets

The first unit supplied with these cylinders was serial number SB7883, however not all SB360 units after this number will necessarily have these types of cylinders. Please compare each cylinder with the photographs below to confirm.

Spare Parts:

New Seal kits:

HC-37445 Kit Seal DAS Top Lift + Stab Tilt SB360

HC-37446 Kit Seal DAS Bottom Lift SB360

(To be used on new cylinders with bolt-on pad mounts only)
