TB0036 Lifting Chains - 16mm Introduced as Standard to some Models and Markets

21 Oct 2005 PDF File

Author: Greg Muirsmeath



Cross Ref: TB0037, TB0032

As of August 2005, 16mm Grade 100 Chains mounted with a Clevis type "G" Pin fitting will be standard for SB330 and SB360 Sidelifters in the following markets:

This 16mm chain has a 36 tonne weight rating.

The current 20mm Chains with the "G" pin hook will continue to be provided on the SB330 and SB360 to the following markets:

The SE400 and SB401 will be fitted with 20mm Chain with a Clevis type "G" pin in all markets with no 16mm option due to the 40 tonne weight rating for these models.

The SB121and SB361 will continue to use 16mm as before.

The SB300 and all units rated below it will also continue as before.

Lifting Lugs

All units but the SB121 using 16mm chain will have lifting lugs that are a similar design to those used with the 20mm chain. SB121's will continue to use the "Klaus" style of lug.

Chain Shorteners

All models designed for double stacking that will be using 16mm Chain have a new style of shortener. Instructions for the number of links looped by unit and for their use are listed below.

Model

# links for 16mm (counted from shortener)

#links for 20mm (counted from the hammerlock or clevis)

SB300

???

???

SB330

13

19

SB360

???

17

SB361

4

??

SB400

N/A



SB401



9

To shorten the chains, follow these instructions:

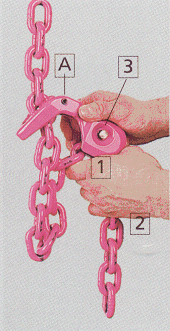

  • From, and including, the first free link below where the chain shortener is joined into the chain (A), count down the appropriate number of links (see table below)
  • Holding the chain so it is slack, slot the link into the pocket of the chain shortener
  • Pull it down to ensure it is seated properly. If required, depress the spring loaded securing bolt (3). Securing bolt locks automatically. Check locking
  • Check all four chains are equally shortened before lifting container.
  • To release the chain again, reverse the procedure, depressing securing bolt at the same time

16mm chain shorteners

Model

# links counted from shortener

SB300

13

SB330

13

SB360

11

SB361

11

Parts Ordering:

Part numbers for ordering are listed below:

Part Number

Description

LF-30246

Whole Chain Sling Kit

FA-30057

Pin Dowel Hardened M4 x 28mm

FA-25659

Pin Roll M8 x 40 Blk

FA-30059

Pin Roll M5 x 40 Blk

LF-34974

Lug Lifting Casting 16mm L/W Chain T2

LF-26200

Pin Lifting Hook Pre-Loaded 20mm Chain

LF-32489

Claw Shortening VIP VNMK - 16 Pt/No. 7100763

LF-31992

Chain 8S VIP 16 x 48 Pt/No: 7103446

Benefits and Advantages of Change

A chain sling of 16mm Grade 100 chain is about 27% lighter than a chain sling of 20mm chain;
