25 Jun 2004 PDF File |
|
|
All NZ and Australian, and some Sth African Steelbro Sidelifters and Skeletal trailers will be fitted with Emax as standard EXCEPT for conduit models (dangerous goods).

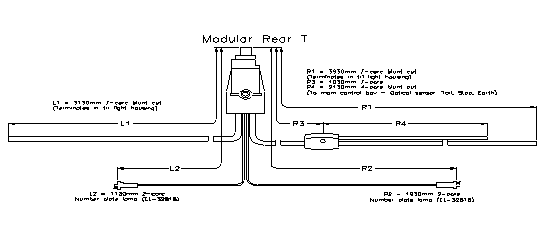

Emax is made up of a main harness running the length of the trailer that supplies the front and side marker lamps, and modular rear T connected to the main harness that supplies the tail, licence plate and rearmost side marker lamps.
The modular rear T for Sidelifters has had three versions of the 4-core cable (R4) supplying power to the main control cabinet. Approximate serial numbers below.
Main Harness |
Modular Rear T 4-Core (R4) |
|
Brown |
Brown |
Tail |
Join Black with Blue |
Red |
Aux (Reverse) |
|
Green |
N.A. |
White |
White |
Earth |
Main Harness |
Modular Rear T 4-Core (R4) |
||
Brown |
Brown |
Tail |
|
Red |
Red |
Stop |
|
Blue |
Green |
Reverse |
|
White |
White |
Earth |
|
Main Harness |
Modular Rear T 4-Core (R4) |
|
Black |
Green |
Optical Sensor |
White |
White |
Earth |
Red |
Red |
Stop |
Brown |
Brown |
Tail |
